Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the cup holder by pulling down from the rear of the floor console.

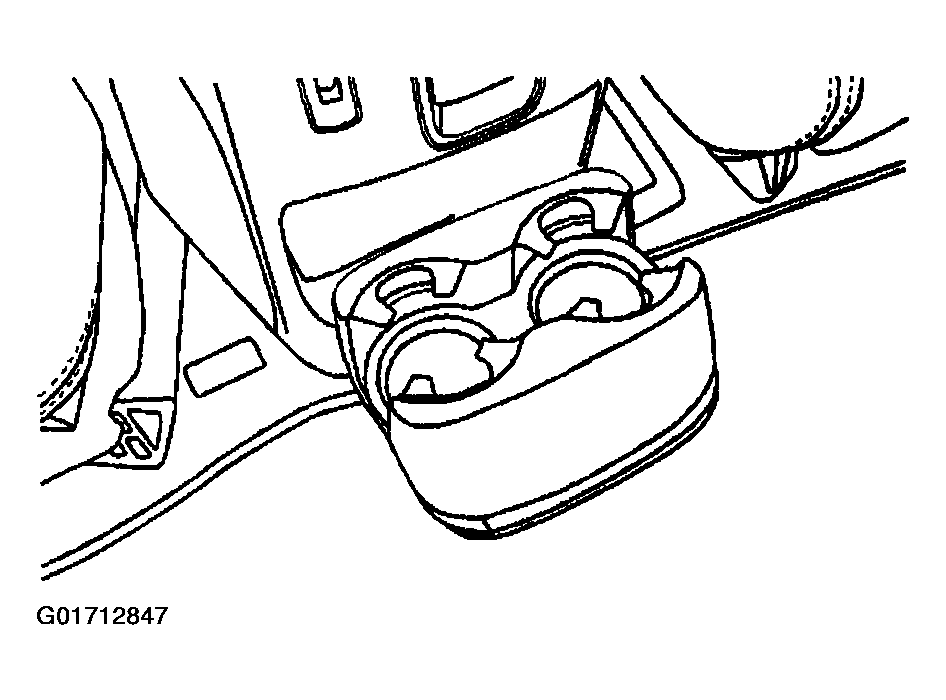

    Fig 1: Replacing Cupholder - Front Floor Console
    G01712847Courtesy of GENERAL MOTORS CORP.
  2. Remove the tabs (1) that connect the cupholder to the floor console by gently prying apart with a flat bladed tool.

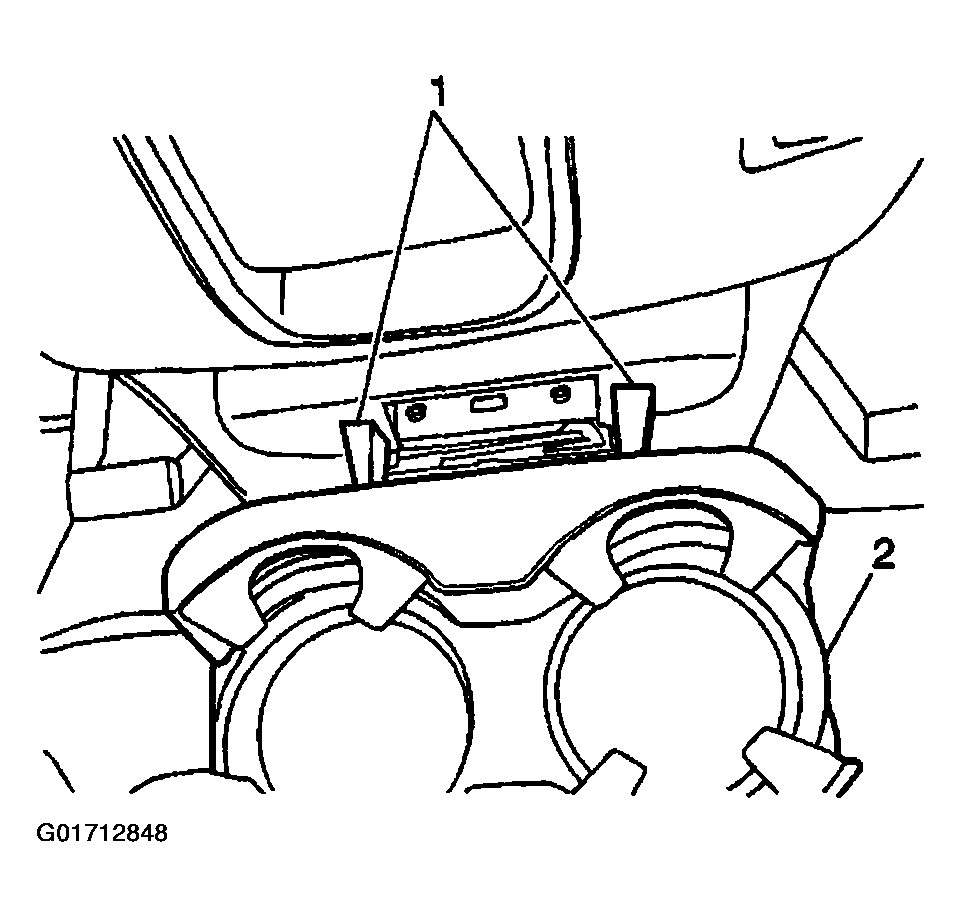

    3. Fig 2: Removing Cupholder Tabs
    G01712848Courtesy of GENERAL MOTORS CORP.
  3. Remove the cup holder from the vehicle.
