Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tilt the cupholder down.
  2. Remove the screws holding the cupholder to the instrument panel (I/P).
  3. Remove the cupholder from the vehicle.

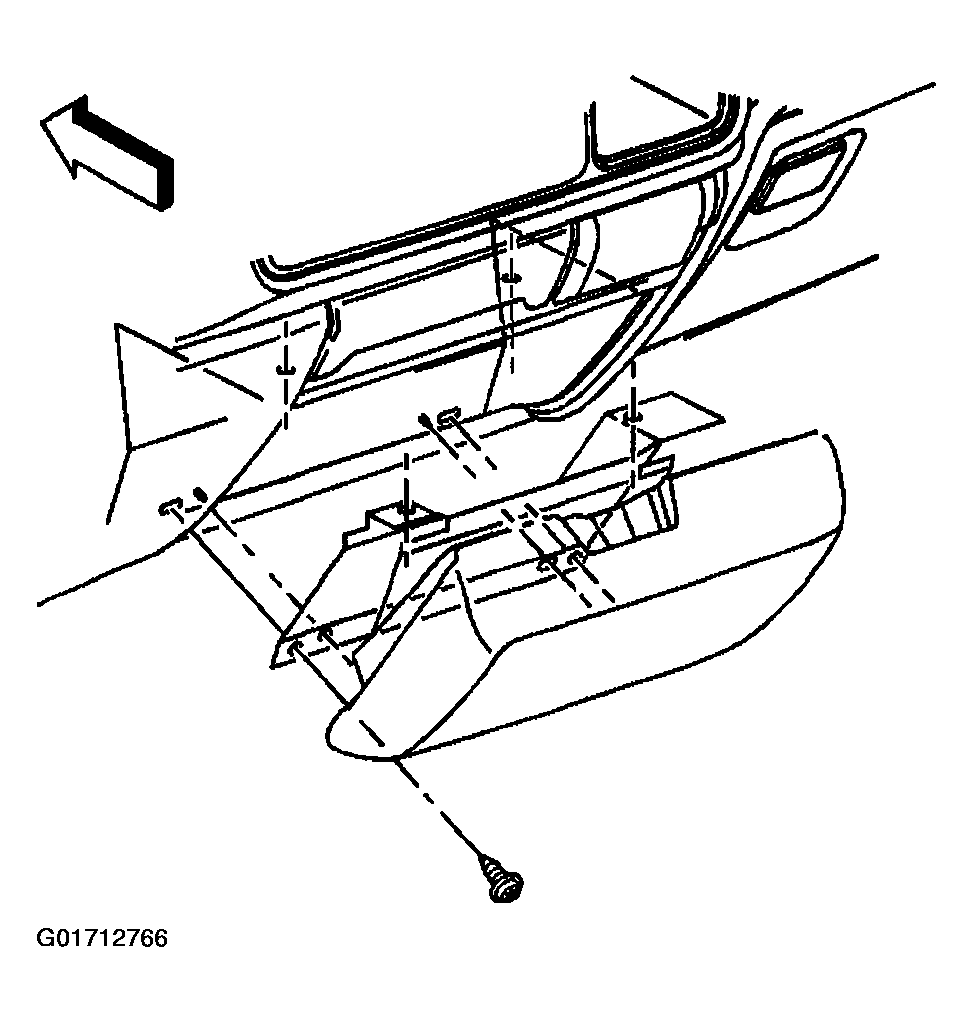

    Fig 1: Cupholder Replacement
    G01712766Courtesy of GENERAL MOTORS CORP.
