Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the center console.
  2. Remove the console storage bin screws.
  3. Remove the 4 bolts retaining the console to the bracket.
  4. Remove the rear cupholder by using a flat bladed tool to pry on one side out, if equipped.
  5. Remove the 2 retaining screws.
  6. Remove the console storage bin and lid assembly from the console.

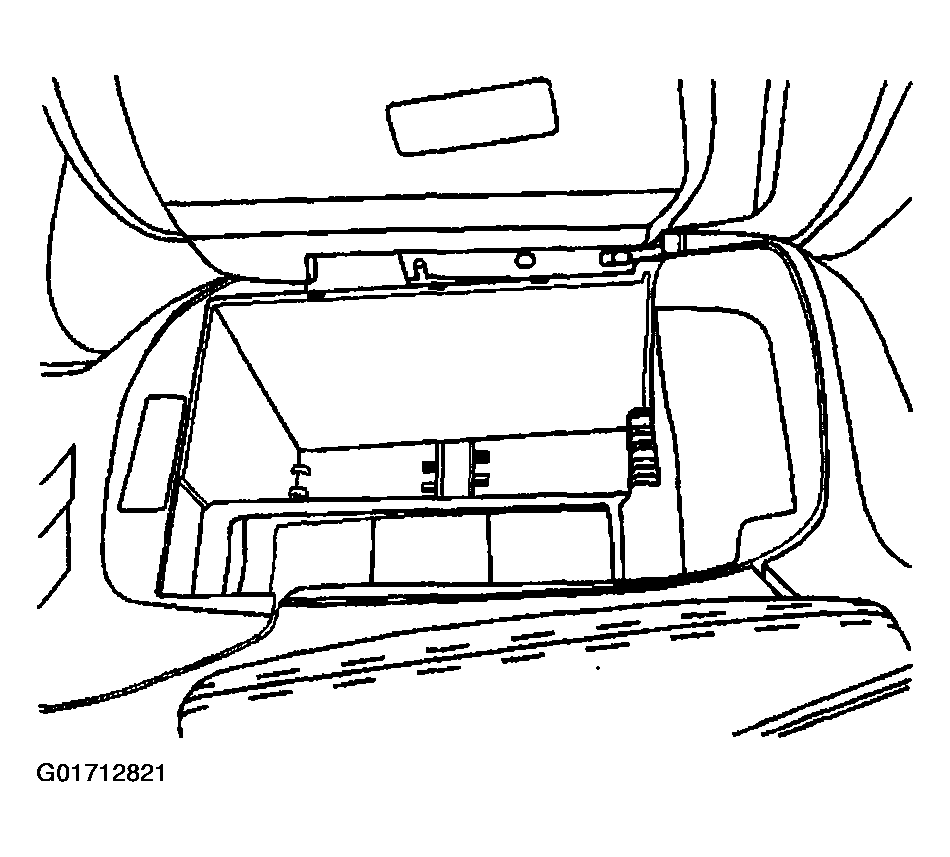

    Fig 1: Console Storage Bin Replacement
    G01712821Courtesy of GENERAL MOTORS CORP.
