Horns - Poor Tone

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

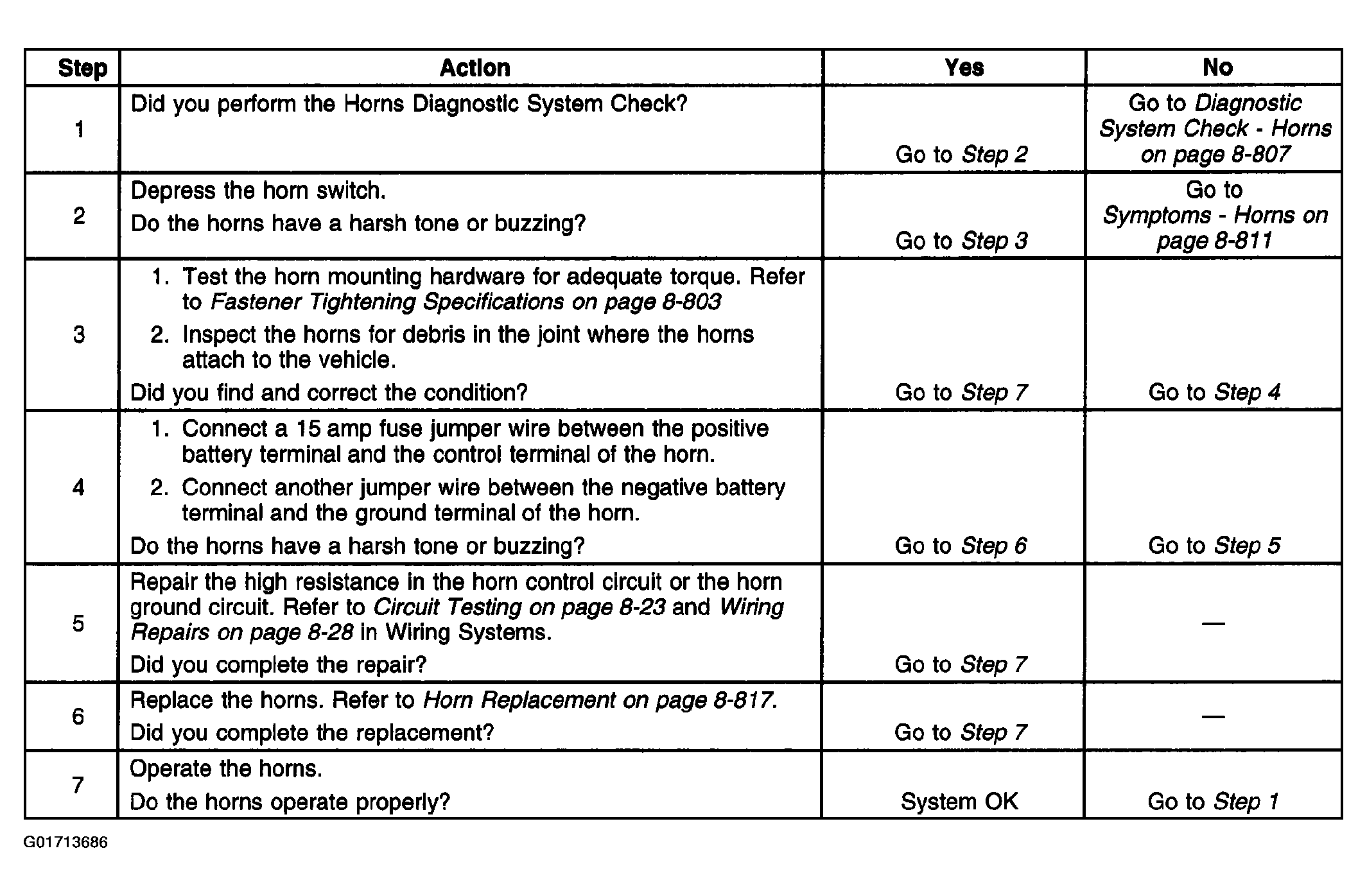

Fig 1: Horns - Poor Tone Diagnosis
G01713686Courtesy of GENERAL MOTORS CORP.
