Fog Lamps Inoperative - Rear (Export)

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

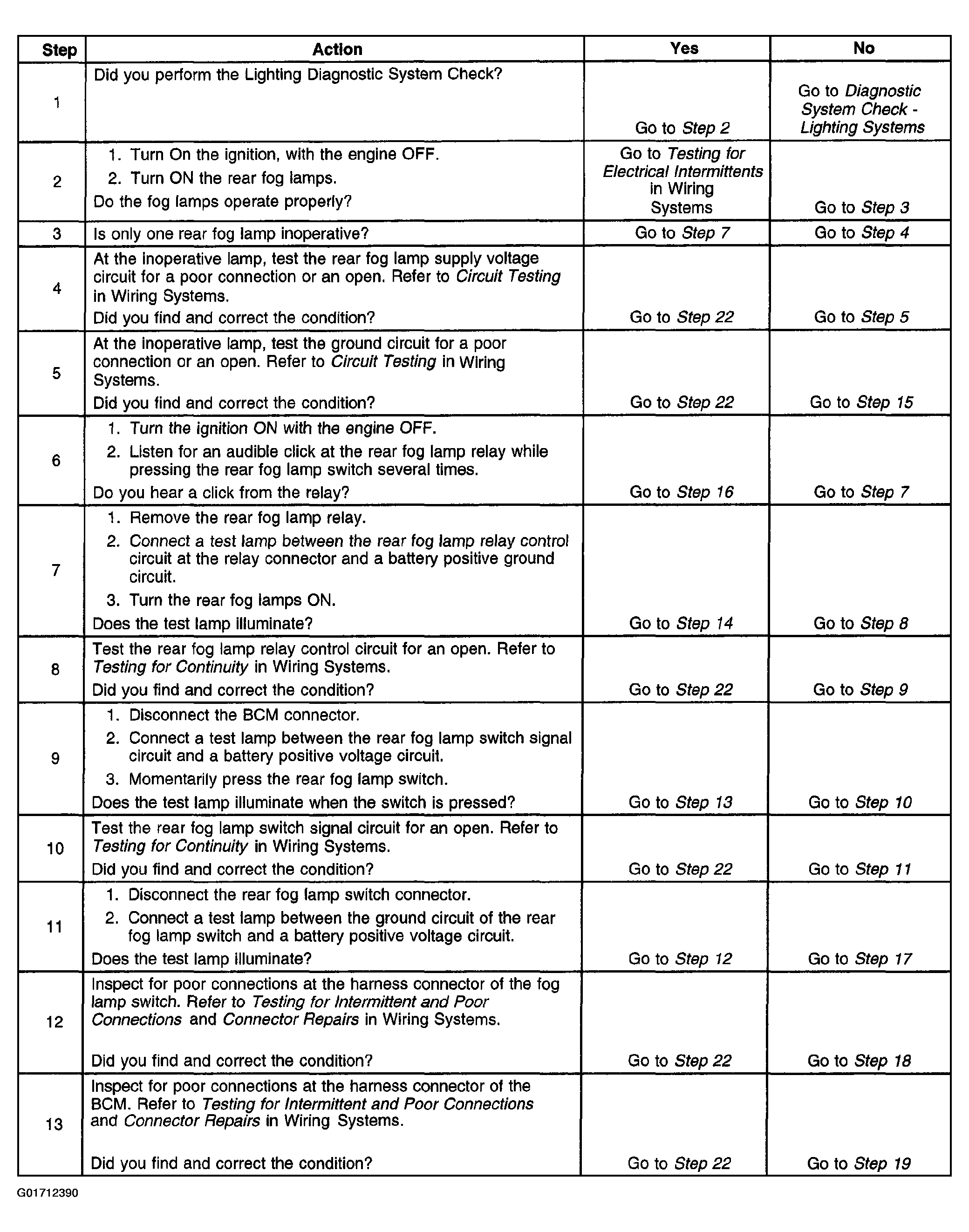

Fig 1: Fog Lamps Inoperative - Rear (Export) Diagnosis (Steps 1-13)
G01712390Courtesy of GENERAL MOTORS CORP.

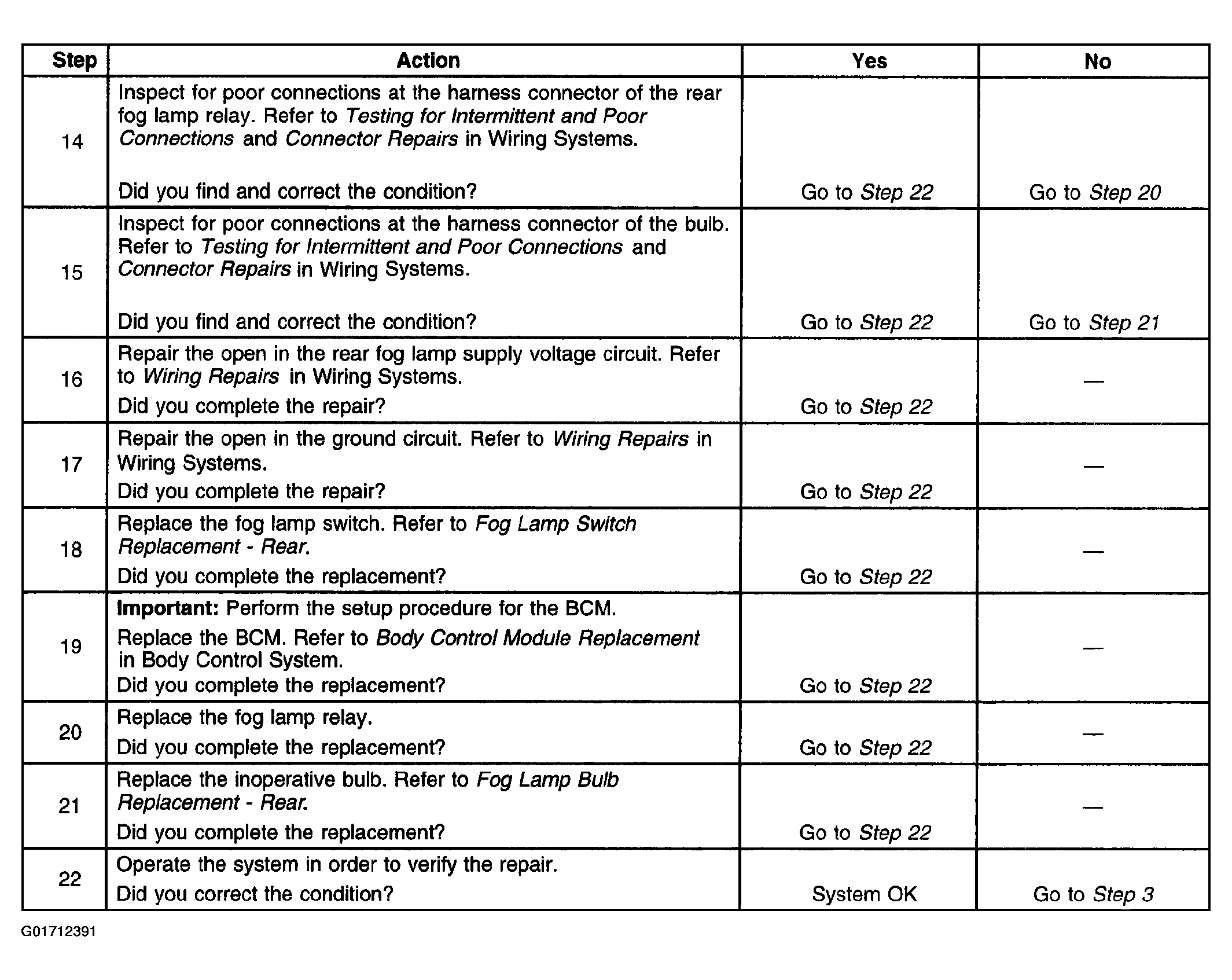

Fig 2: Fog Lamps Inoperative - Rear (Export) Diagnosis (Steps 14-22)
G01712391Courtesy of GENERAL MOTORS CORP.
