Daytime Running Lamps (DRL) Always On

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

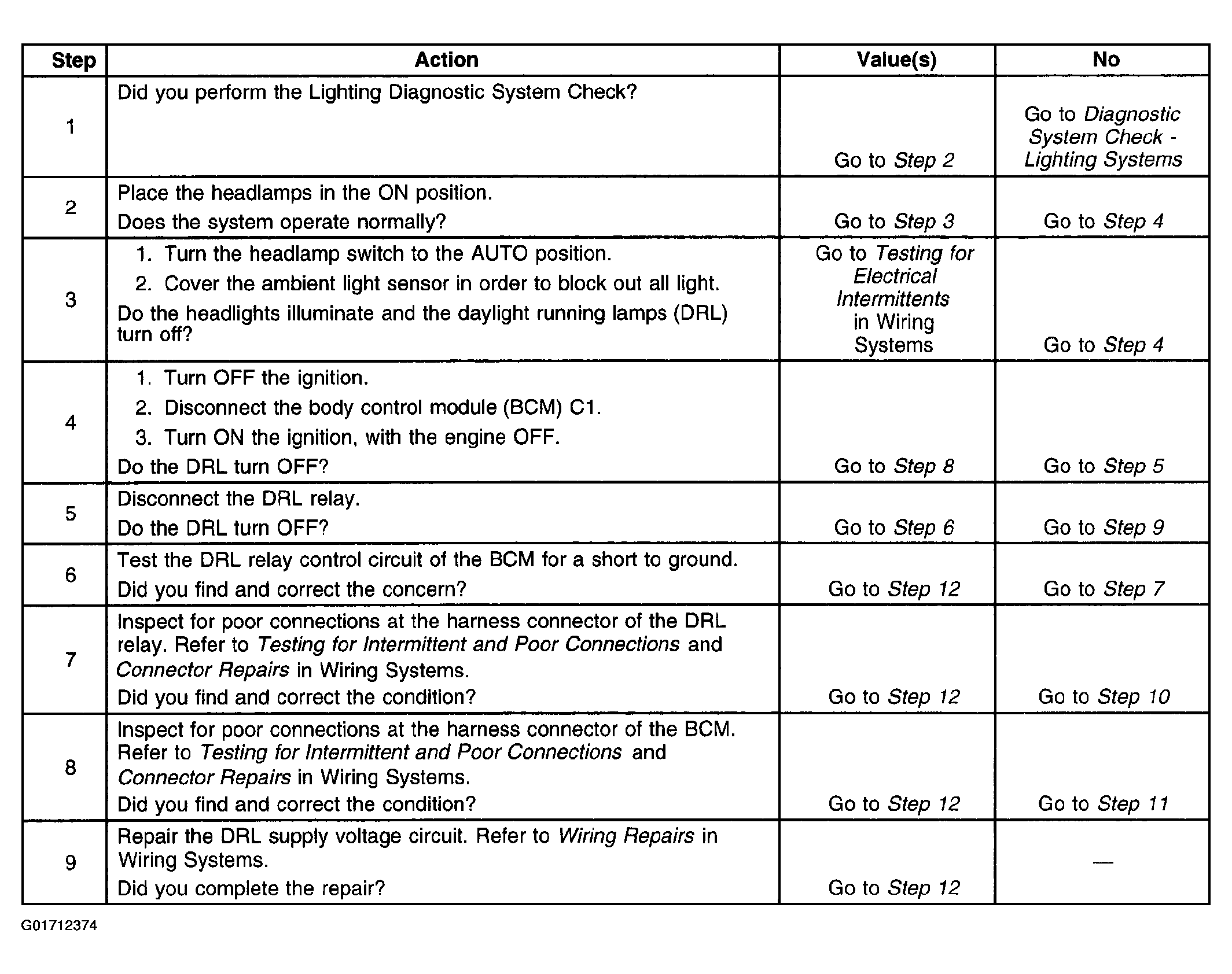

Fig 1: Daytime Running Lamps (DRL) Always On Diagnosis (Steps 1-9)
G01712374Courtesy of GENERAL MOTORS CORP.

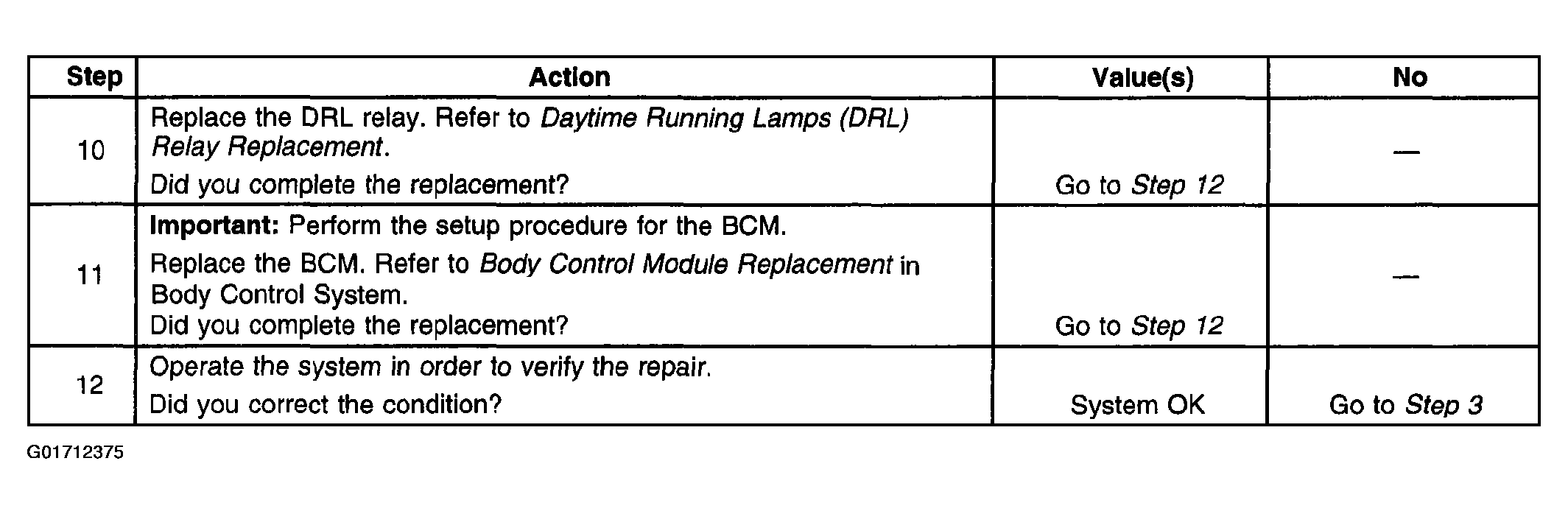

Fig 2: Daytime Running Lamps (DRL) Always On Diagnosis (Steps 10-12)
G01712375Courtesy of GENERAL MOTORS CORP.
