Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

If the location of the emblem/nameplate (2) has not been marked apply tape and use the following dimensions:
- Dimension "A" is 25.7 mm (1.01 in) from the horizontal edge (3).
- Dimension "B" is 109.5 mm (4.31 in) from the centerline of the rear compartment lid (1).
Fig 1: Identifying Emblem Installation Position
Courtesy of GENERAL MOTORS CORP.
Warm the surface with a heat gun J 25070 152 mm (6 in) from the surface to a minimum of 21°C (70°F).

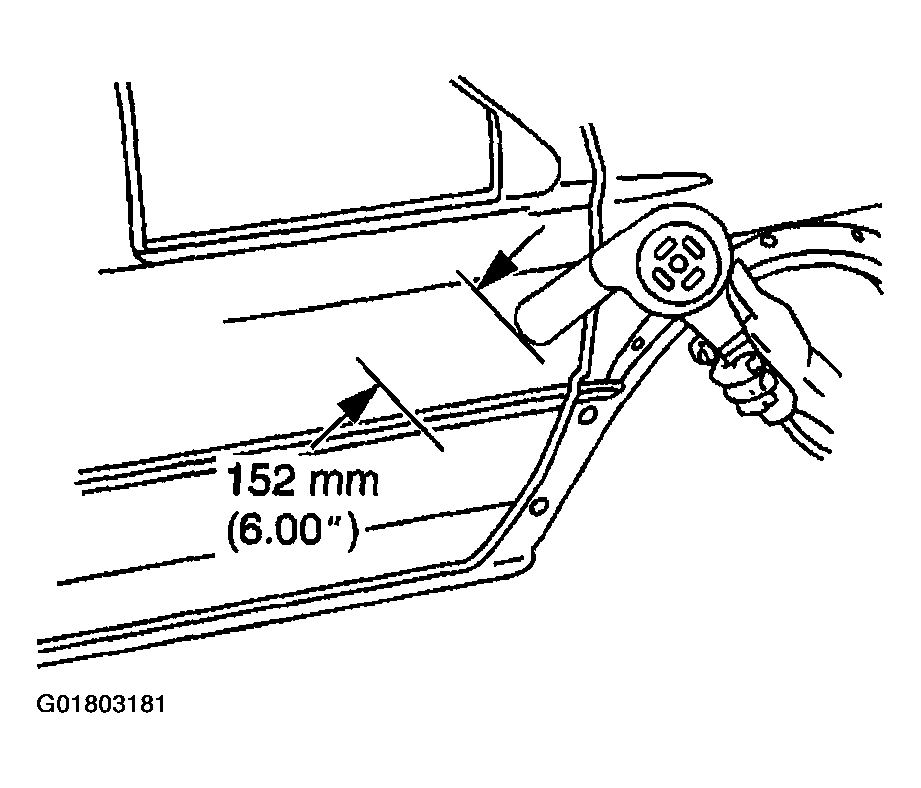

Fig 2: Warming Installation Surface
Courtesy of GENERAL MOTORS CORP.

Important: Do not touch the adhesive backing of the emblem/nameplate.
Remove the backing from the front end of the emblem/nameplate.
Press the emblem/nameplate (2) to the rear compartment lid surface while continuing to remove the backing (3).

Fig 3: Installing Emblem

Courtesy of GENERAL MOTORS CORP.

Hand roll the emblem/nameplate to the rear compartment lid to ensure proper adhesion.
Inspect the emblem/nameplate for bonding.
Remove the tape from the area around the emblem.
