Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Use the J 38778  in order to remove the push-in retainers from the front air seal.

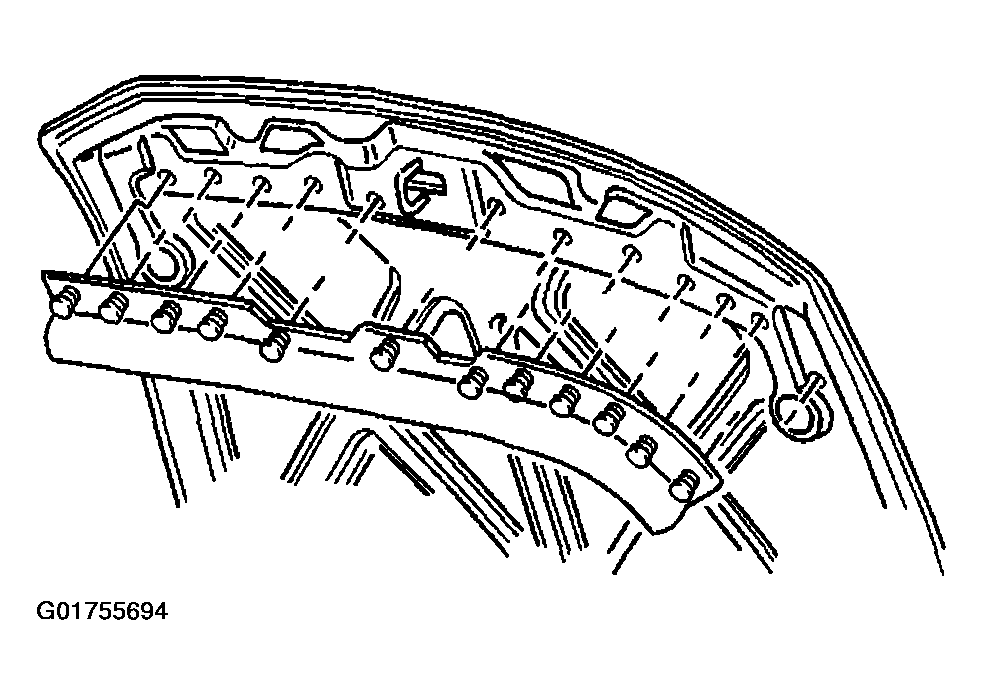

    Fig 1: Identifying Hood Front Seal
    G01755694Courtesy of GENERAL MOTORS CORP.
  3. Remove the front air seal from the hood.
