Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat belt retractor.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the rear seat belt retractor fastener.

    Tighten

    Tighten the fastener to 41 N.m (30 lb ft).

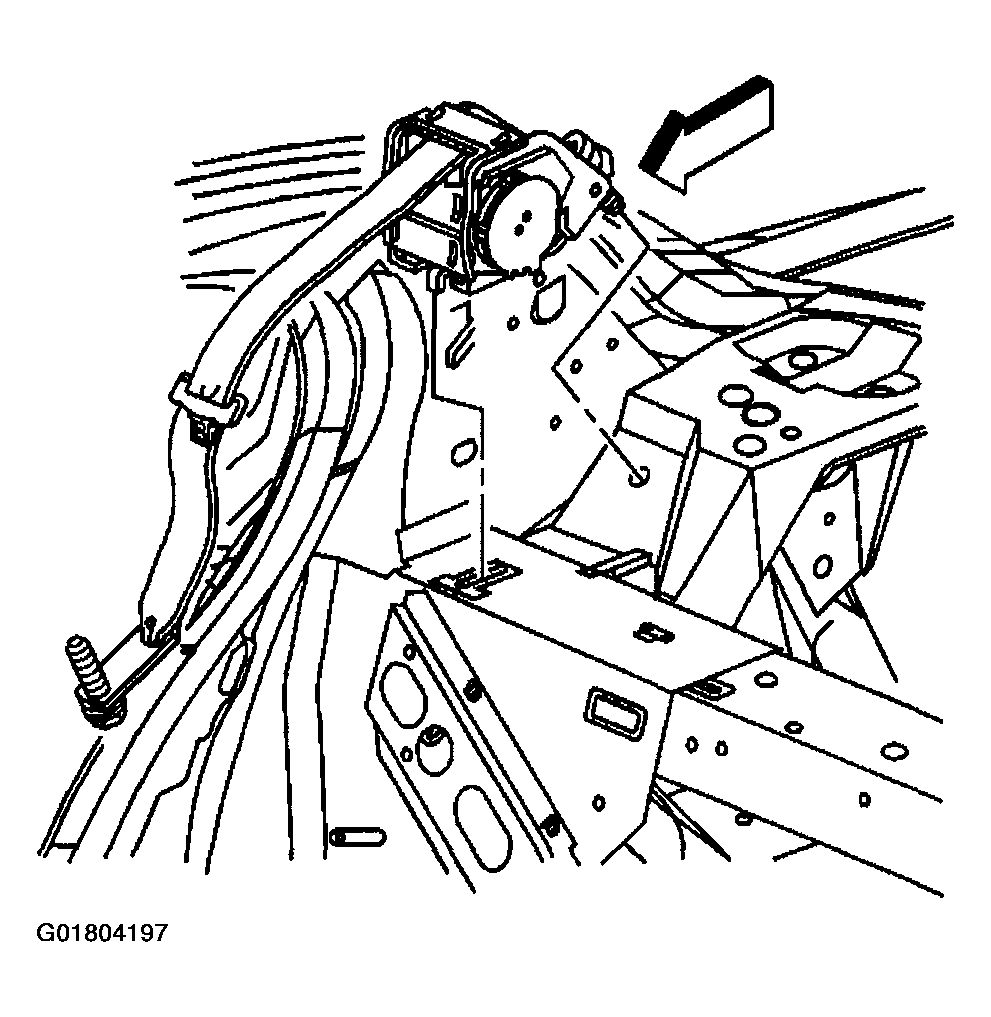

    Fig 1: Installing Rear Seat Belt Retractor
    G01804197Courtesy of GENERAL MOTORS CORP.
  3. Install the rear seat belt anchor fastener to the floor.

    Tighten

    Tighten the anchor fastener to 41 N.m (30 lb ft).

  4. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT -- REAR WINDOW SHELF in Interior Trim.
  5. Install the rear quarter trim panels. Refer to TRIM PANEL REPLACEMENT -- REAR QUARTER UPPER in Interior Trim.

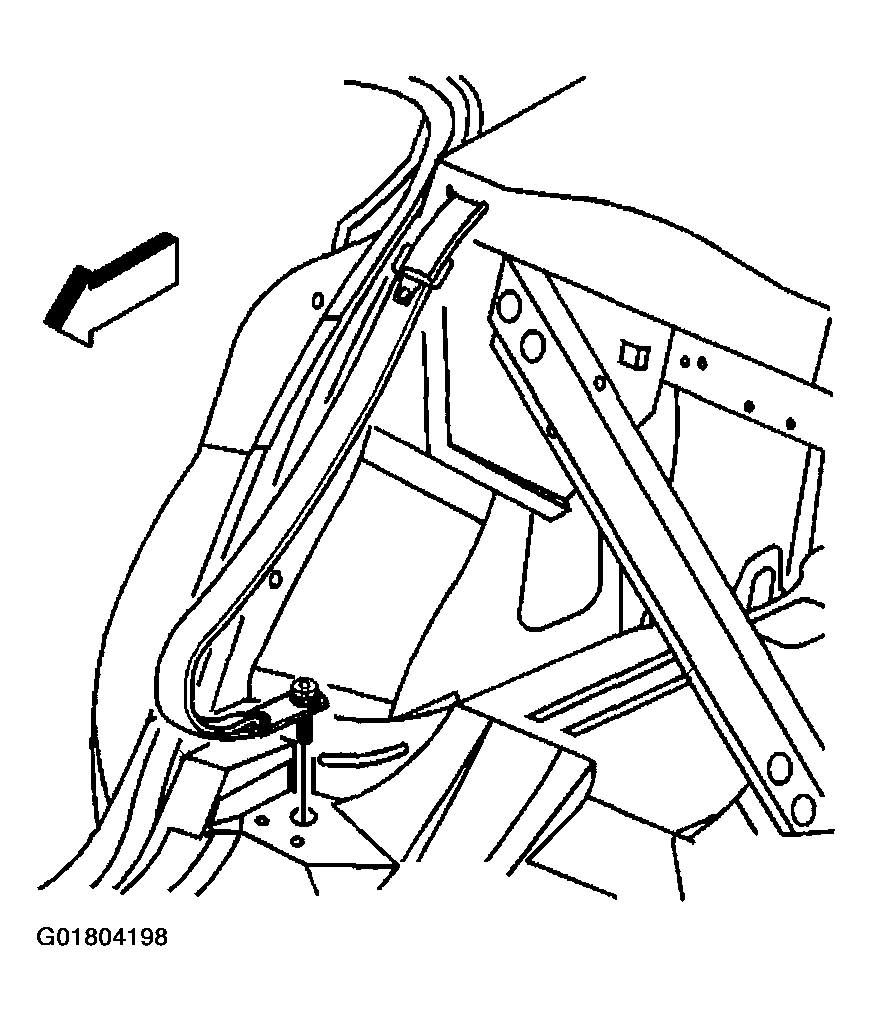

    Fig 2: Installing Rear Seat Belt Anchor Fastener
    G01804198Courtesy of GENERAL MOTORS CORP.
  6. Install the rear seat back. Refer to SEAT BACK REPLACEMENT -- REAR .
  7. Install the center shoulder belt anchor and right and left buckle fasteners.

    Tighten

    Tighten the center shoulder belt anchor and buckle fasteners to 41 N.m (30 lb ft).

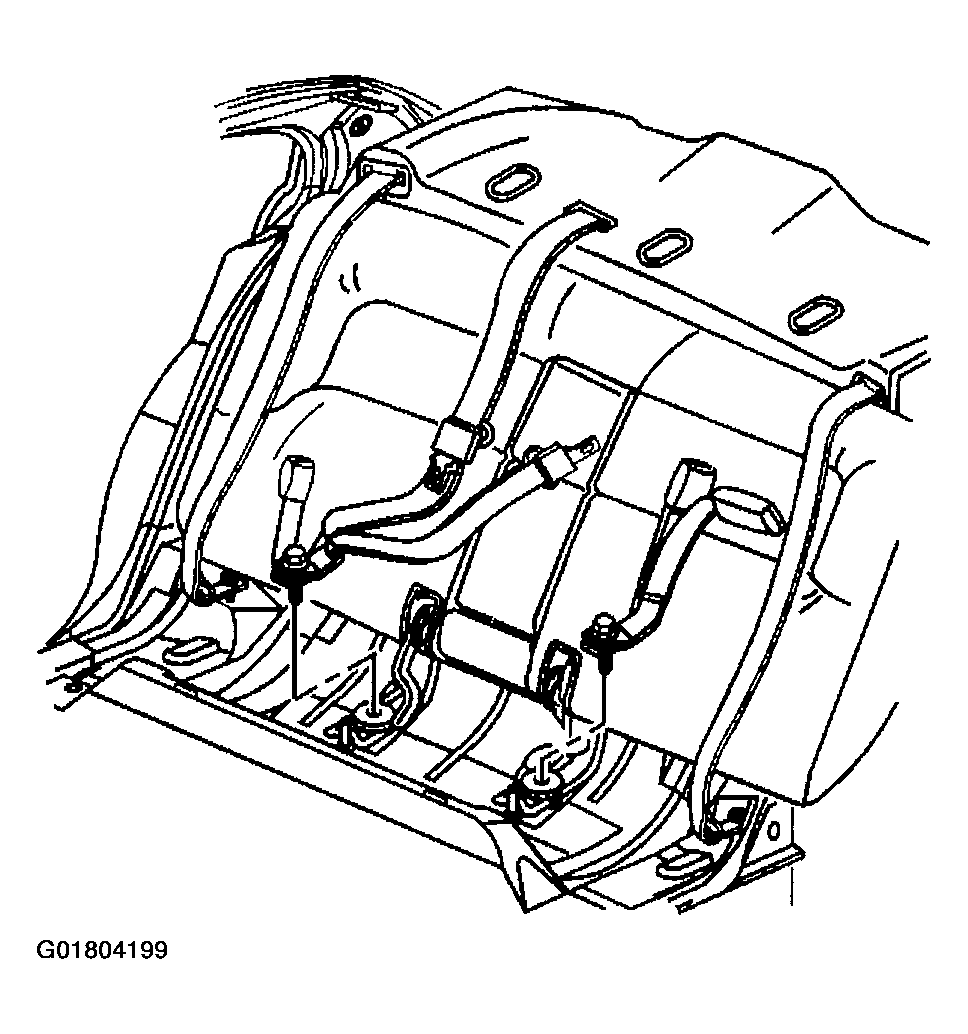

    8. Fig 3: Installing Center Shoulder Belt Anchor
    G01804199Courtesy of GENERAL MOTORS CORP.
  8. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .
