Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Install the center rear seat belt anchor plate under the rear seat back hold-down.
Ensure the center rear shoulder belt is not twisted.
CAUTION: Refer to FASTENER NOTICE .

Important: Assure that the fastener threads and fastener hole are free of any sealer patch material.

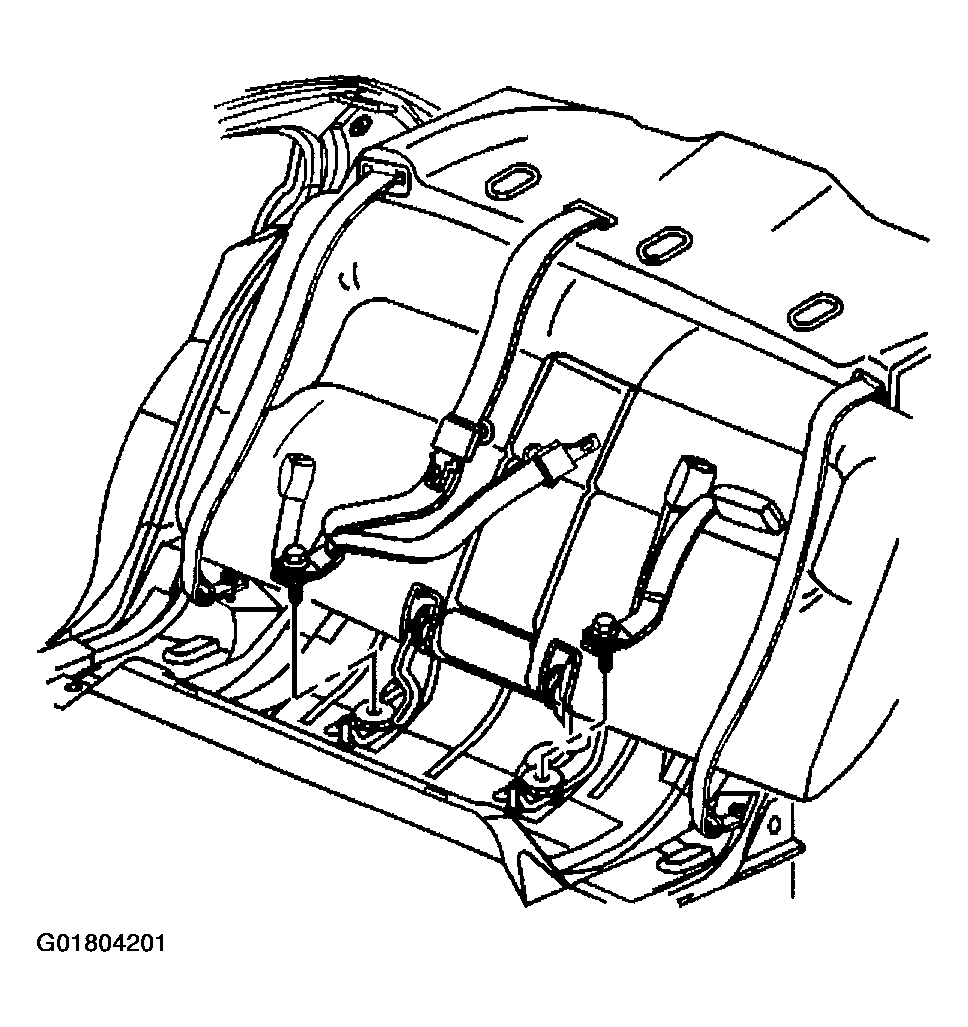

Fig 1: Installing Center Rear Seat Belt

Courtesy of GENERAL MOTORS CORP.

Install the center rear seat belt anchor fastener.
Tighten

Tighten the center rear seat belt anchor fastener to 41 N.m (32 lb ft).
Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .
