Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING SYSTEM .
  2. Remove the steering column bracket. Refer to BRACKET REPLACEMENT -- STEERING COLUMN .
  3. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle  .
  4. Remove the wire harness assembly from the wire restraint clips (1).
  5. Disconnect the wire connector.
    Fig 1: Removing Wire Harness Assembly
    G01581839Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the windshield wiper and washer switch assembly.
  7. Remove the windshield wiper and washer switch assembly in the following manner.
    • Press on the locking tabs of the windshield wiper and washer switch assembly.
    • Pull the windshield wiper and washer switch assembly out of the switch mounting bracket.

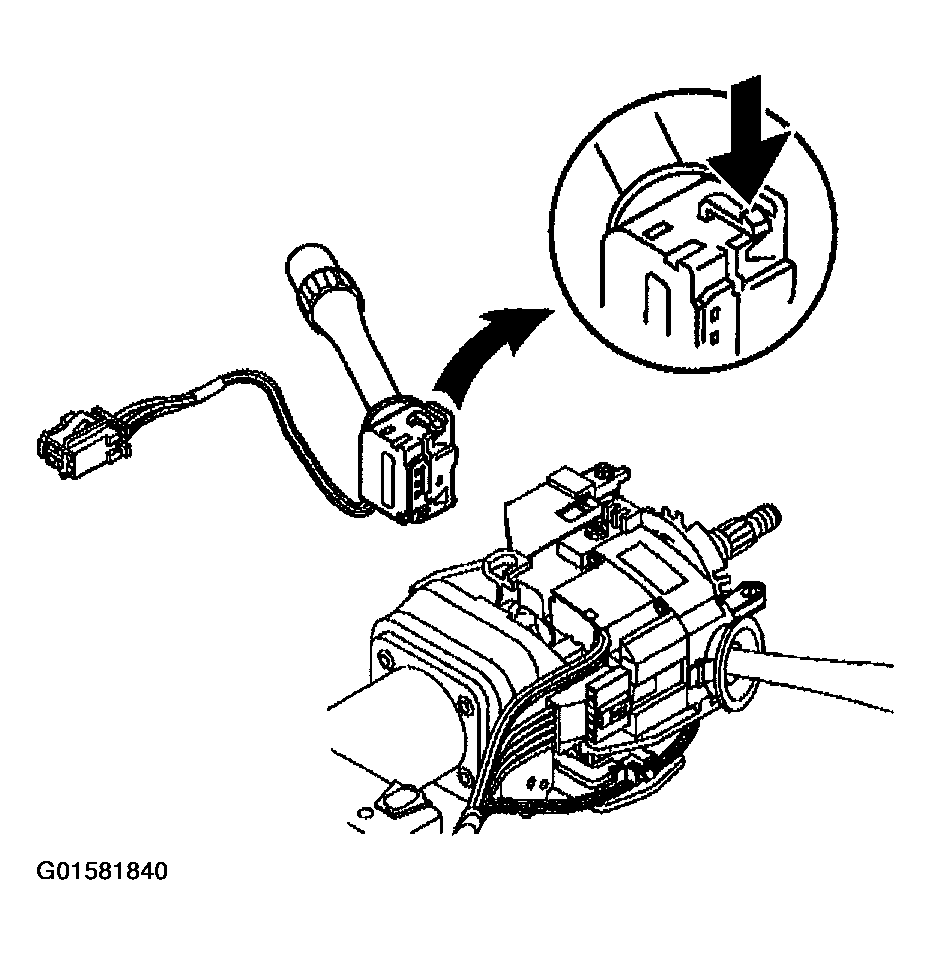

    Fig 2: Removing Windshield Wiper & Washer Switch Assembly
    G01581840Courtesy of GENERAL MOTORS CORP.
