Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Important:  The thermostat is not serviceable separately. The water pump inlet and thermostat must be replaced as an assembly.

  1. Remove the radiator outlet hose.
  2. Remove the water pump inlet bolts.
  3. Remove the water pump inlet and thermostat from the water pump.

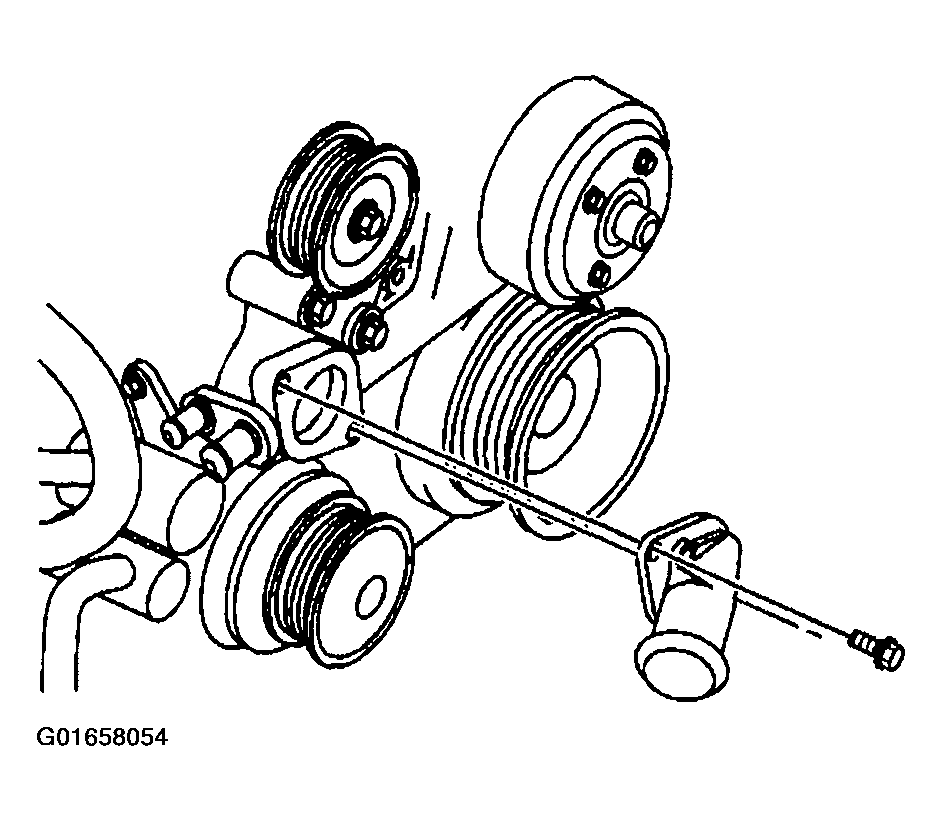

    Fig 1: Thermostat Housing
    G01658054Courtesy of GENERAL MOTORS CORP.
