Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The optional oil cooler is either an integral part of the radiator or a separate unit placed in front of the radiator. The cooler lines and hoses are serviceable.

Disengage the plastic caps from the quick connect fittings. Pull the caps back along the pipe.
Hold one leg of the retaining clip.
Using a small pick-type tool or bent screwdriver, gently pry the other end of the retaining clip from the quick connect fitting.
Rotate the retaining clip out of the quick connect fitting. Remove the retaining clip completely.

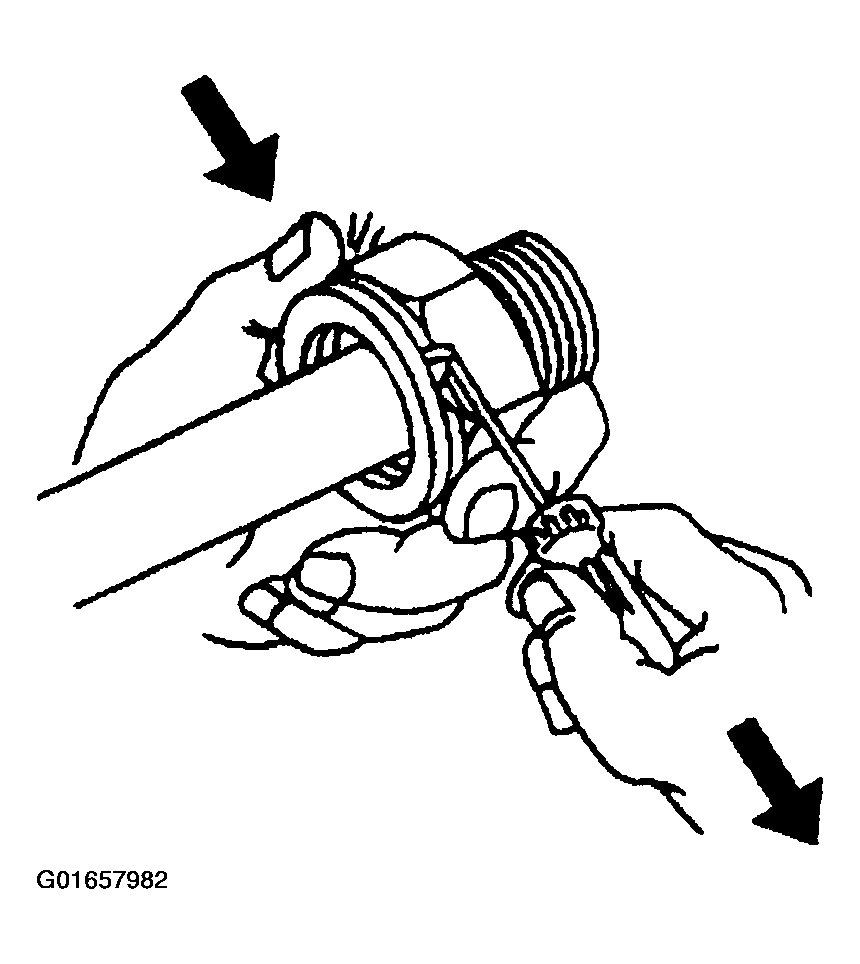

Fig 1: Quick Connect Fitting Retaining Clip

Courtesy of GENERAL MOTORS CORP.

Discard the OLD retaining clip.
If equipped with a 6.0L engine, perform the following:
1. 6.1. Open the oil cooler hose clip located on the lower fan shroud.
2. 6.2. Remove the oil cooler hoses from the clip.
3. 6.3. Gently, pull the oil cooler pipe fittings straight out from the radiator quick connect fittings.
4. 6.4. Raise and suitably support the vehicle.

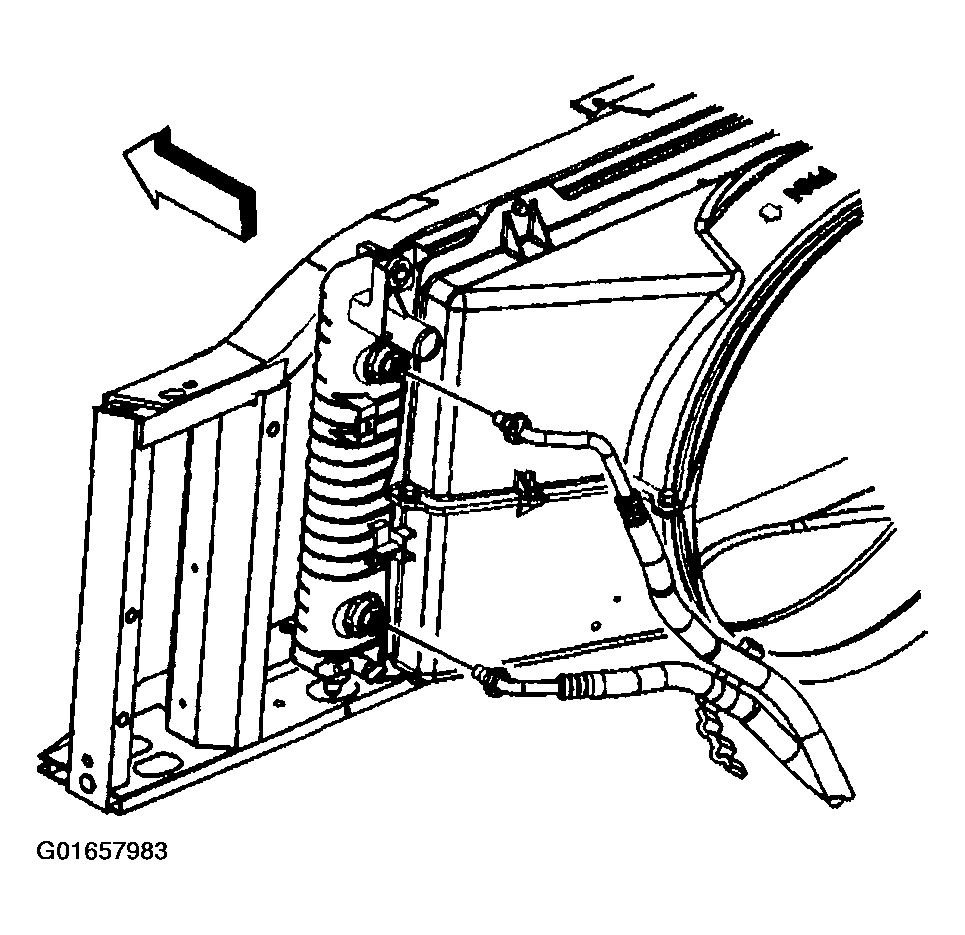

Fig 2: Oil Cooler Hoses - 6.0L
Courtesy of GENERAL MOTORS CORP.
If equipped with a 8.1L engine, perform the following:
1. 7.1. Remove the oil cooler hoses from the clip.
2. 7.2. Gently, pull the oil cooler pipe fittings straight out from the radiator quick connect fittings.
3. 7.3. Raise and suitably support the vehicle.

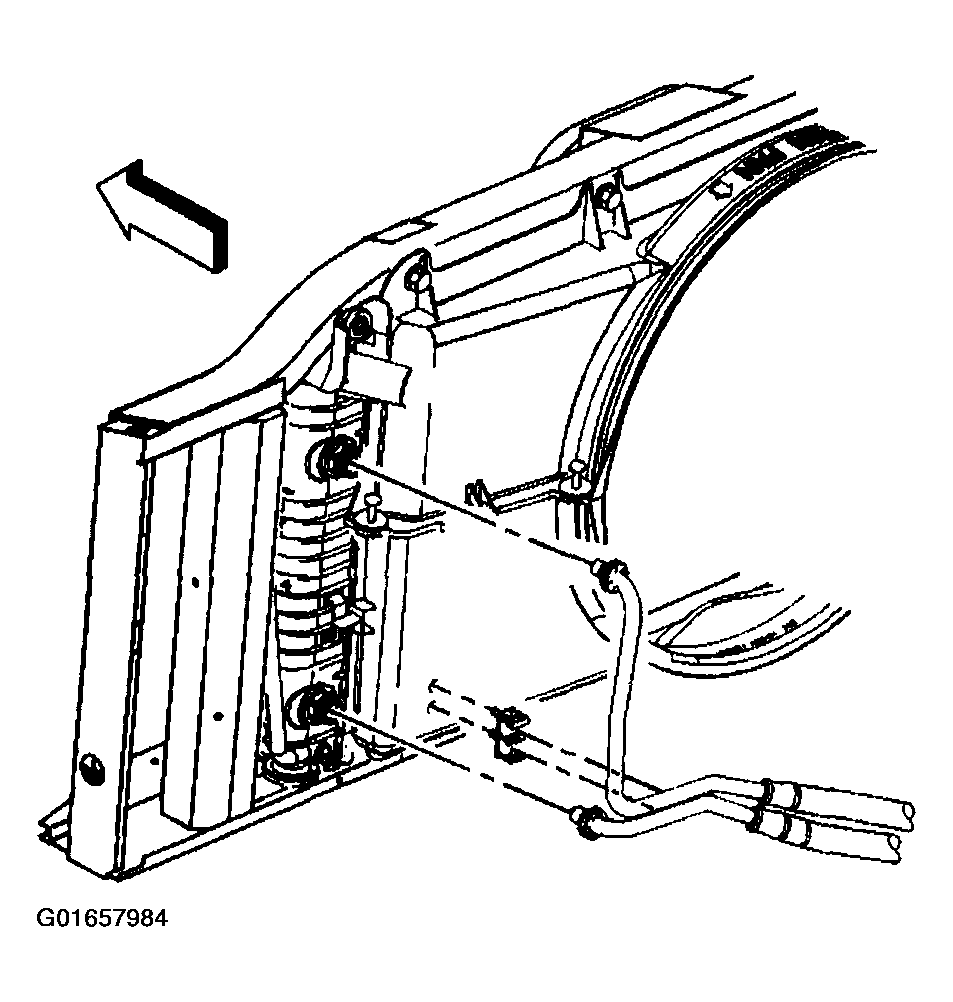

Fig 3: Oil Cooler Hoses - 8.1L
Courtesy of GENERAL MOTORS CORP.
If equipped, remove the engine shield bolts.
Remove the engine shield.

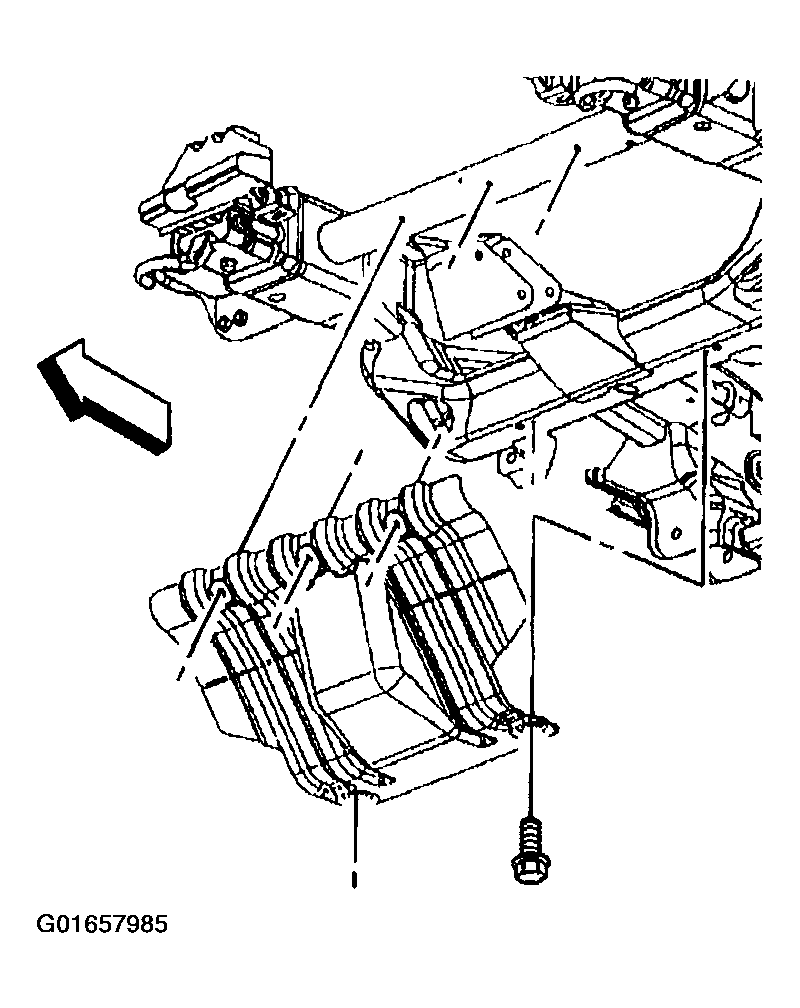

Fig 4: Engine Shield
Courtesy of GENERAL MOTORS CORP.
If equipped with the a 6.0L engine, perform the following:
1. 10.1. Remove the oil cooler hose bracket bolt (1).
2. 10.2. Remove the oil cooler hose adapter bolts (2).
3. 10.3. Remove the oil cooler hose assembly and gasket. Discard the gasket.
4. 10.4. Inspect the fittings, connectors and cooler hoses for damage or distortion.

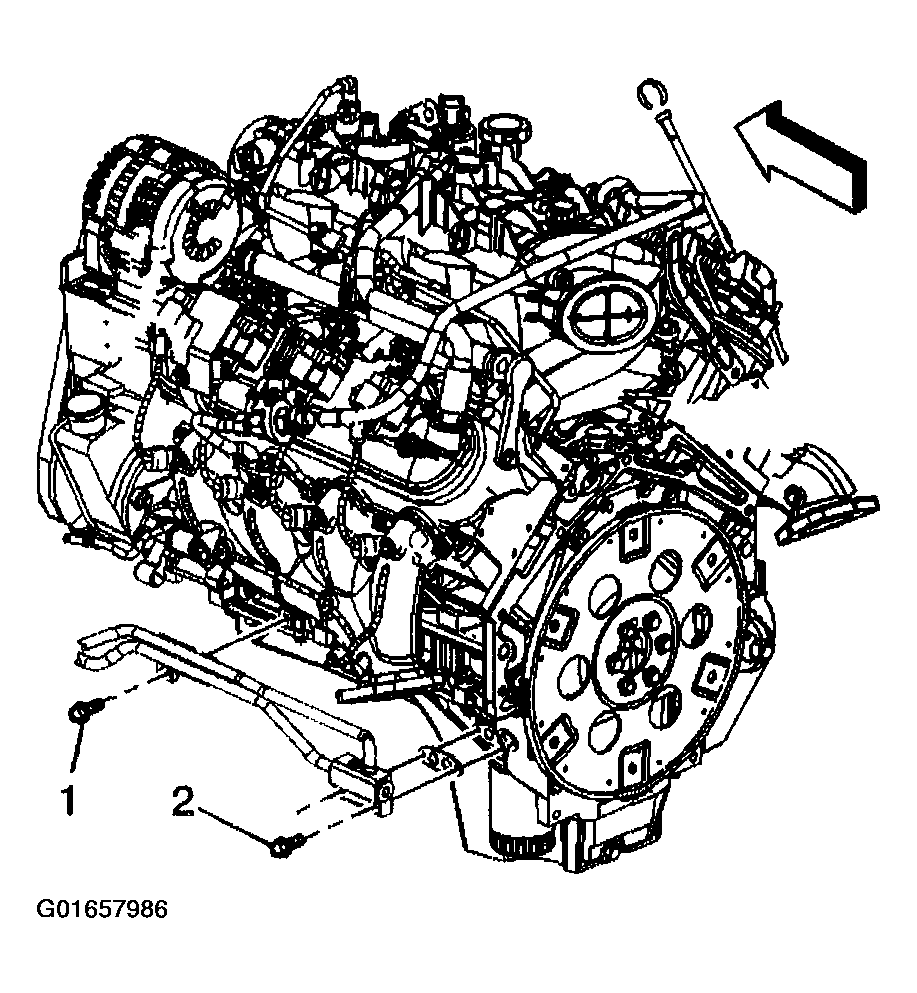

  Fig 5: Oil Cooler Hoses - 6.0L
  Courtesy of GENERAL MOTORS CORP.
If equipped with a 8.1L engine, perform the following:
1. 11.1. Remove the oil cooler hose bracket bolt.
2. 11.2. Disconnect the quick connect fittings (1) at the engine.
3. 11.3. Remove the oil cooler hose assembly. Discard the gasket.
4. 11.4. Inspect the fittings, connectors and cooler hoses for damage or distortion.

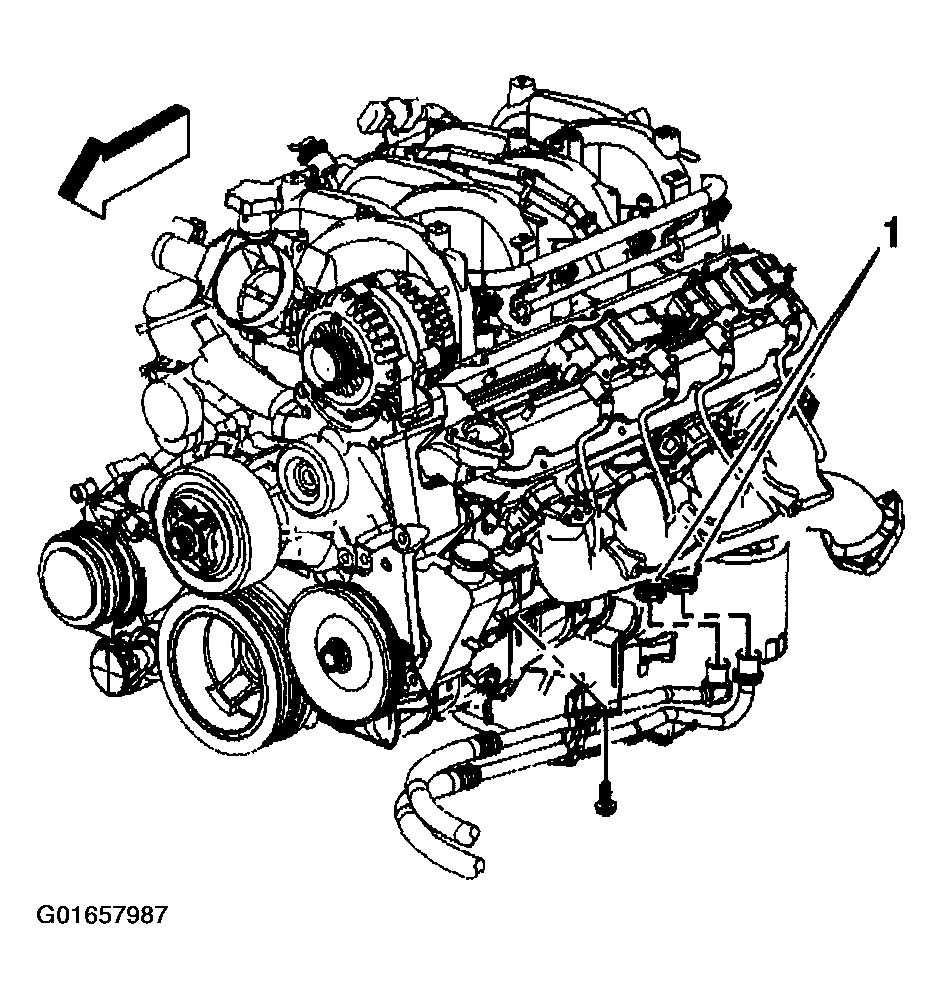

  Fig 6: Oil Cooler Hose Assembly - 8.1L
  Courtesy of GENERAL MOTORS CORP.
