Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

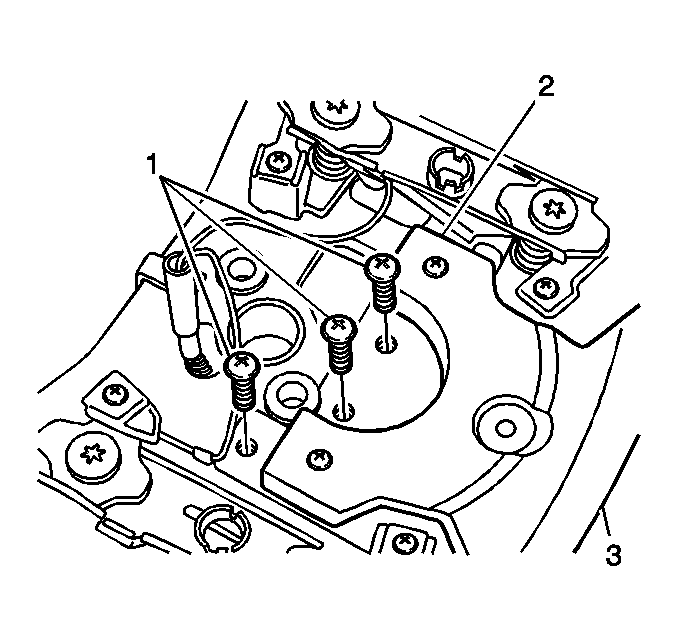

    Fig 1: Mass Damper, Steering Wheel & Screws
    GM780090Courtesy of GENERAL MOTORS CORP.
  1. Install the mass damper (2) to the steering wheel.
    2. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws (1) retaining the mass damper to the steering wheel.

    Tighten:  tighten the mass damper mounting screws to 3 N.m (25 lb in).

  3. Install the inflator module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) in SIR.
  4. Enable the SIR system. Refer to ACTIVATING SYSTEM in SIR.
