Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: If the snap on/off feature on the trim covers was damaged during the removal procedure, you must use screws for the installation procedure.
    Fig 1: Upper Trim Cover & Screws
    GM415299Courtesy of GENERAL MOTORS CORP.
  1. Install the upper steering column trim cover (2).
    2. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. If necessary, install the screw that retains the upper steering column trim cover to the steering column.

    Tighten:  Tighten the upper steering column trim cover retaining screws to 1.5 N.m (13 lb in).

    3. Fig 2: View Of Lower And Upper Steering Column Covers
    GM328807Courtesy of GENERAL MOTORS CORP.
  3. Install the lower steering column trim cover.
  4. Match the tabs slots onto the lower cover with the locking tabs on the upper cover.
  5. Tilt the lower shroud up.
  6. If no screws were present, gently snap the lower trim cover to the upper trim cover.

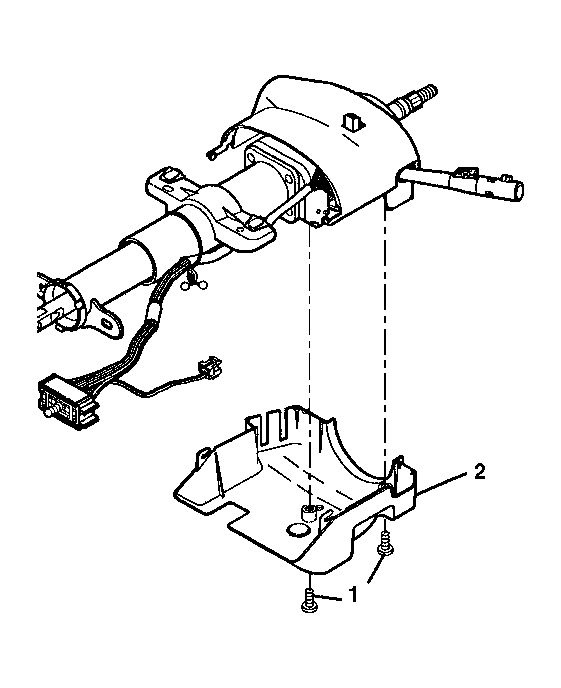

    7. Fig 3: Lower Trim & Pan Head Tapping Screws
    GM415298Courtesy of GENERAL MOTORS CORP.
  7. If necessary, install the screws (1) that retain the lower steering column trim cover to the steering column.

    Tighten:  Tighten the lower steering column trim cover retaining screws to 3.5 N.m (31 lb in).

  8. Install the tilt lever to the steering column. Refer to Tilt Lever Replacement - On Vehicle .
  9. Install the steering wheel. Refer to Steering Wheel Replacement .
  10. Enable the SIR system. Refer to ACTIVATING SYSTEM in SIR.
