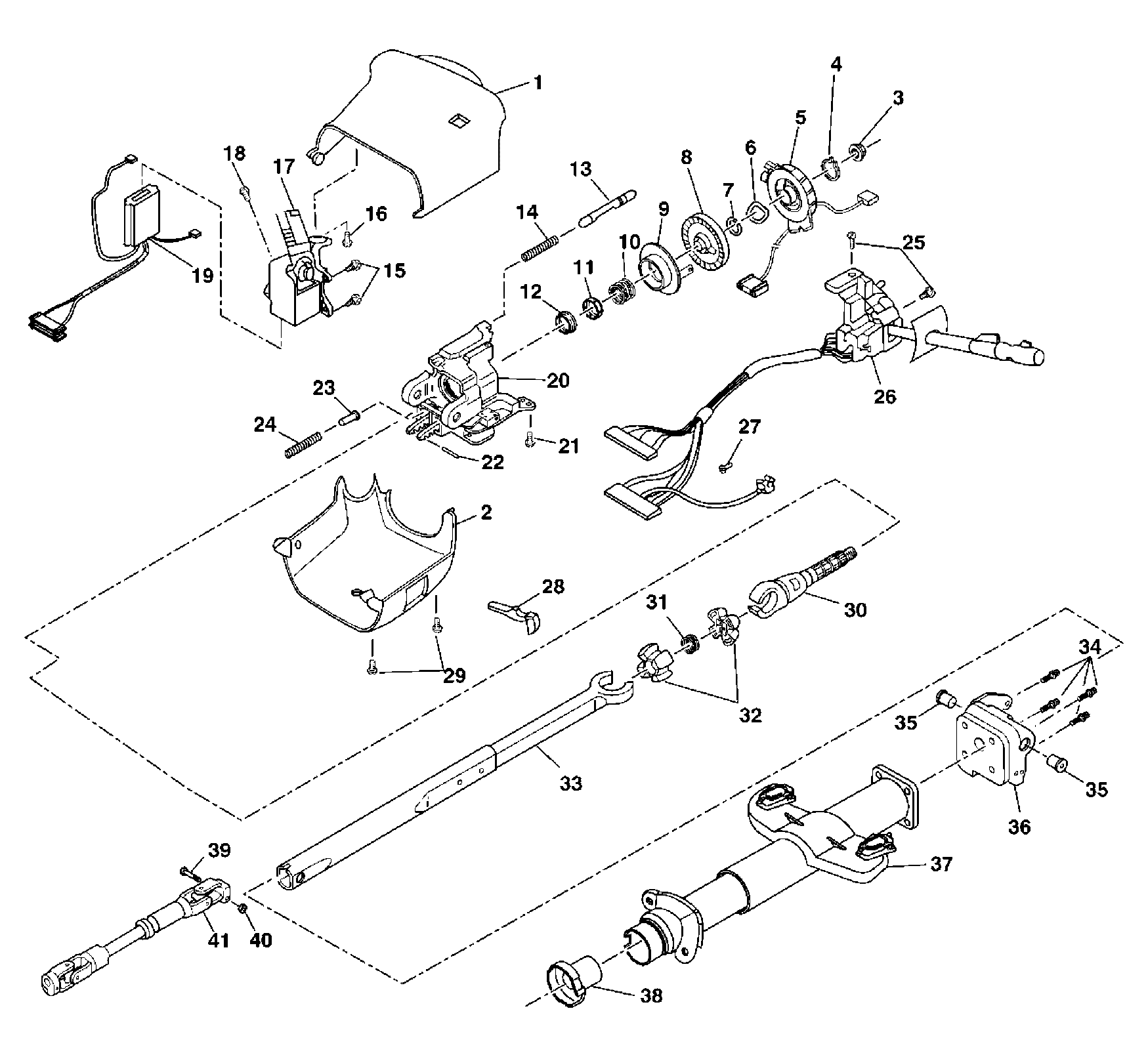

Steering Column Disassembled View (Floor Shift Sphere Joint)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Upper Trim Cover |
| 2 | Lower Trim Cover |
| 3 | Flanged Prevailing Torque Nut |
| 4 | Retaining Ring |
| 5 | Inflatable Restraint Steering Wheel Module Coil |
| 6 | Wave Washer |
| 7 | Bearing Retainer |
| 8 | Shaft Lock Shield Assembly |
| 9 | Turn Signal Cancel Cam Assembly |
| 10 | Upper Bearing Spring |
| 11 | Upper Bearing Inner Race Seat |
| 12 | Inner Race |
| 13 | Lock Bolt |
| 14 | Lock Bolt Spring |
| 15 | Pan Head Tapping Screw |
| 16 | TORX® Head Screw |
| 17 | Ignition Lock Cylinder Case Assembly |
| 18 | Pan Head Tapping Screw |
| 19 | Ignition and Key Alarm Switch Assembly |
| 20 | Steering Column Tilt Head Assembly |
| 21 | TORX® Head Screw |
| 22 | Release Lever Pin |
| 23 | Spring Guide |
| 24 | Tilt Spring |
| 25 | Pan Head Tapping Screw |
| 26 | Turn Signal and Multifunction Switch Assembly |
| 27 | Axial Position Assurance Connector |
| 28 | Tilt Lever Assembly |
| 29 | Pan Head Tapping Screw |
| 30 | Race and Upper Shaft Assembly |
| 31 | Joint Preload Spring |
| 32 | Centering Sphere |
| 33 | Lower Steering Shaft Assembly |
| 34 | TORX® Head Screw |
| 35 | Pivot Pin |
| 35 | Pivot Pin |
| 36 | Steering Column Support Assembly |
| 37 | Steering Column Jacket Assembly |
| 38 | Adapter and Bearing Assembly |
| 39 | Bolt and Retainer Assembly |
| 40 | Hexagon Head Nut |
| 41 | Intermediate Shaft Assembly |
