Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the tire and the wheel.
  3. Relieve the tension on the park brake cables by loosening the nut at the equalizer.
  4. Remove the park brake cable from the park brake actuator lever.

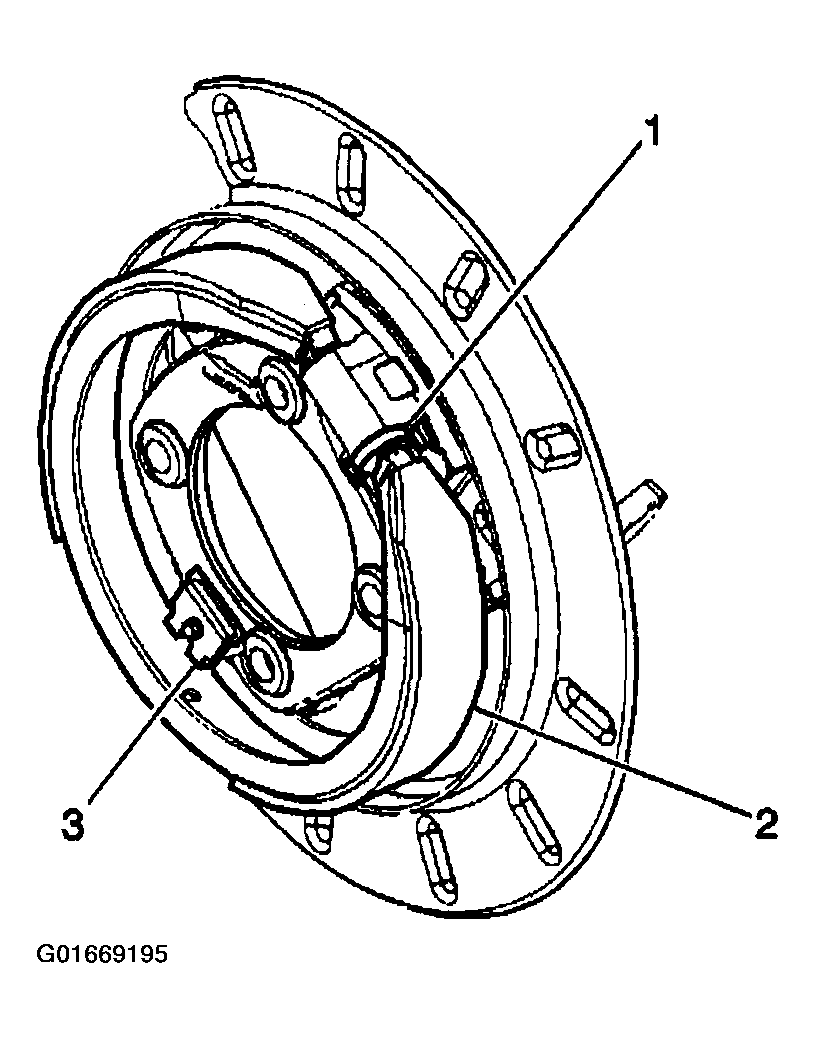

    Fig 1: Park Brake Actuator Lever
    G01669195Courtesy of GENERAL MOTORS CORP.
  5. Remove the rotor. Refer to BRAKE ROTOR .
  6. Turn the adjustment screw (1) to the fully home position in the notched adjustment nut.
  7. Remove the park brake shoe assembly from the backing plate by removing the tips from the slots and sliding the shoe (2) towards the retaining spring (3) until the shoe disengages from the spring.
  8. Remove the park brake shoe assembly from the vehicle by placing one of the open ends of the shoe over the axle flange and rotating the shoe until it has cleared the flange.
