Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the tire and the wheel.
  3. Relieve the tension on the park brake cables by loosening the nut at the equalizer.
  4. Remove the park brake cable from the park brake actuator lever.

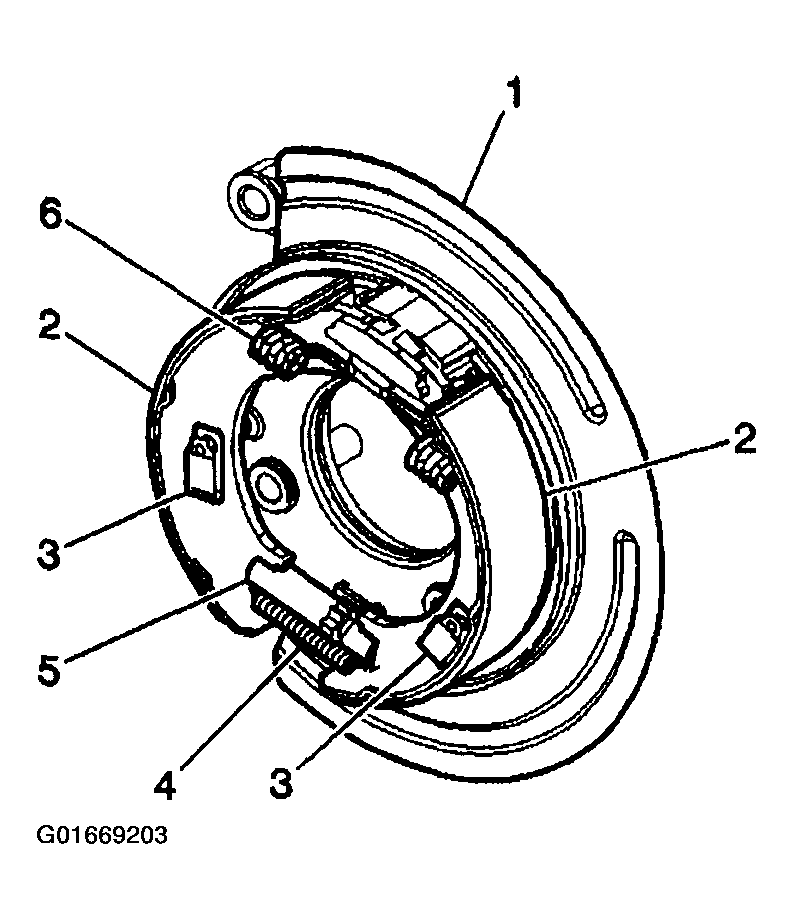

    Fig 1: Park Brake Shoe & Components
    G01669203Courtesy of GENERAL MOTORS CORP.
  5. Remove the rotor. Refer to BRAKE ROTOR .
  6. Remove the park brake shoe return spring (6).
  7. Remove the park brake shoe anchor springs and pins (3).
  8. Separate the tips of the shoes from the park brake actuator and remove the park brake shoes and adjuster assembly from the vehicle.
