Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Release the park brake.
Raise and support the vehicle.
Remove the park brake cable from the equalizer by pulling down on the intermediate cable and release the cable from the equalizer bar.

Fig 1: Park Brake Cable Equalizer
Courtesy of GENERAL MOTORS CORP.
Remove the cable from the mounting bracket by depressing the locking tabs.

Fig 2: Park Brake Cable Mounting Bracket & Locking Tabs
Courtesy of GENERAL MOTORS CORP.
Remove the park brake cable from the differential clip. Remove the bolt retaining the park brake cable from the rear axle clip.

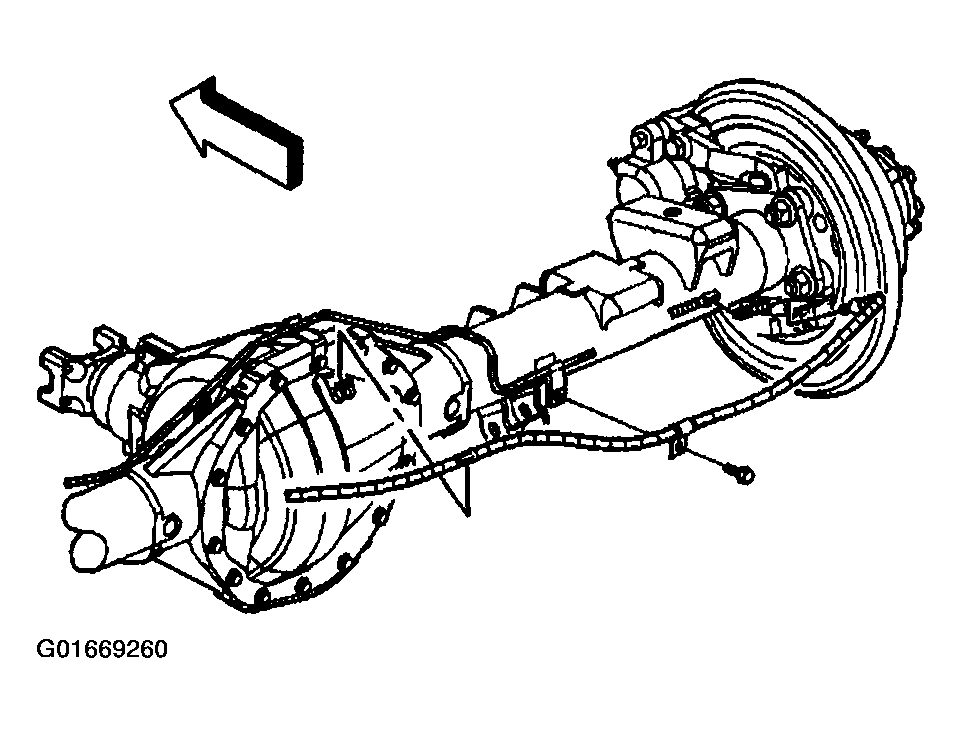

Fig 3: Park Brake Cable Differential Clip
Courtesy of GENERAL MOTORS CORP.
Remove the rear brake cable mounting bracket bolt.

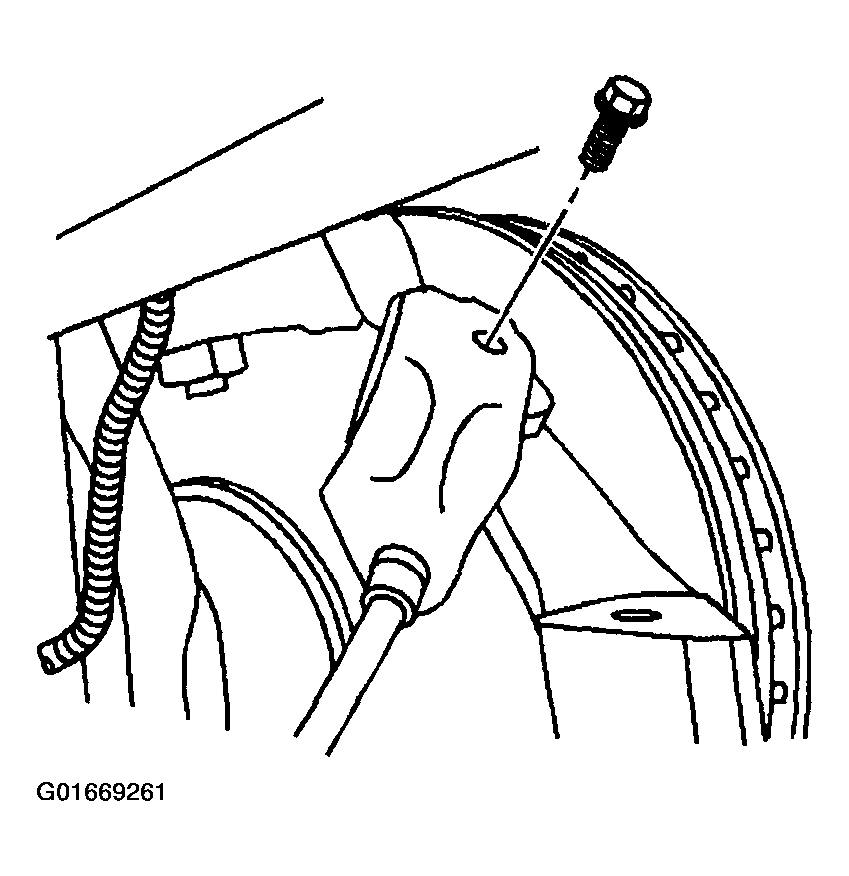

Fig 4: Park Brake Cable Mounting Bracket Bolt
Courtesy of GENERAL MOTORS CORP.
Remove the brake cable from the lever.

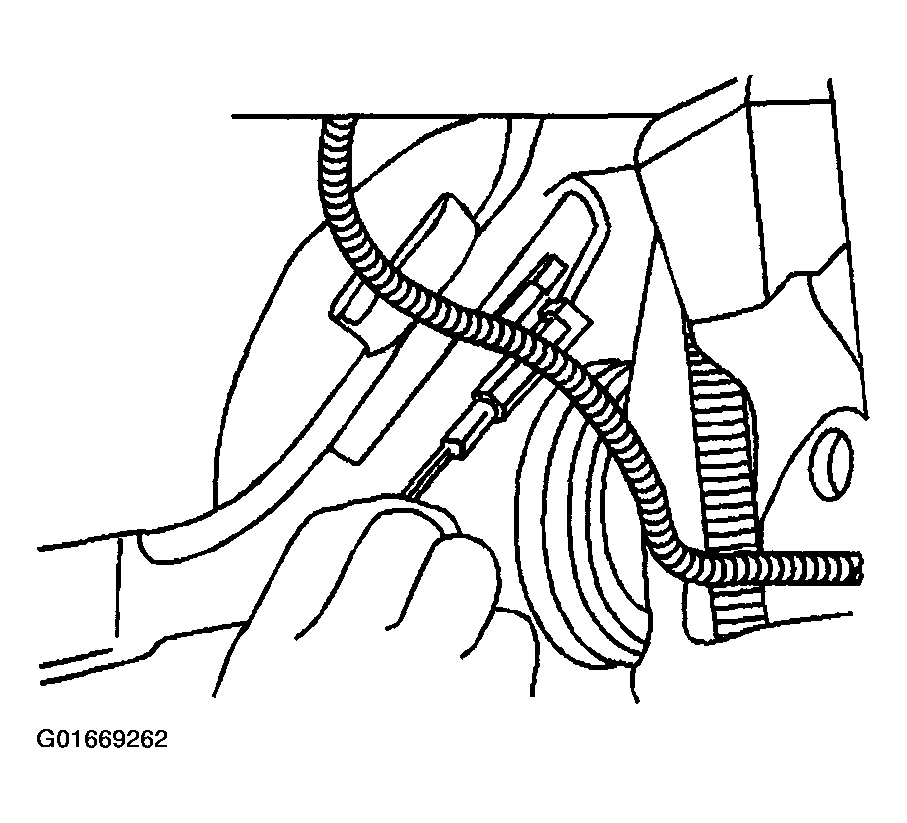

Fig 5: Park Brake Cable At Lever
Courtesy of GENERAL MOTORS CORP.
Remove the cable (2) from the rear brake cable mounting bracket (3) by depressing the locking tabs (1) on the brake cable.

Fig 6: Park Brake Cable Rear Mounting Bracket & Locking Tabs
Courtesy of GENERAL MOTORS CORP.
Remove the brake cable from the guides and the body mounts.

Fig 7: Park Brake Cable Guides
Courtesy of GENERAL MOTORS CORP.
