Test Description

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 2)  - If the vehicle has not been driven for at least 90 minutes you do not need to drive vehicle to update the outside air temperature display.

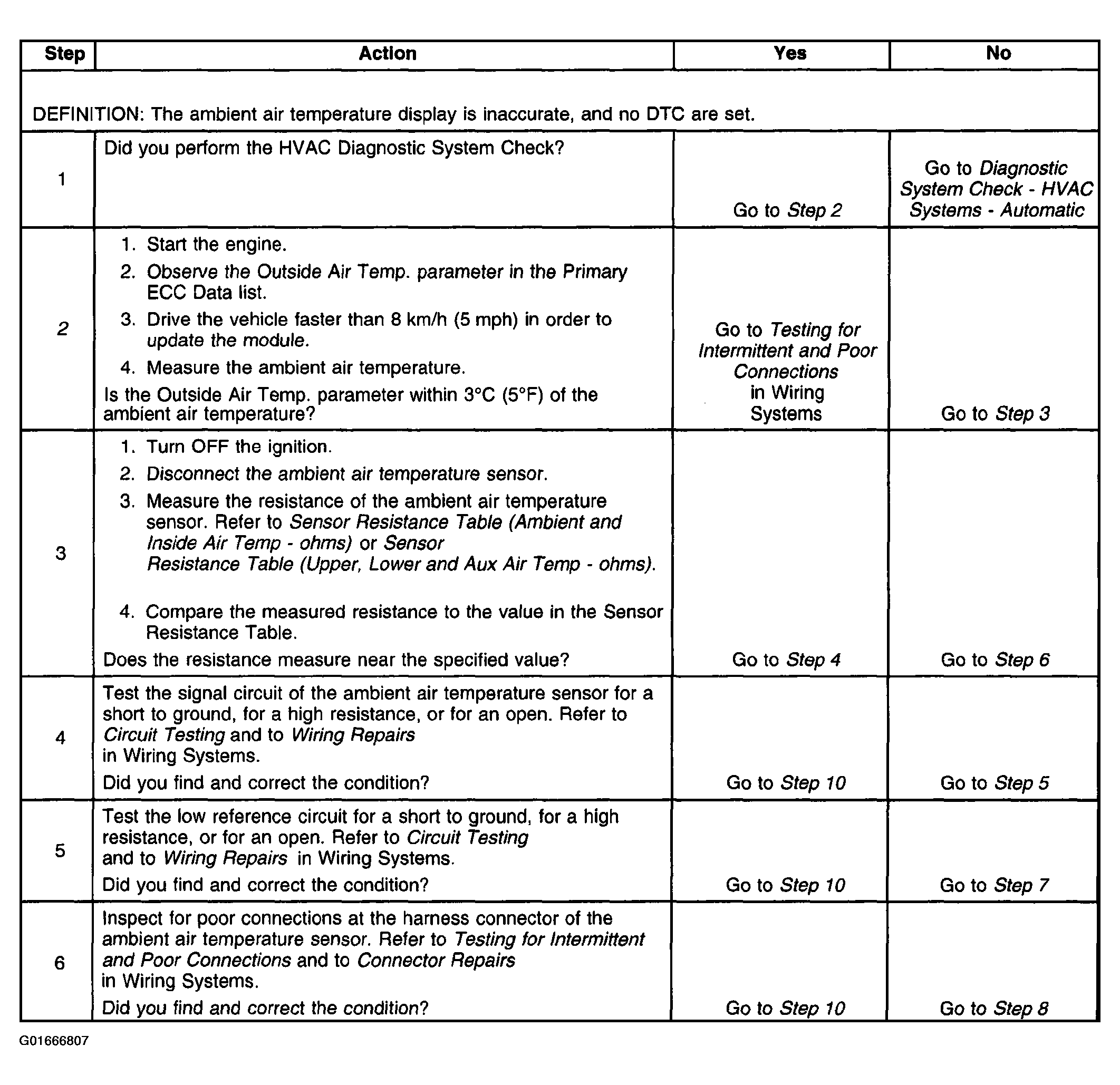

Fig 1: Outside Air Temperature Display Inaccurate Or Inoperative Diagnosis (Steps 1-6)
G01666807Courtesy of GENERAL MOTORS CORP.

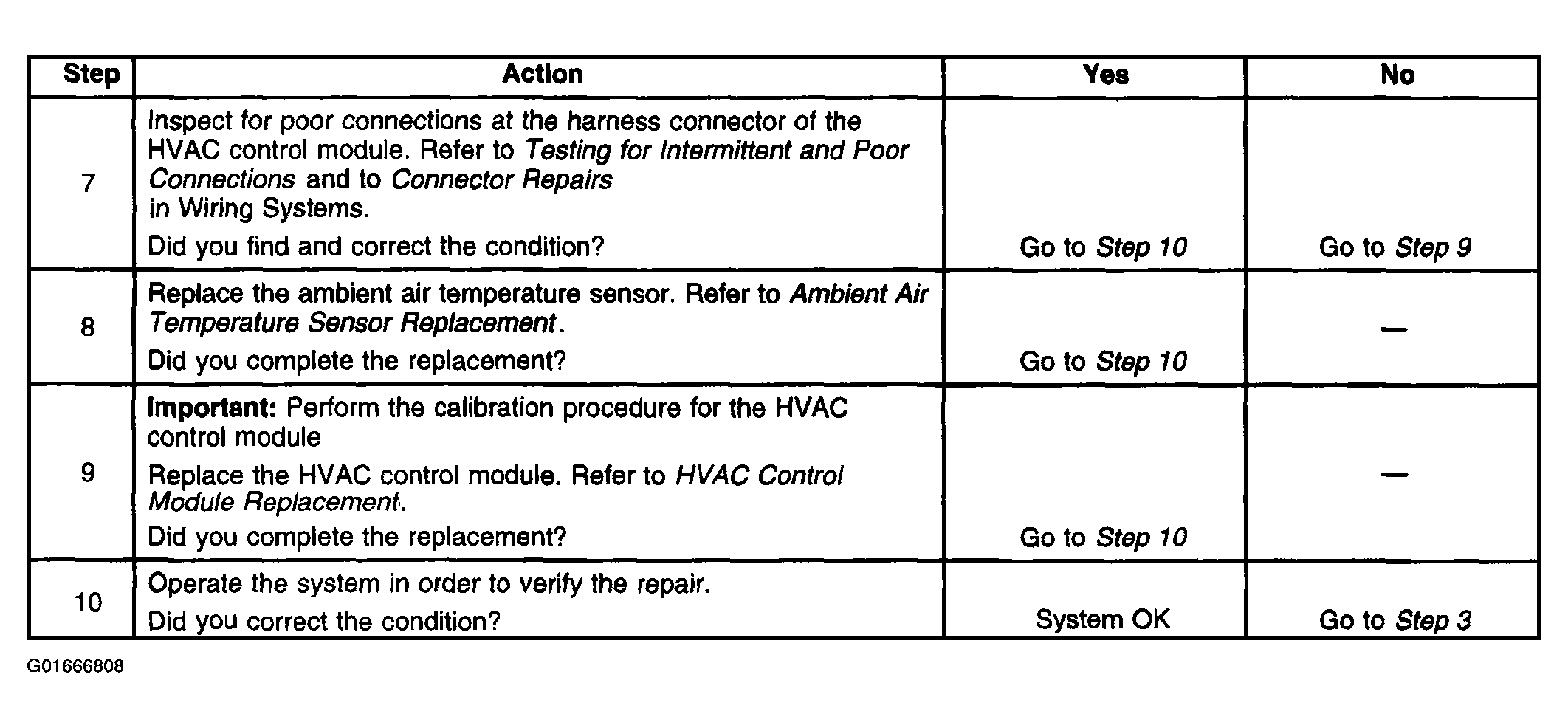

Fig 2: Outside Air Temperature Display Inaccurate Or Inoperative Diagnosis (Steps 7-10)
G01666808Courtesy of GENERAL MOTORS CORP.
