Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the heater/ventilation module. Refer to Heater/Vent Module Replacement .
  2. Remove the floor air outlet screws.
  3. Remove the floor air outlet (1).

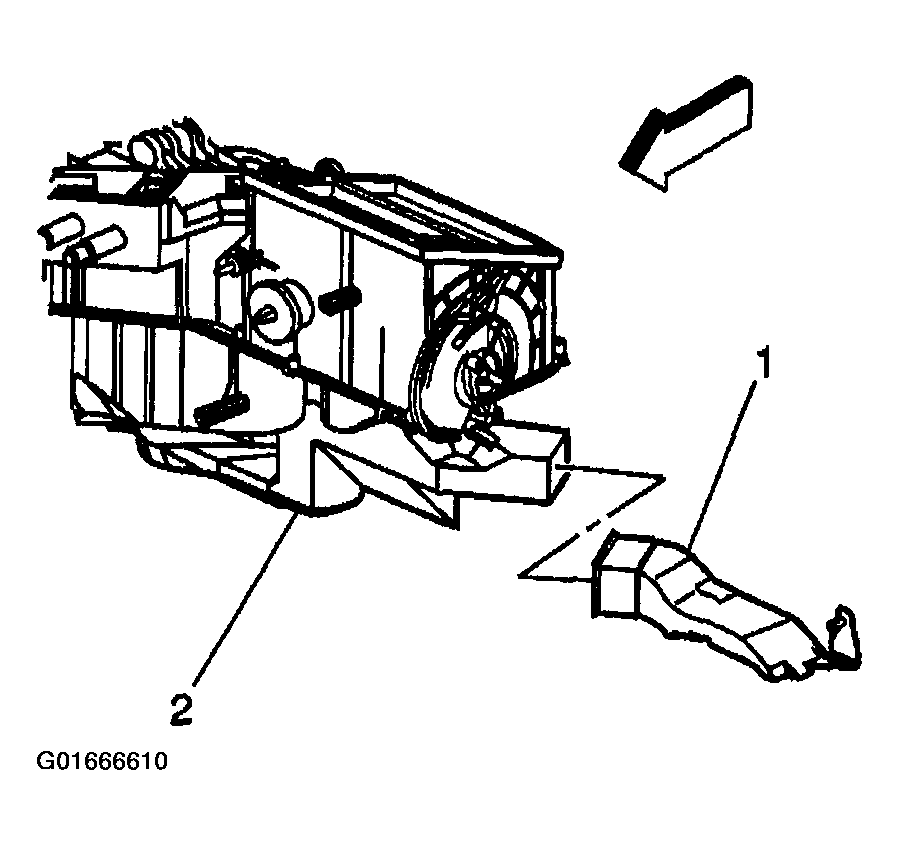

    Fig 1: Floor Air Outlet
    G01666610Courtesy of GENERAL MOTORS CORP.
