Odor Diagnosis

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

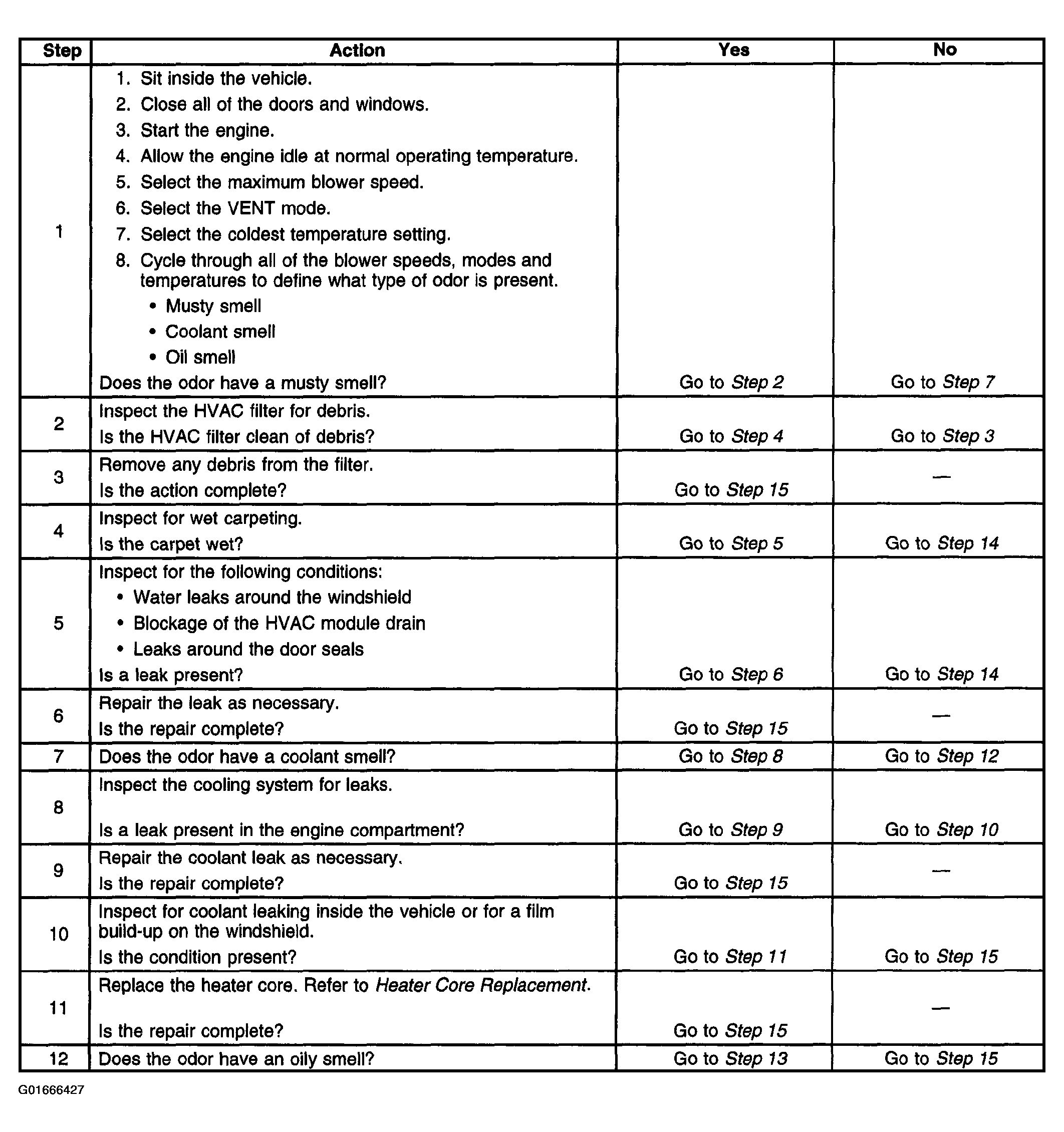

Fig 1: Odor Diagnosis (Steps 1-12)
G01666427Courtesy of GENERAL MOTORS CORP.
Fig 2: Odor Diagnosis (Steps 13-15)
G01666428Courtesy of GENERAL MOTORS CORP.
