Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Inlet Hose & Water Pump

Courtesy of GENERAL MOTORS CORP.

Install the inlet hose to the water outlet.
Reposition the inlet hose clamp to the water outlet.
Install the inlet hose clip to the fan shroud.

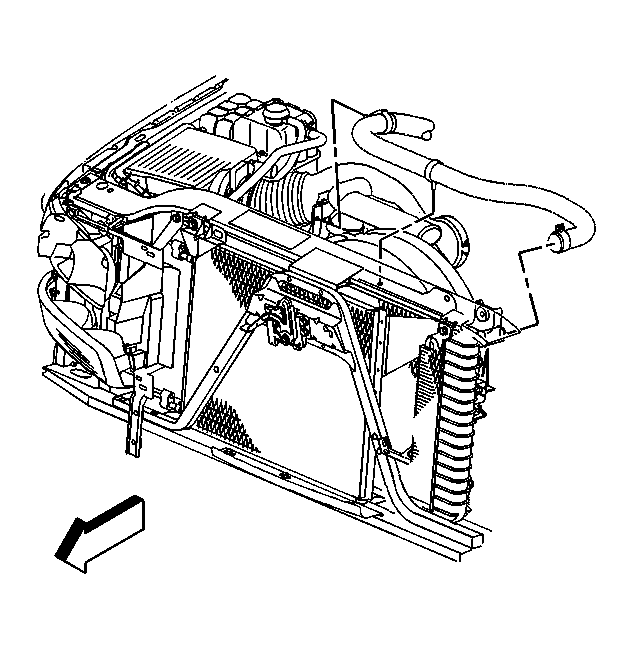

Fig 2: View of Vent Inlet Hose

Courtesy of GENERAL MOTORS CORP.

Install the inlet hose to the radiator.
Reposition the inlet hose clamp to the radiator.

Fig 3: View Of Vent Inlet Hose At Throttle Body

Courtesy of GENERAL MOTORS CORP.

Install the radiator vent inlet hose to the radiator inlet hose clips.
If necessary, install the engine sight shield. Refer to ENGINE SIGHT SHIELD REPLACEMENT (4.8L, 5.3L, 6.0L (LQ4)) or ENGINE SIGHT SHIELD REPLACEMENT (6.0L (LQ9)) .

Fig 4: View Of Air Cleaner Outlet Duct (W/HP2 Front)

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Align the arrow at the throttle body end of the duct with the throttle body attaching stud.

Install the air cleaner outlet duct.

NOTE: Refer to FASTENER NOTICE .

Tighten the air cleaner outlet duct clamps at the following locations:
- Throttle body
- MAF/IAT sensor
  Tighten: Tighten the air cleaner outlet duct clamp screws to 7 N.m (62 lb in).
Fill the cooling system. Refer to Draining and Filling Cooling System .
