Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear bumper fascia splash shield to the body.

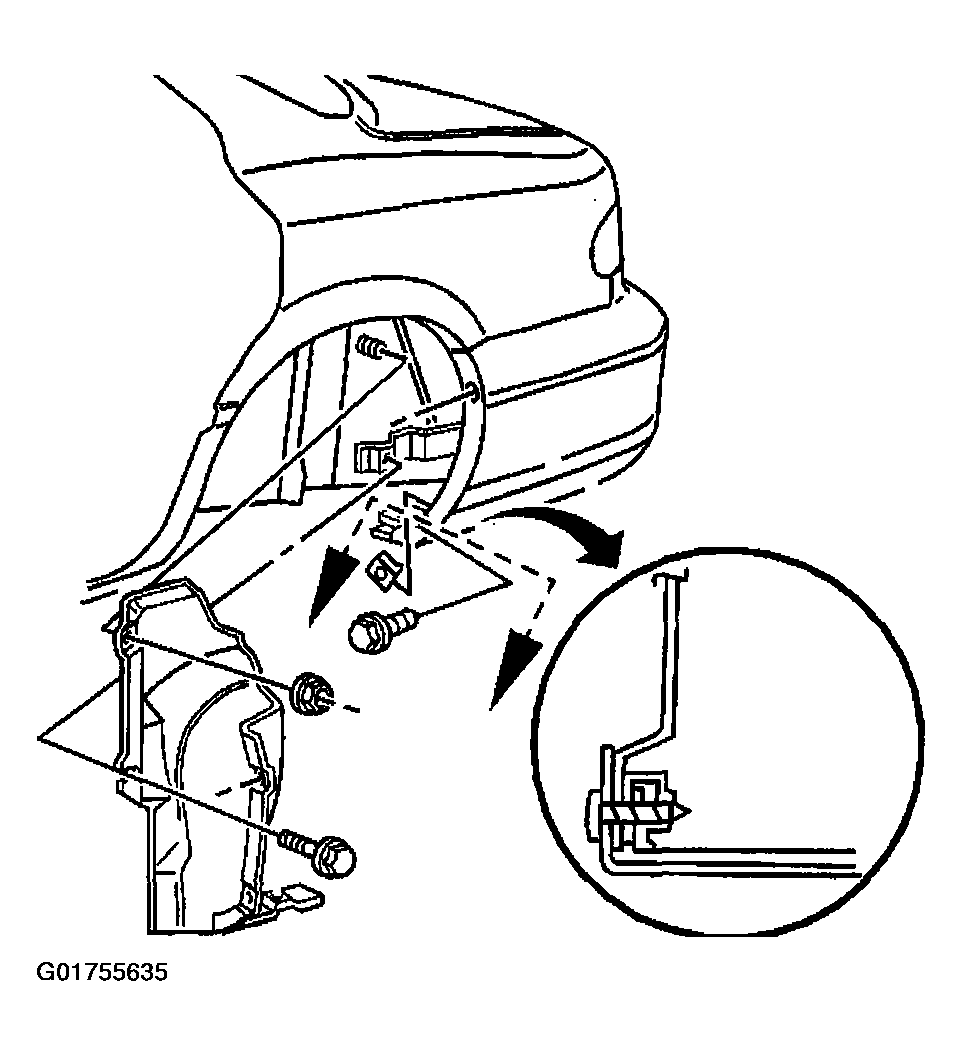

    2. Fig 1: Identifying Rear Bumper Fascia Left Splash Shield
    G01755635Courtesy of GENERAL MOTORS CORP.
  2. Install the rear bumper fascia splash shield to body clips.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the rear bumper fascia splash shield to body nut. Tighten the nut to 2 N.m (18 in lbs).
  4. Install the rear bumper fascia splash shield to body bolts. Tighten the bolts to 2 N.m (18 in lbs).
