Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to Fascia Replacement - Front Bumper .
  2. Remove the front bumper fascia from the front bumper fascia lower support. Refer to Fascia Support Replacement - Front Bumper Lower .
  3. Remove the front bumper energy absorber retainers. Refer to Energy Absorber Replacement - Front .
  4. Remove the wiring harness from the rear of the front bumper impact bar.

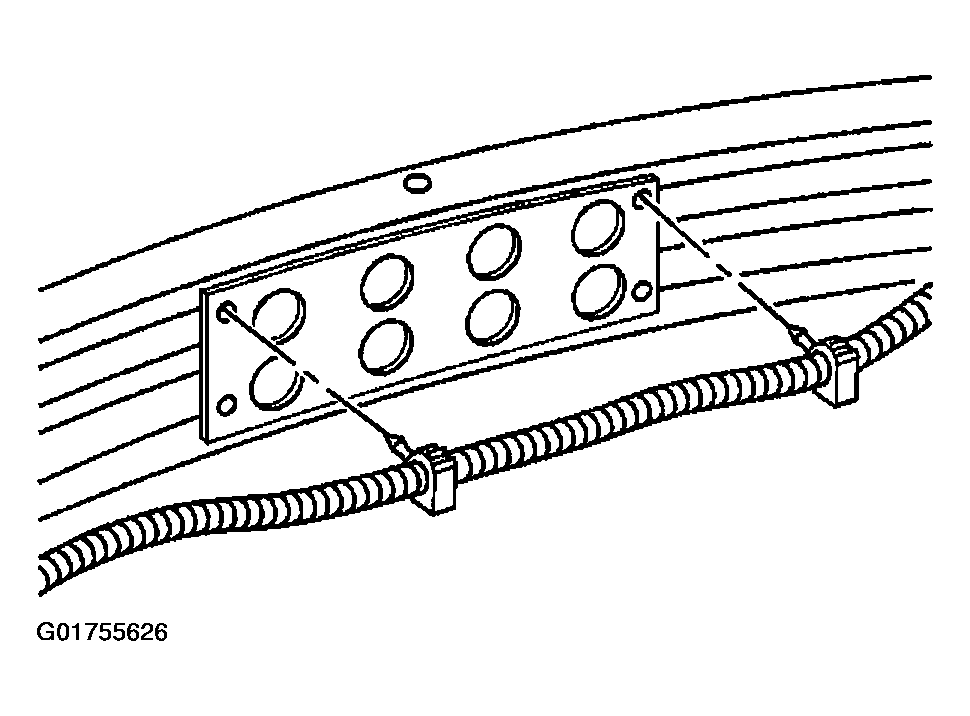

    5. Fig 1: Identifying Front Bumper Impact Bar Wiring Harness
    G01755626Courtesy of GENERAL MOTORS CORP.
  5. Remove the fog lamps. Refer to FOG LAMP REPLACEMENT - FRONT .
  6. Remove the horns. Refer to HORN REPLACEMENT .
  7. Remove the bolts from the front bumper impact bar at the frame rails.

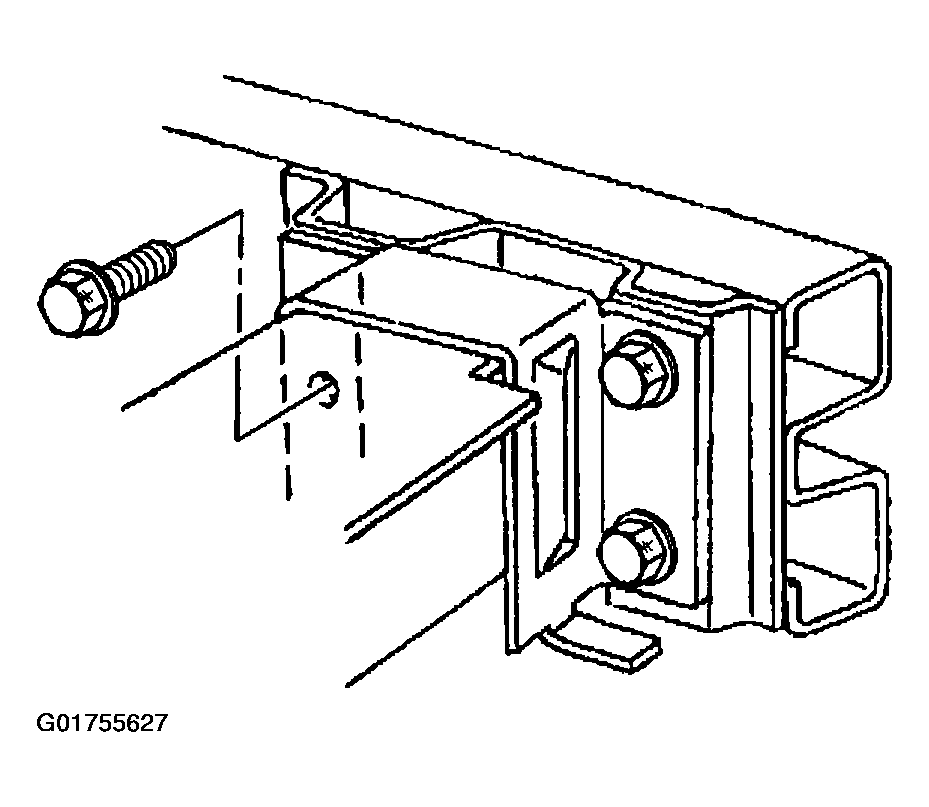

    8. Fig 2: Identifying Front Bumper Impact Bar Bolts
    G01755627Courtesy of GENERAL MOTORS CORP.
  8. Remove the front bumper impact bar from the frame rails.
