Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push-in retainers from the front bumper impact bar using the J 38778  .

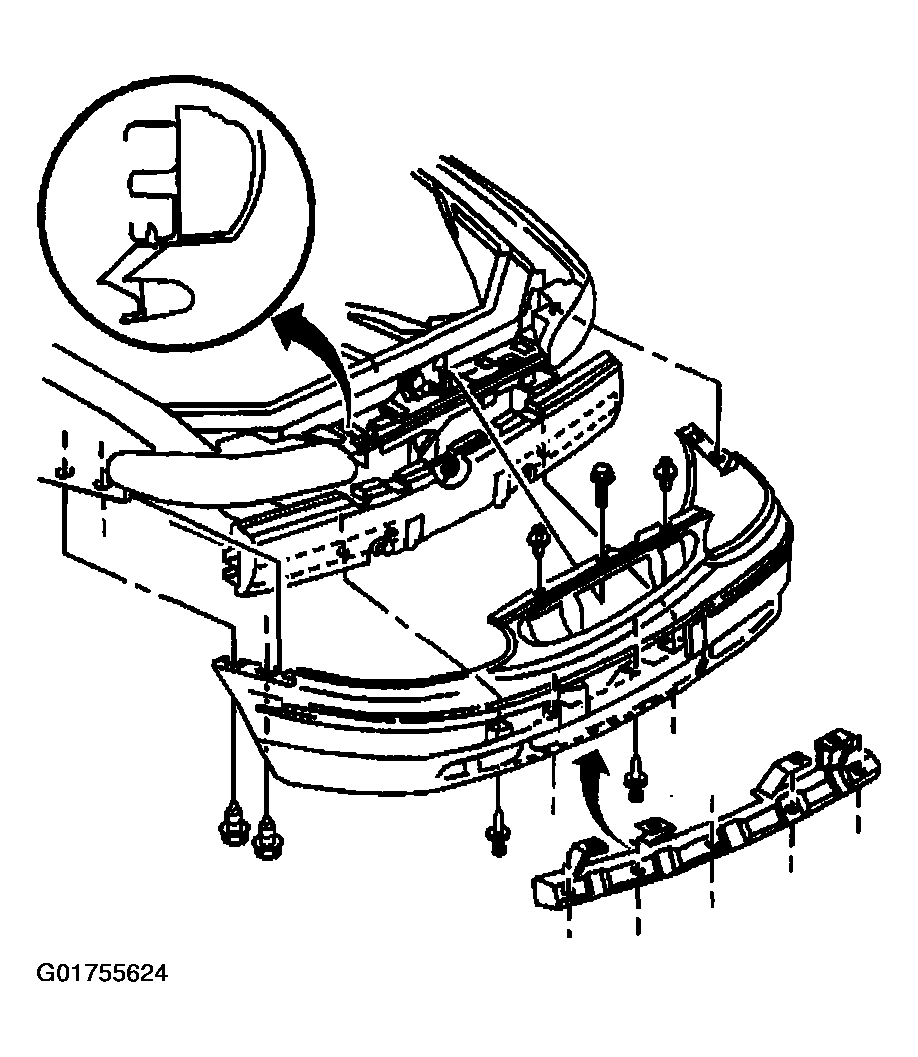

    2. Fig 1: Identifying Front Bumper Lower Fascia Support
    G01755624Courtesy of GENERAL MOTORS CORP.
  2. Remove the push-in retainers from the lower front bumper fascia using the J 38778  .
  3. Remove the front bumper fascia lower support from the front bumper fascia.
