Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to Fascia Replacement - Rear Bumper .
  2. Remove the push-in retainers from the rear bumper energy absorber at the rear bumper impact bar using the J 38778  .
  3. Remove the rear bumper energy absorber from the rear bumper impact bar.

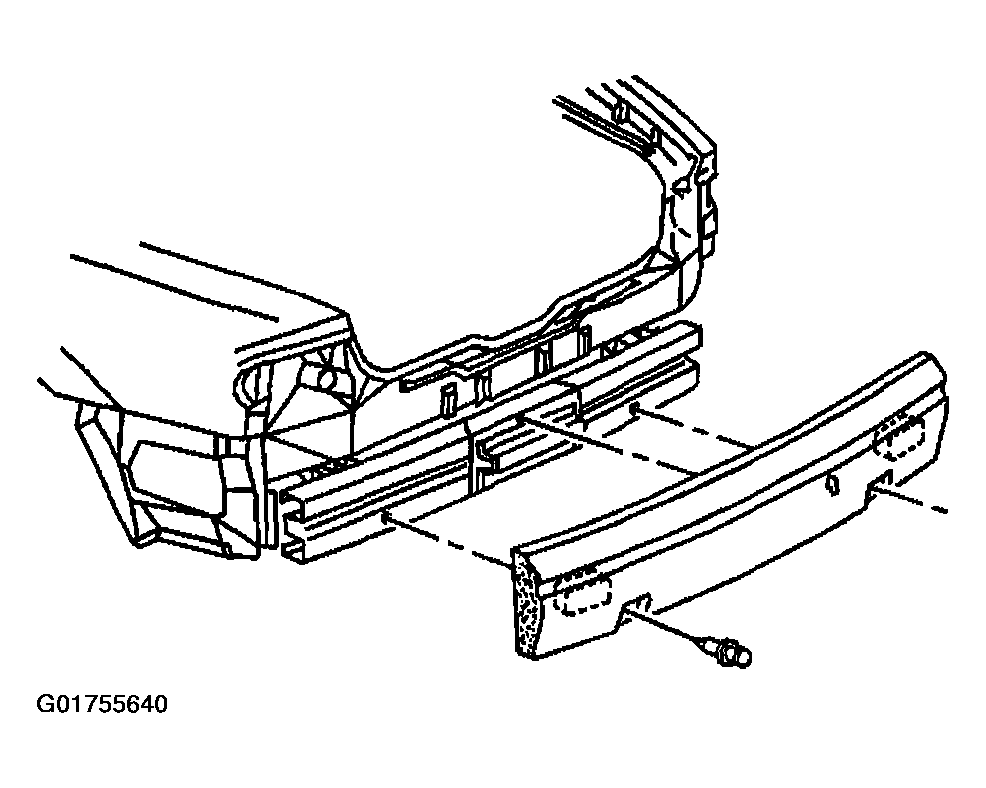

    Fig 1: Identifying Rear Energy Absorber
    G01755640Courtesy of GENERAL MOTORS CORP.
