Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

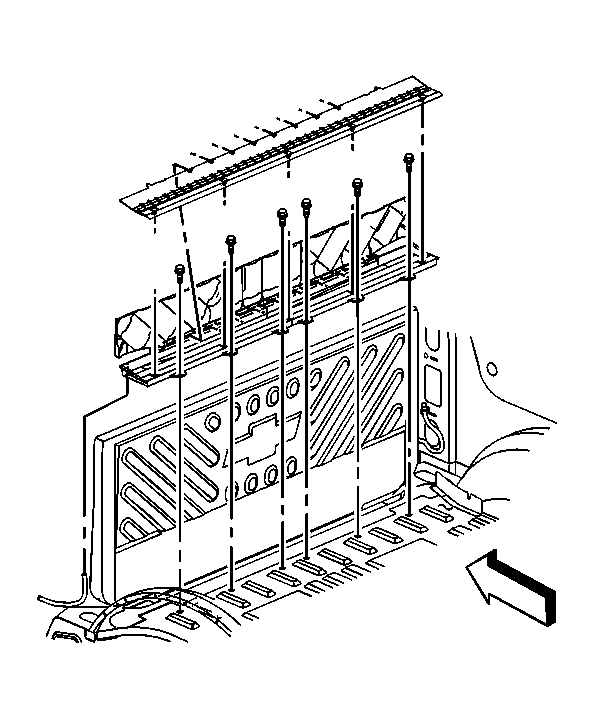

    Fig 1: Load Floor Water Management Grate (Avalanche)
    GM741579Courtesy of GENERAL MOTORS CORP.
  1. Install the panel assembly - load floor to the vehicle.
    2. NOTE: Refer to FASTENER NOTICE .
  2. Install the retaining bolts to the load floor trim panel.

    Tighten:  Tighten the bolts to 4 N.m (35 lb in).

  3. Install the load floor mat to the vehicle.
  4. Install the rear compartment cover assembly to the vehicle.
