Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

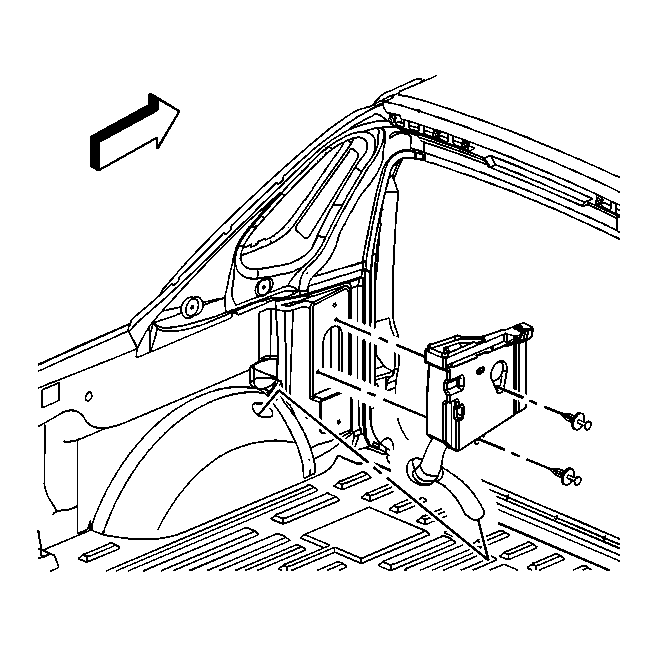

    Fig 1: Body Side Rear Quarter Drain Duct (Avalanche)
    GM741581Courtesy of GENERAL MOTORS CORP.
  1. Install the duct assembly to the vehicle.
  2. Insert the drain hose through the inner fender wheel well and forward of the rear .
  3. Insert the push-pin retainers to the duct assembly.
  4. Install the cargo box stowage box. Refer to Box Replacement - Cargo Stowage (Avalanche) .
  5. Install the cargo box stowage lid assembly. Refer to Lid Replacement - Cargo Box Stowage Box (Avalanche) .
  6. Install the rear body side drain deflector. Refer to DEFLECTOR REPLACEMENT - BODY SIDE REAR DRAIN .
  7. Install the assist handle. Refer to Assist Handle Replacement - Endgate (Avalanche) .
  8. Install the rear compartment cover assembly.
  9. Close the endgate.
