Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the electrical center cover.
  2. Locate the relay.

    Important:

    • Always note the orientation of the relay.
    • Make sure the electrical center is secure, as not to put added stress on the wires or terminals.
  3. Using the J 43244  (1) position the tool on opposing corners of the relay (2).
    NOTE: Use J 43244 to pull the relay straight out from the electrical center terminals. The use of pliers or a flat bladed tool could damage the electrical center.
  4. Remove the relay (2) from the electrical center.

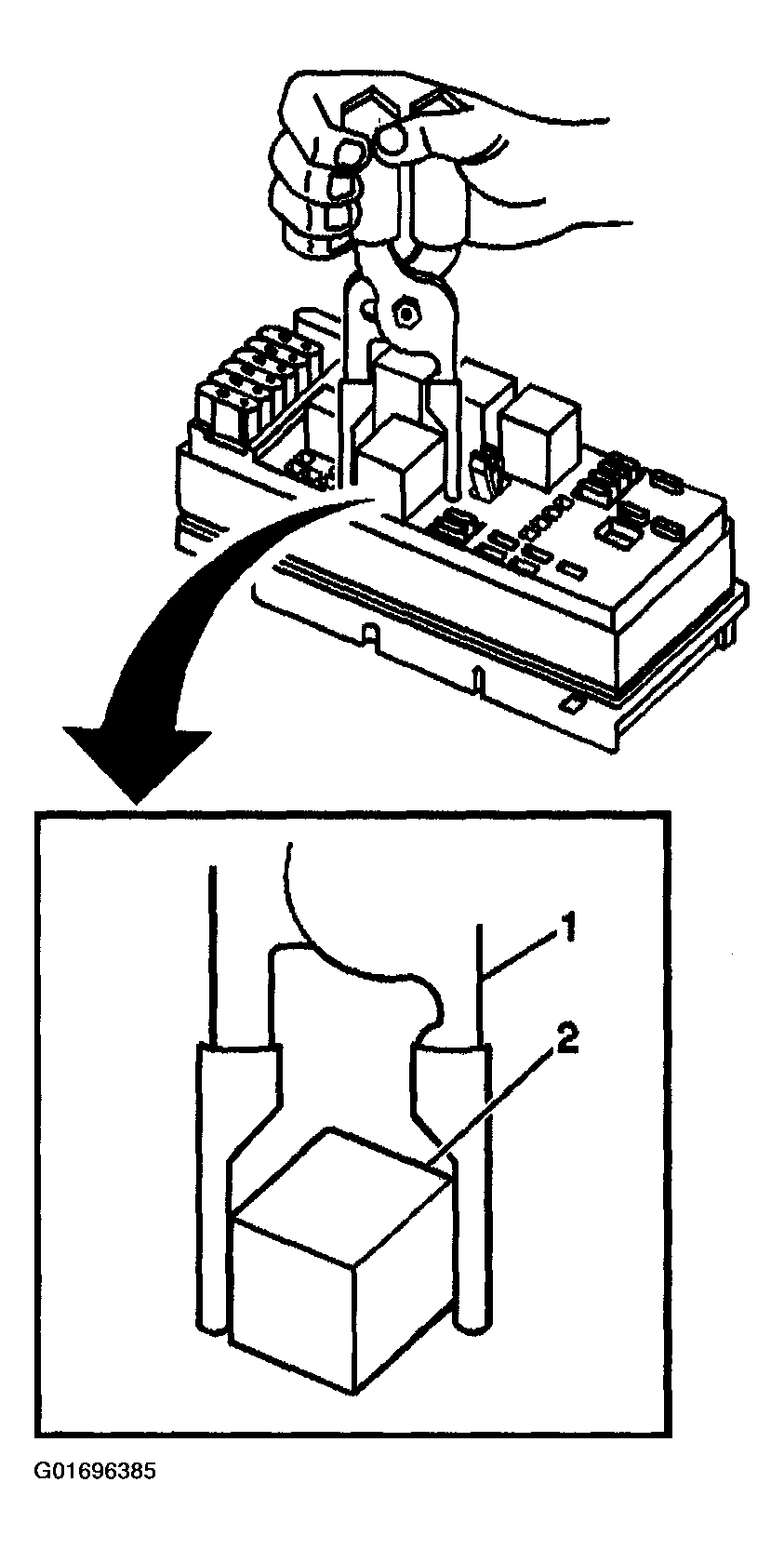

    Fig 1: Removing & Installing Relay
    G01696385Courtesy of GENERAL MOTORS CORP.
