Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the relay (1) to the wire harness connector (2).
  2. Install any connector position assurance (CPA) devices or secondary locks.
  3. Install the relay using any fasteners or tape that originally held the relay in place.

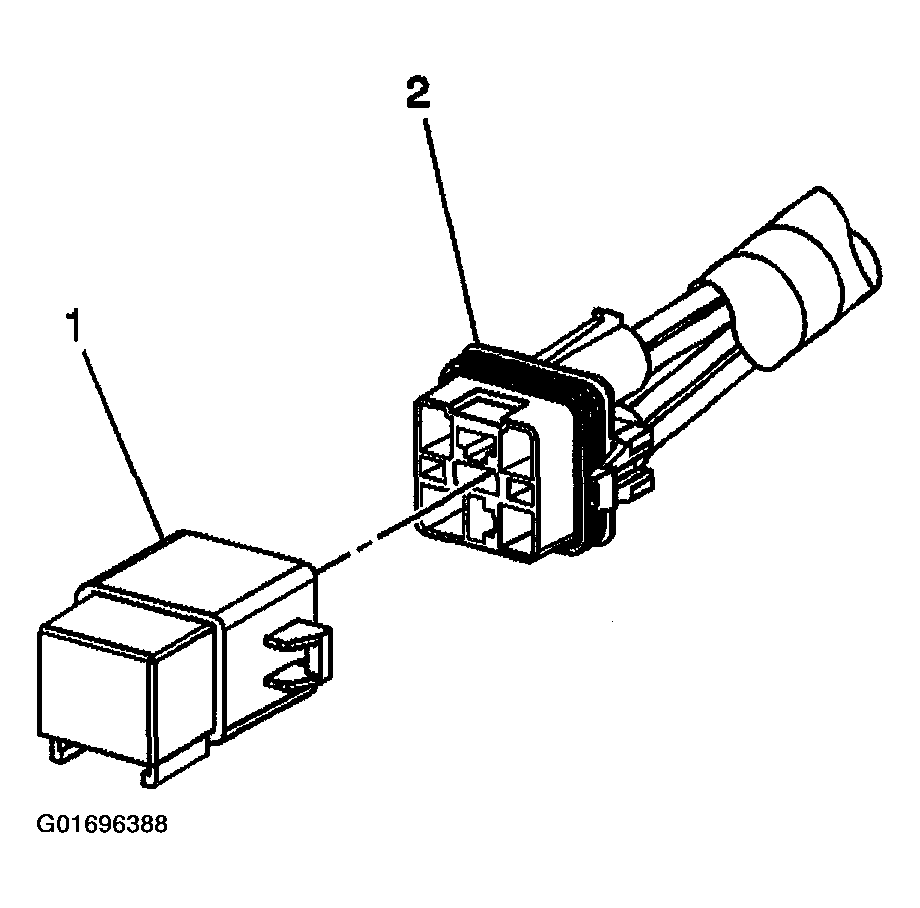

    Fig 1: Relay At Wire Harness Connector
    G01696388Courtesy of GENERAL MOTORS CORP.
