Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the negative battery cable(s).
  2. Remove the right side end panel.
  3. Unclip the wiring connector(s) from the front of the Instrument Panel (IP) wiring harness junction block Unclip the harness from the fastener.

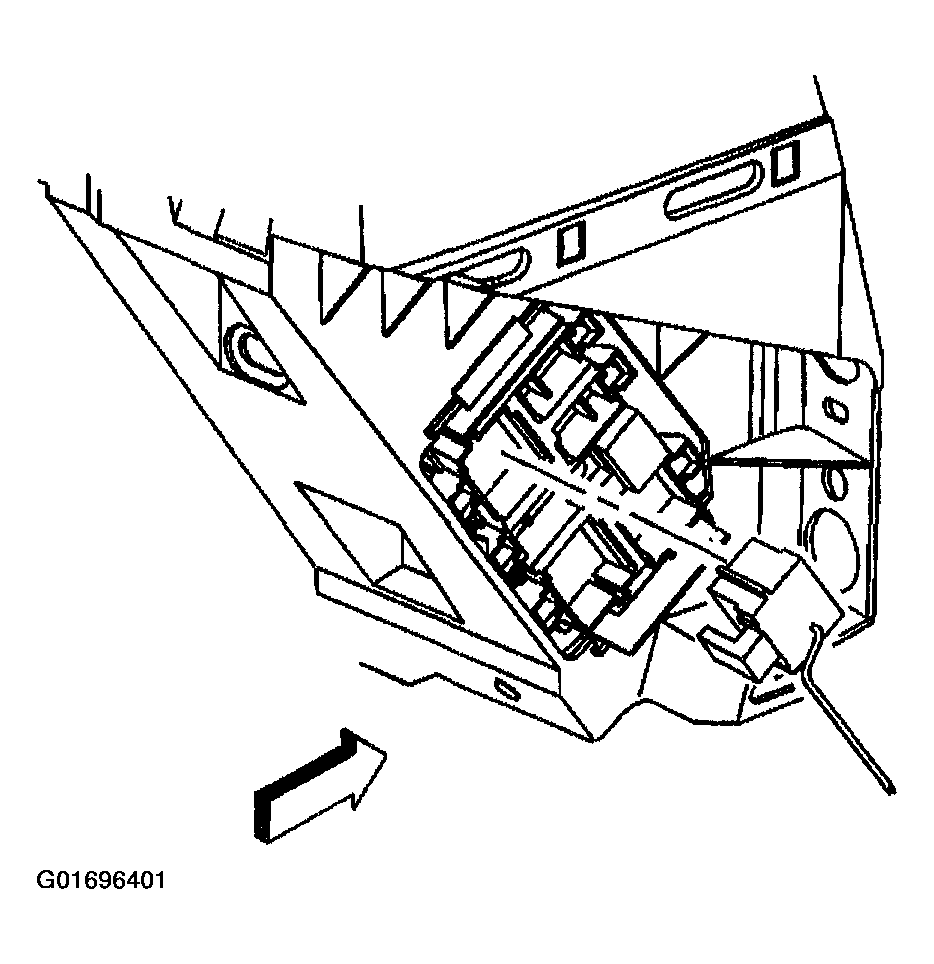

    4. Fig 1: IP Wiring Connector
    G01696401Courtesy of GENERAL MOTORS CORP.
  4. Remove the IP wiring harness junction block from the IP by pressing on both of the clips and pulling rearward.
  5. Disconnect the lower IP light bulb by twisting the bulb counterclockwise and pulling the bulb rearward.
  6. Feed the IP wiring harness junction block through the hole in the IP.
  7. Disconnect all remaining wiring connectors from the rear of the IP wiring harness junction block.
  8. Remove the IP wiring harness junction block from the vehicle.
