Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Yukon. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the wheel and tire assembly from the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Disconnect the sensor harness connector from the vehicle harness connector.
  4. Remove the bolt from the real time damping (RTD) sensor link bracket.
  5. Spread the bracket open until the bracket can be removed from the upper control arm.
  6. Remove the bolts from the frame.
  7. Remove the position sensor from the vehicle.

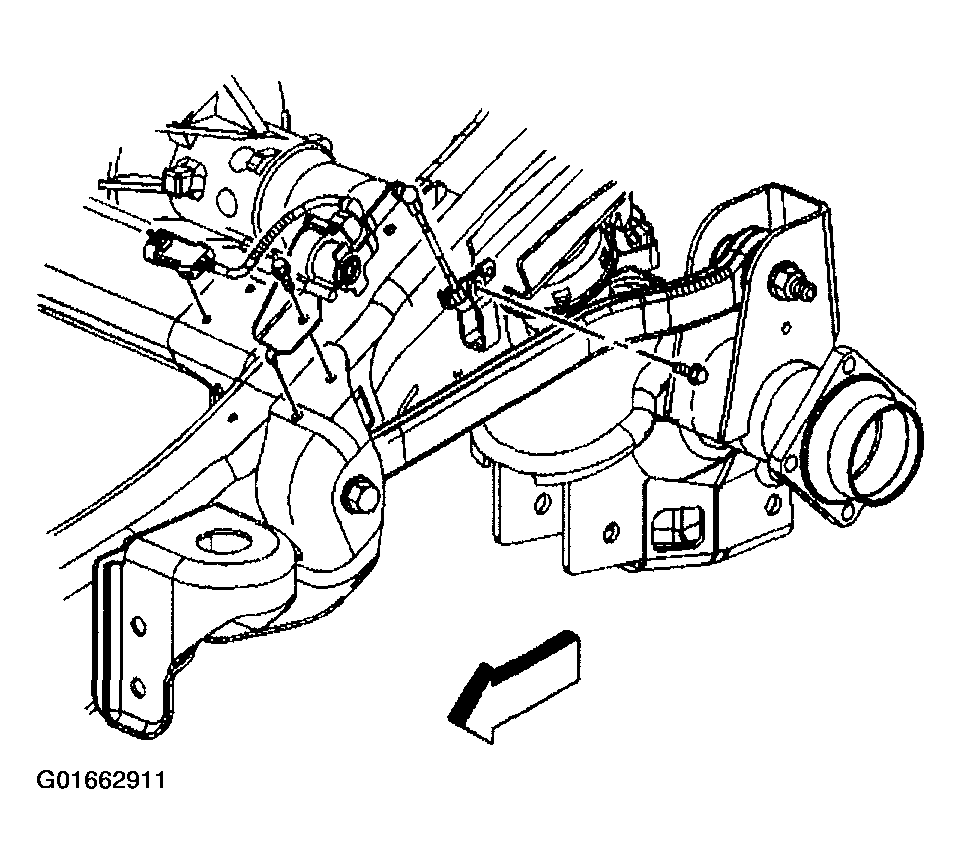

    Fig 1: Removing Rear Position Sensor Replacement - Left (15 Series)
    G01662911Courtesy of GENERAL MOTORS CORP.
