Test Description

WARNING: This page is about a different car, the 2002 GMC Yukon. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Tests whether the condition has been corrected or identified as specified in the supporting text.
  2. 3. Tests all 4 low reference circuits of the suspension damper solenoids for an open.
  3. 4. Tests all 4 control circuits of the suspension damper solenoids for an open.
  4. 5. Tests the solenoid ground circuit at the ESC module, should be less than 0.5 ohm.
  5. 7. Clear DTCs and checks to see if DTC will reset.

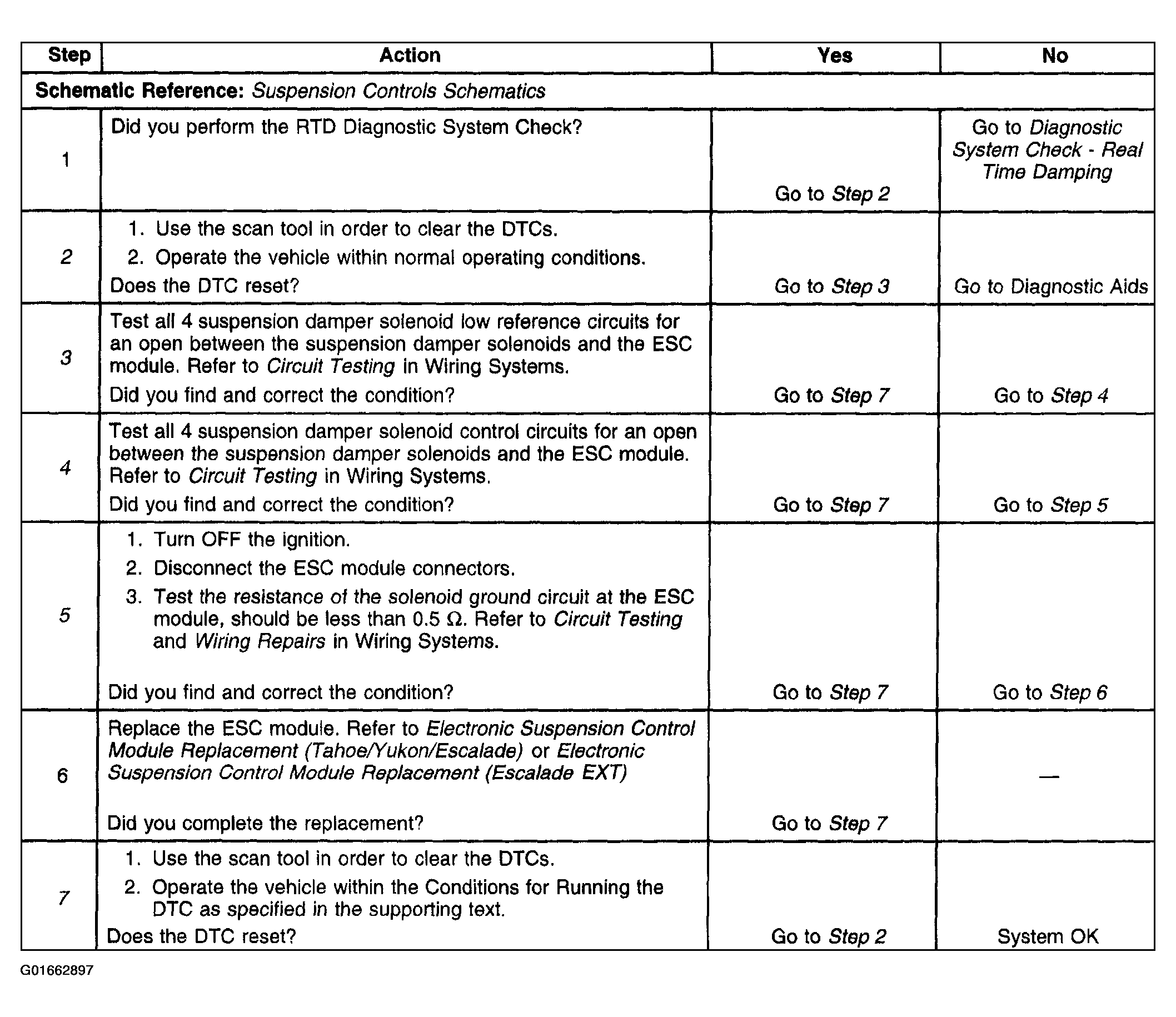

Fig 1: DTC C0690
G01662897Courtesy of GENERAL MOTORS CORP.
