Courtesy Lamps Inoperative (Without RPO Y91)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

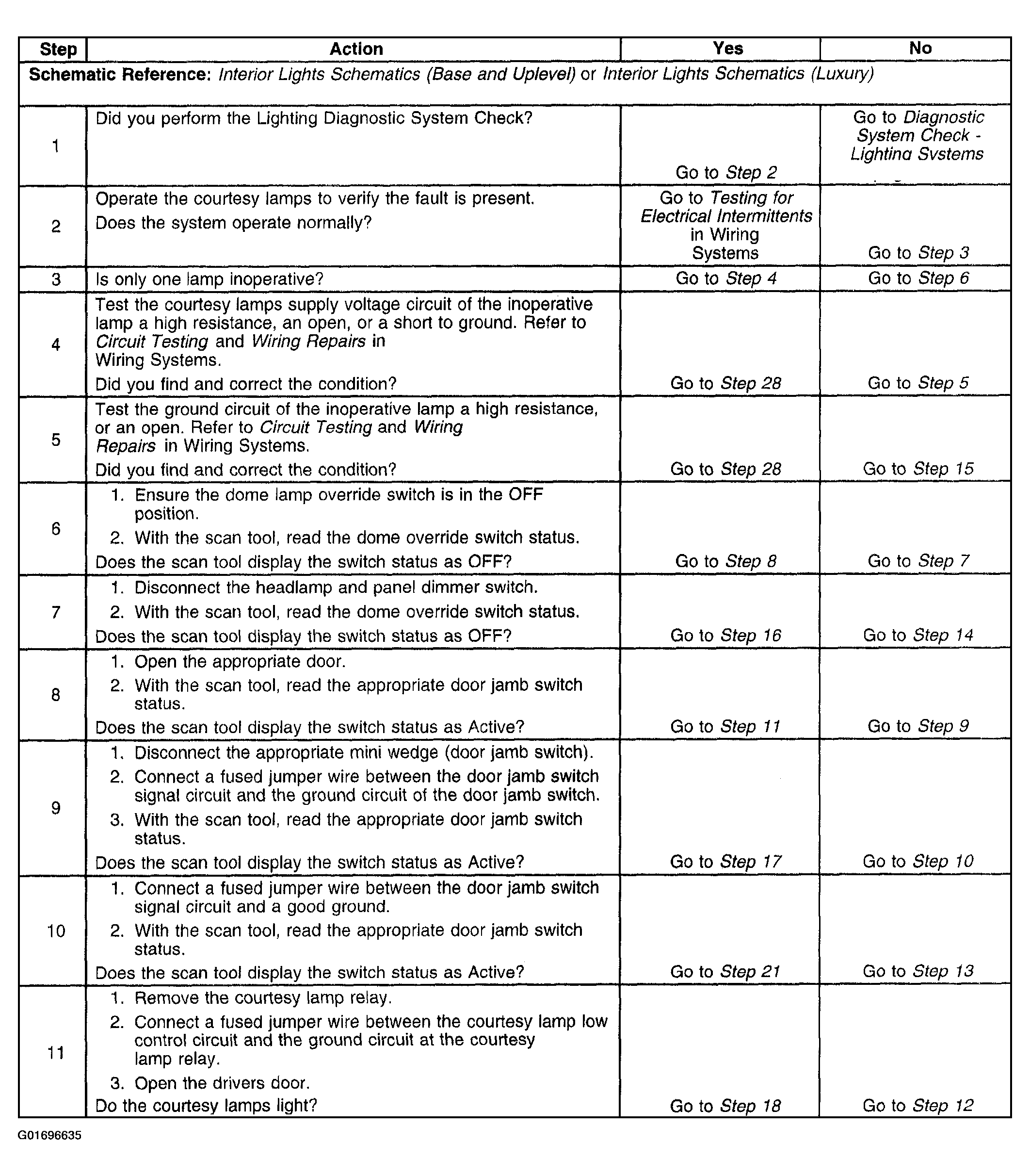

Fig 1: Courtesy Lamps Inoperative (Without RPO Y91) (Steps 1-11)

Courtesy of GENERAL MOTORS CORP.

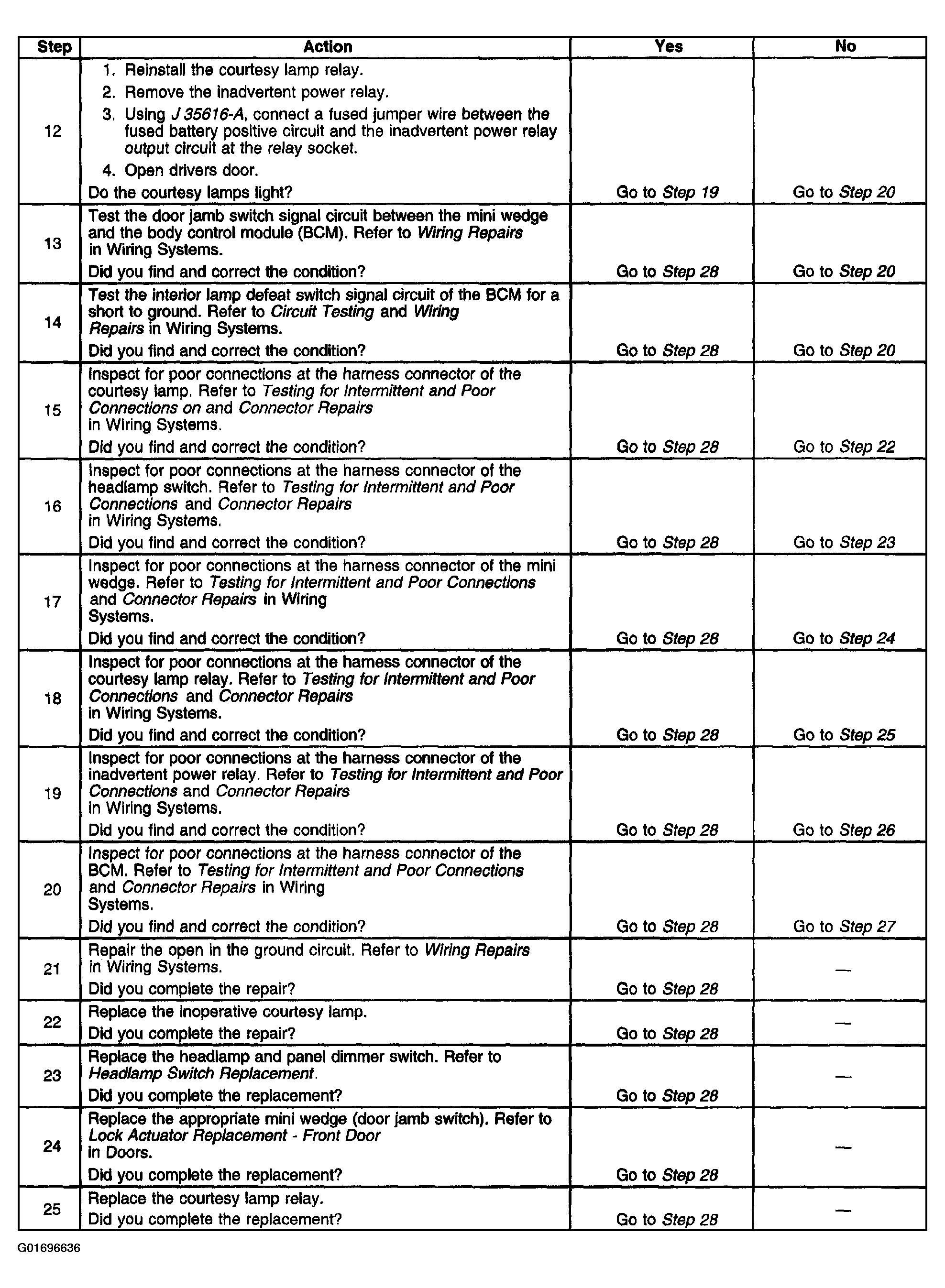

Fig 2: Courtesy Lamps Inoperative (Without RPO Y91) (Steps 12-25)

Courtesy of GENERAL MOTORS CORP.

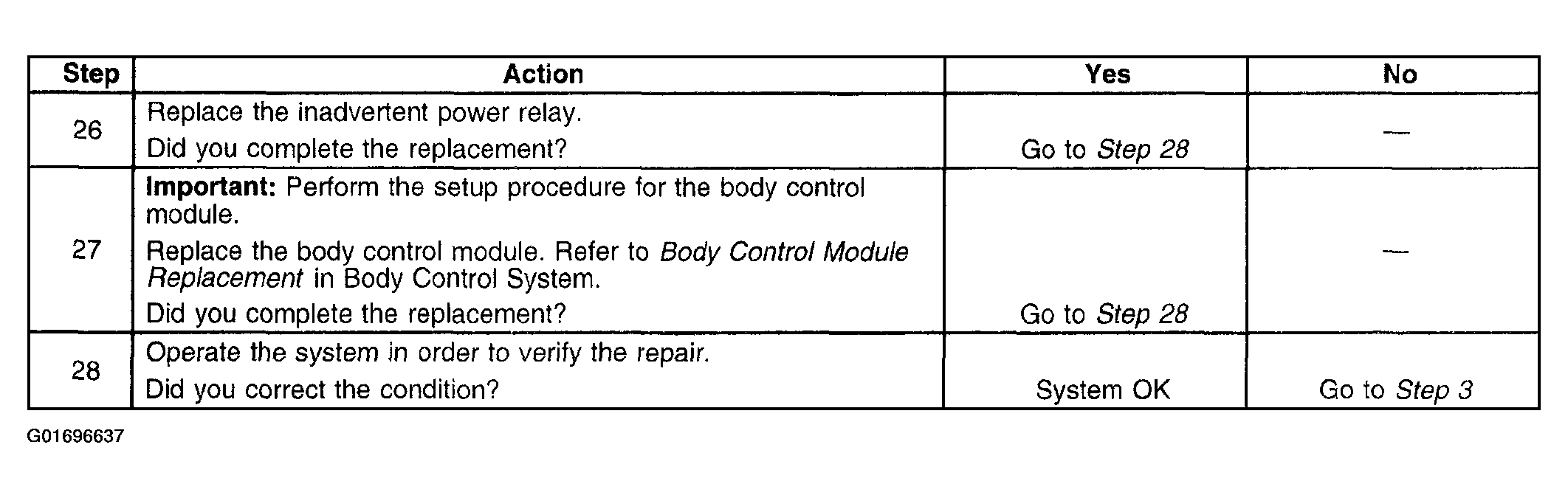

Fig 3: Courtesy Lamps Inoperative (Without RPO Y91) (Steps 26-28)

Courtesy of GENERAL MOTORS CORP.
