Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle.
  2. Remove the transfer case assembly. Refer to Transfer Case Assembly Replacement .
  3. Support the transmission with a suitable jack stand.
  4. Remove the transfer case adapter mounting bolts.
  5. Remove the transfer case adapter assembly.
  6. Remove the transfer case adapter seal.

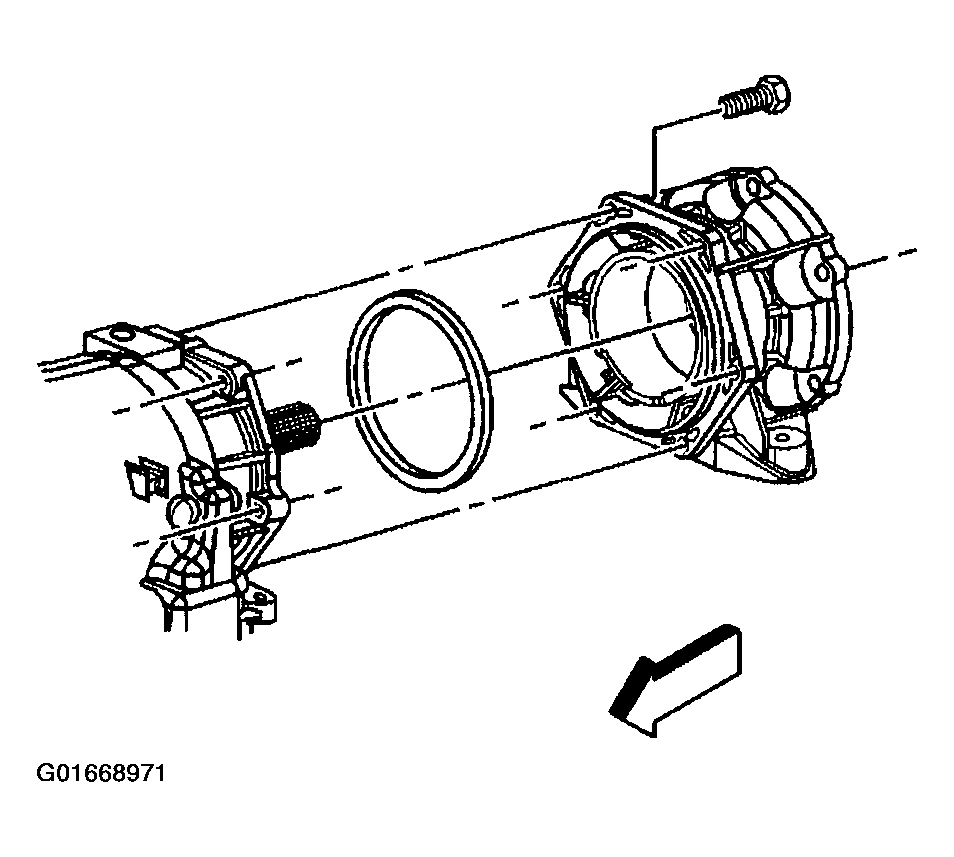

    Fig 1: Transfer Case Adapter Seal
    G01668971Courtesy of GENERAL MOTORS CORP.
  7. Remove the gasket from the transfer case.

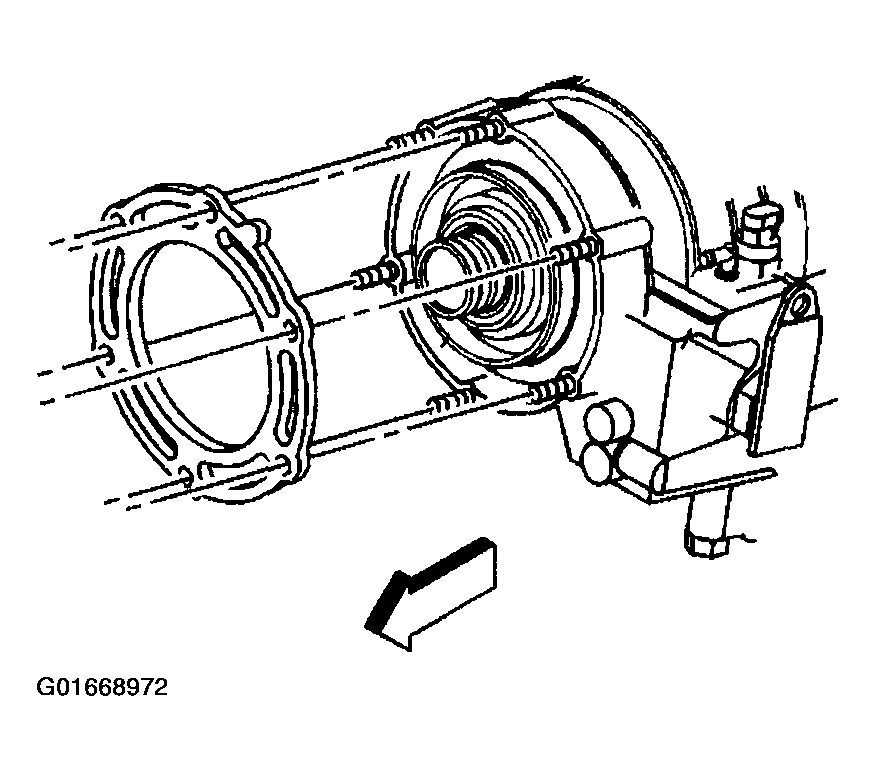

    Fig 2: Transfer Case Adapter
    G01668972Courtesy of GENERAL MOTORS CORP.
