Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the left fender upper brace.

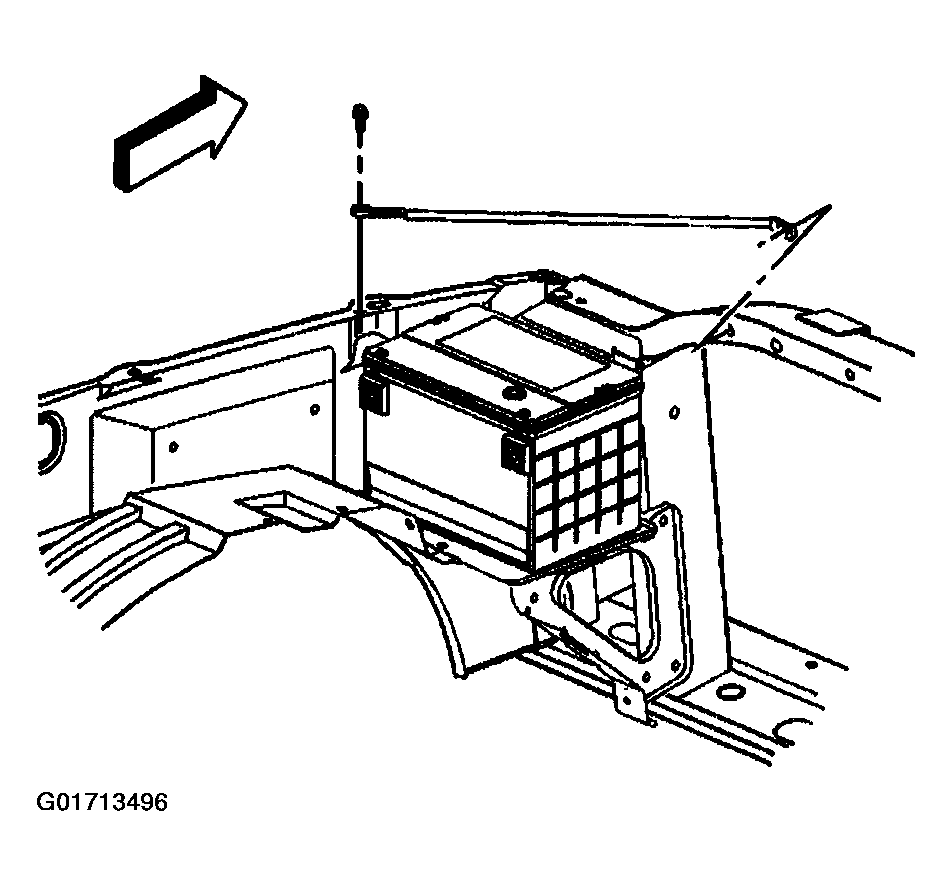

    Fig 1: Locating Battery
    G01713496Courtesy of GENERAL MOTORS CORP.
  3. Remove the electrical center brace cover assemble by lifting the cover (3) outwards to clear the tabs.
  4. Remove all fuses and relays.

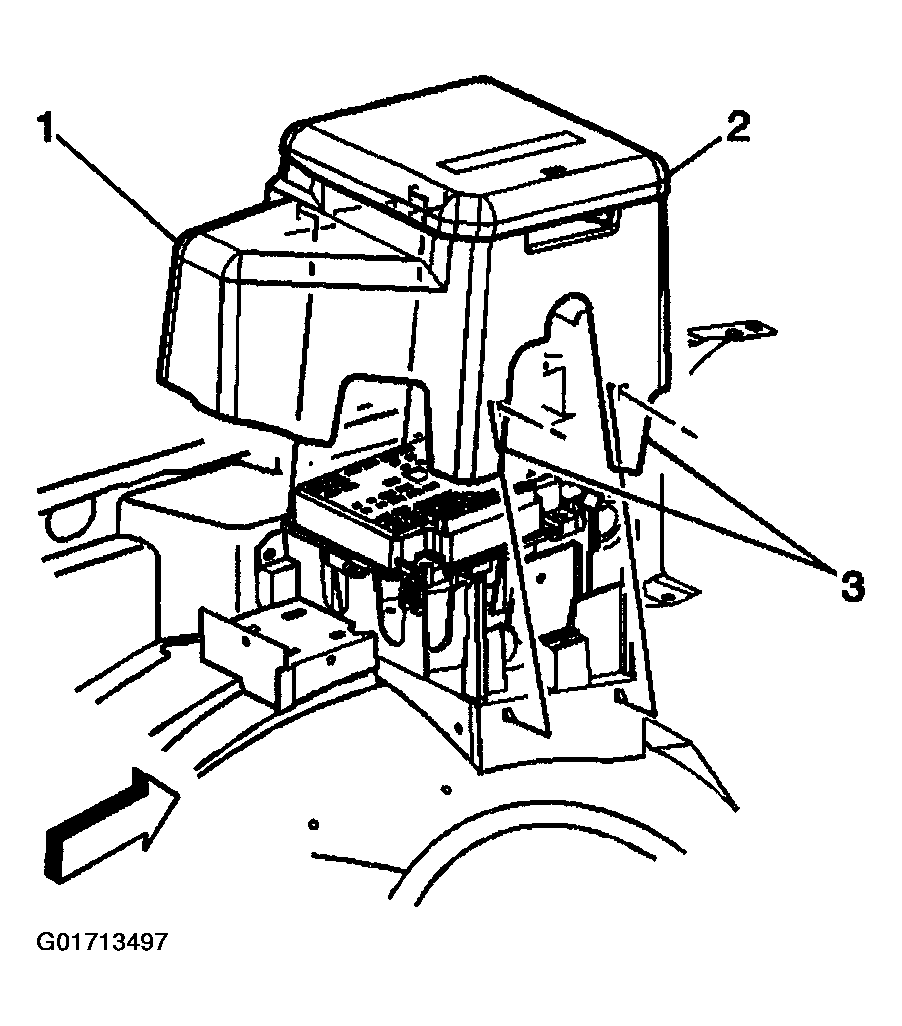

    Fig 2: Electrical Center
    G01713497Courtesy of GENERAL MOTORS CORP.
  5. Push on the tab (3) so that the electrical center can be rotated on the studs located at (2).
  6. Remove all connectors by removing the bolt (1) for each connector.
  7. Disconnect all connectors from the electrical center block.

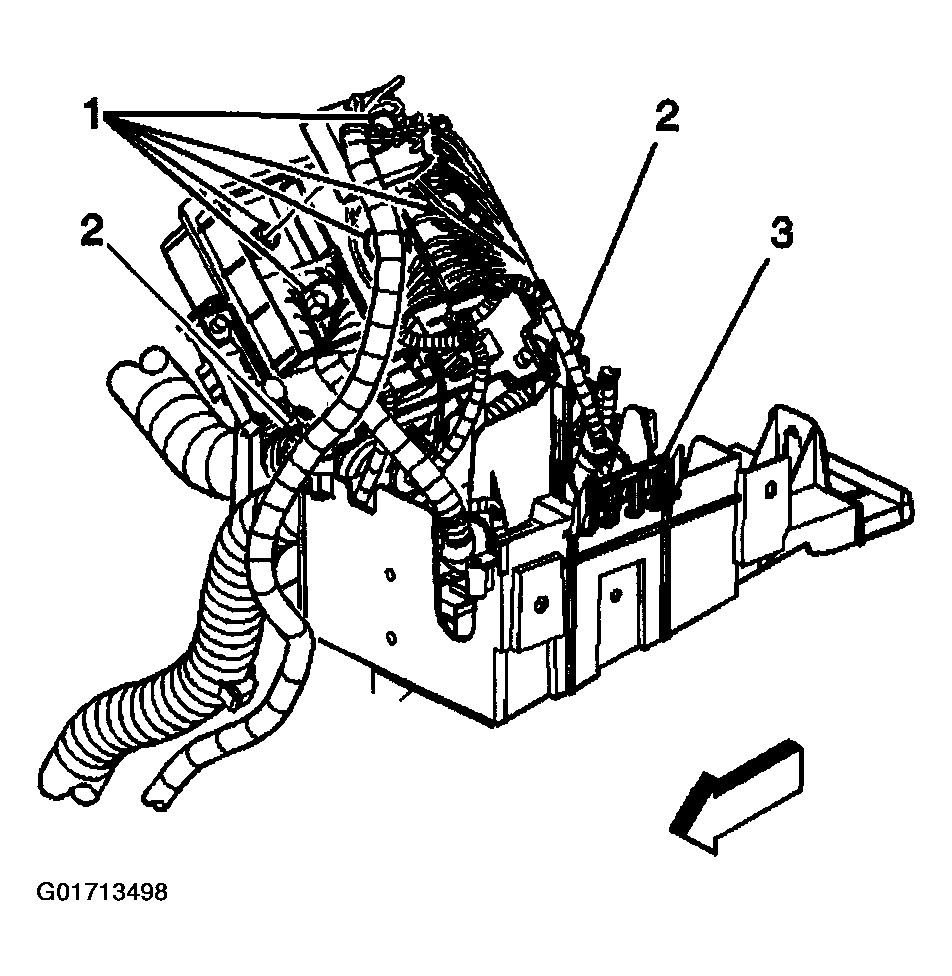

    Fig 3: Disconnecting Connectors From Electrical Center Block
    G01713498Courtesy of GENERAL MOTORS CORP.
  8. Push on the tabs (2) in order to lift the electrical center (1) out of the housing.

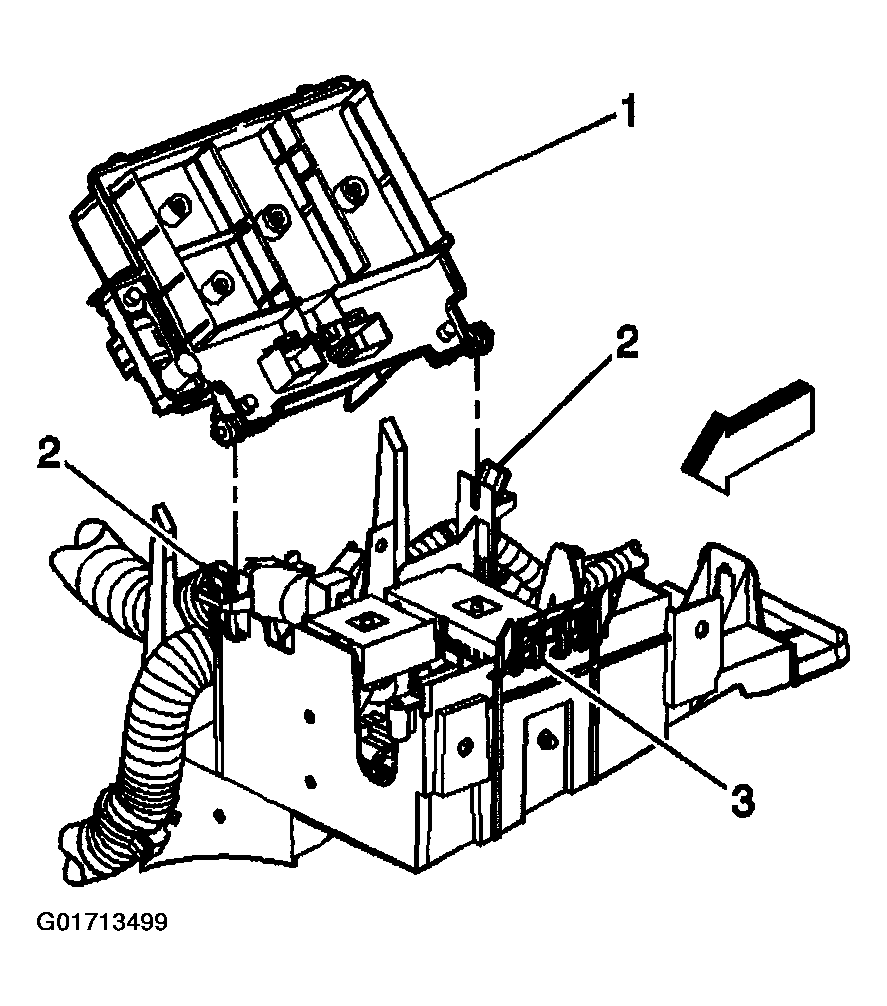

    Fig 4: Lifting Electrical Center Out Of Housing
    G01713499Courtesy of GENERAL MOTORS CORP.
  9. To replace the engine electrical center bracket remove the 4 retaining bolts (1).
  10. Remove the engine electrical center bracket assembly from the fender.

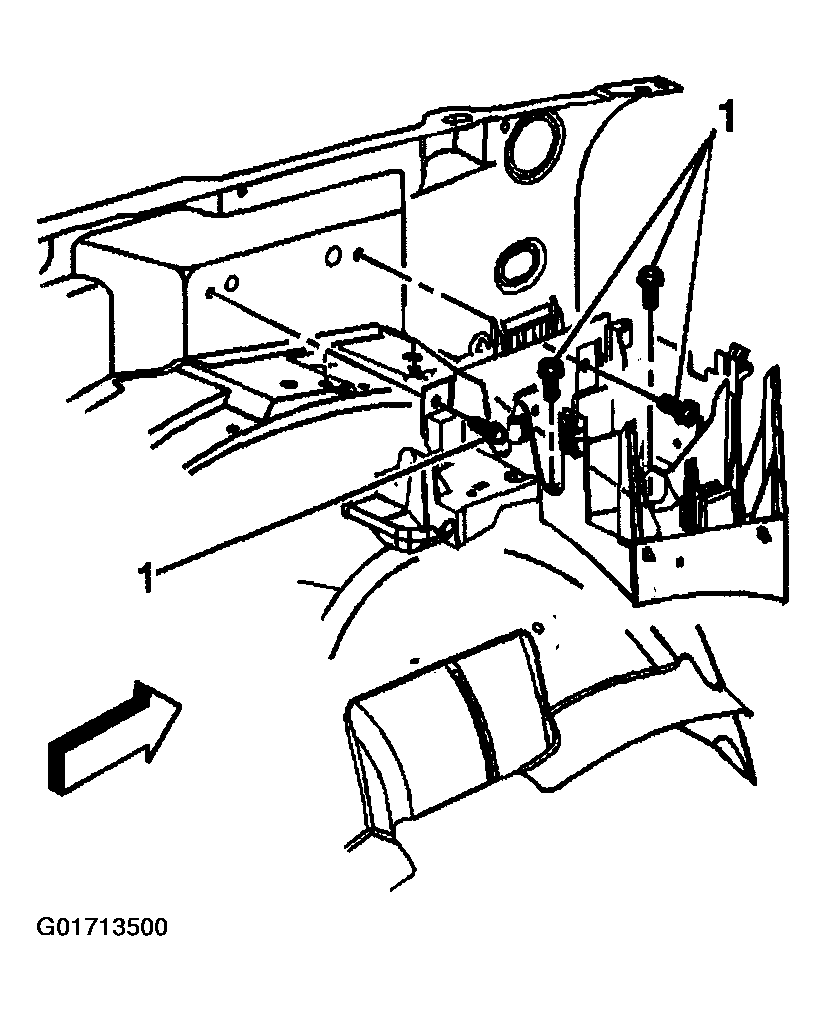

    Fig 5: Engine Electrical Center Bracket Retaining Bolt
    G01713500Courtesy of GENERAL MOTORS CORP.
