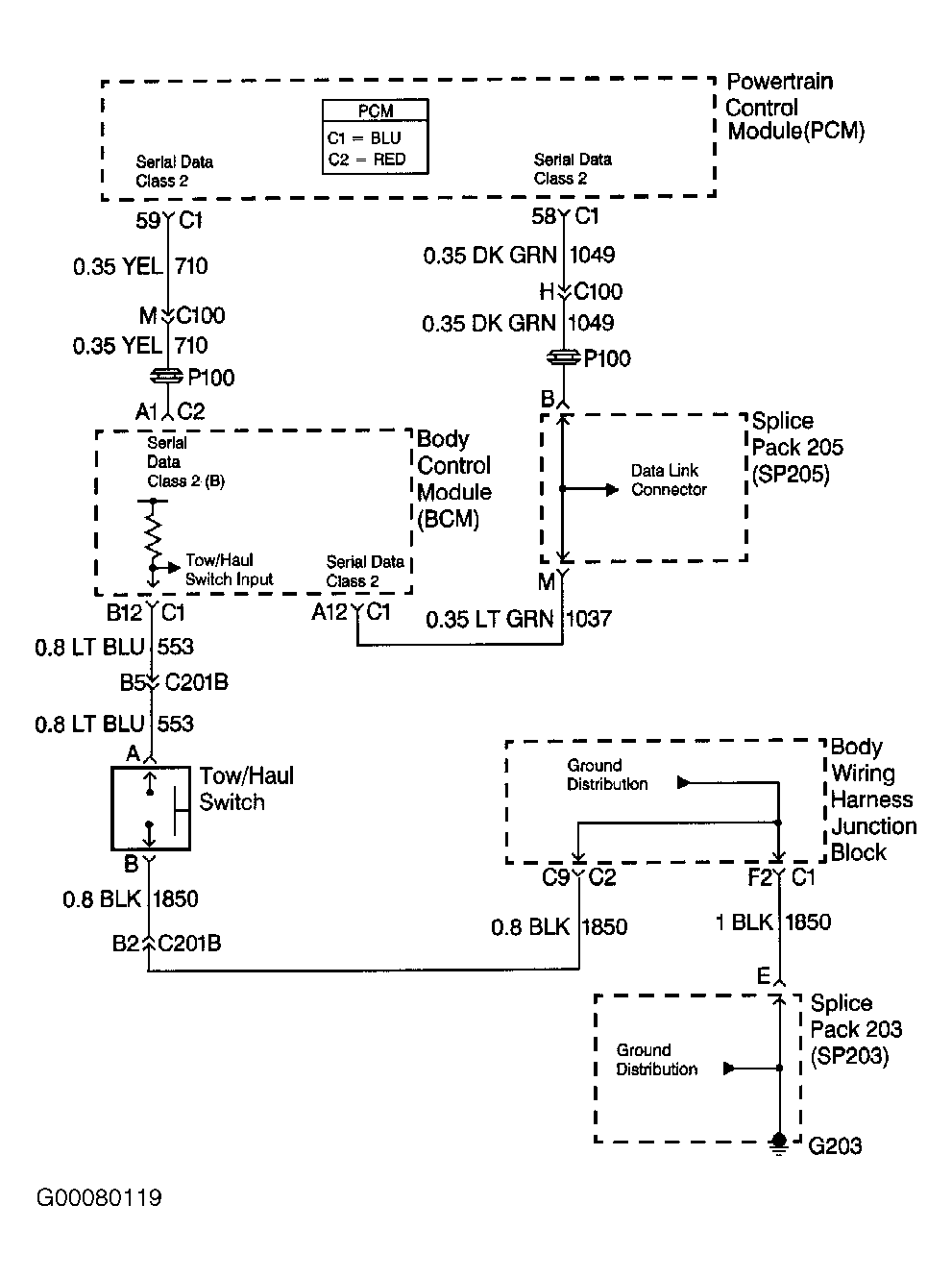

Fig 1: Tow/Haul Mode System Wiring Diagram (Sierra, Sierra HD, Silverado, Silverado HD, Suburban & Yukon XL)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Transmission Electronic Control System Wiring Diagram (Sierra, Sierra HD, Silverado, Silverado HD, Suburban & Yukon XL - 6.0L)
Fig 3: Transmission Electronic Control System Wiring Diagram (Avalanche, Suburban & Yukon XL - 8.1L)
