Symptom Diagnosis

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 GMC Sierra, 2002 Chevrolet Suburban, and 2002 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform PRELIMINARY INSPECTION prior to diagnosing by symptom.

NOTE: Use the following symptoms to aid in preliminary diagnosis. See Fig 1-Fig 81 . If a listed symptom matches the customer's concern, check the applicable items for possible cause.

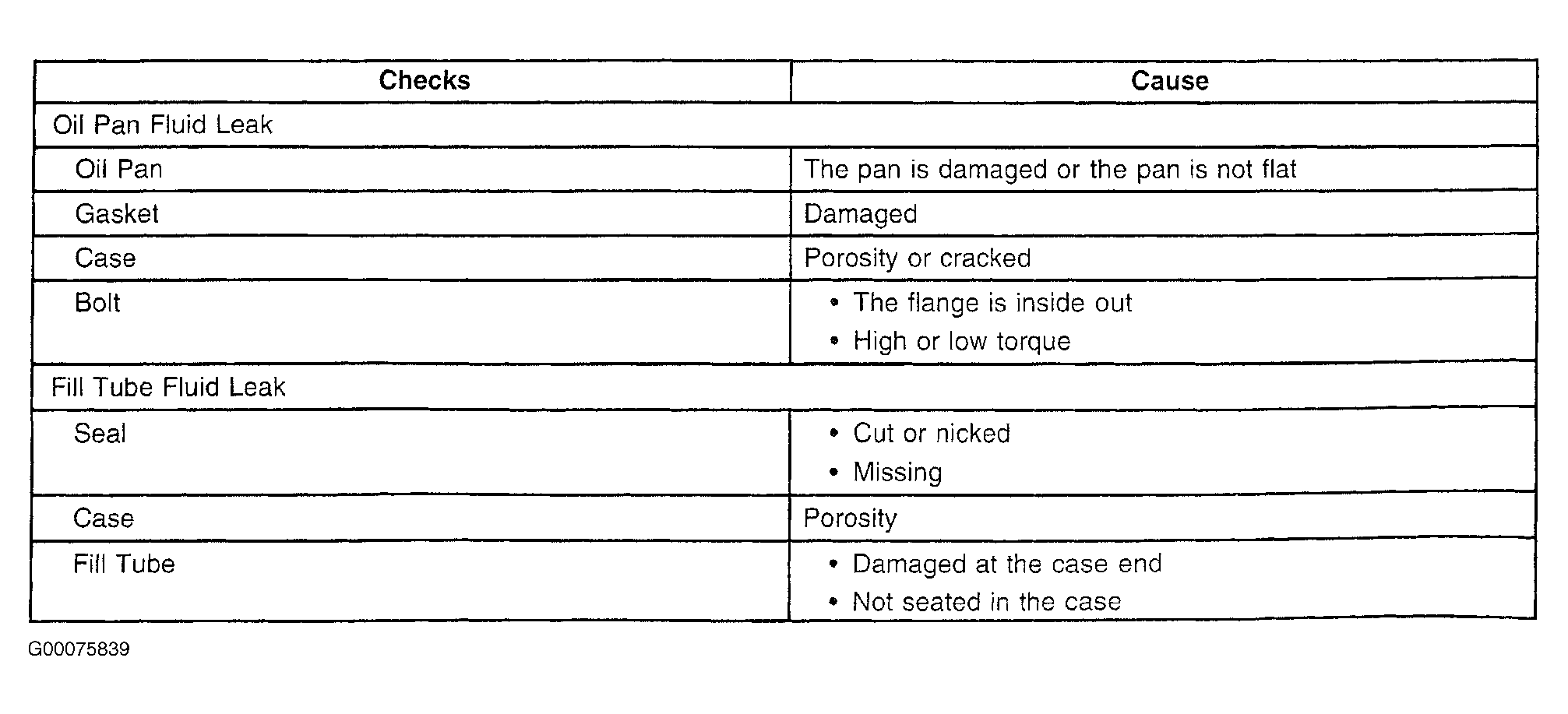

Fig 1: Transmission Fluid Leaks (1 Of 2)

G00075839

Courtesy of GENERAL MOTORS CORP.

Fig 2: Transmission Fluid Leaks (2 Of 2)

G00075840

Courtesy of GENERAL MOTORS CORP.

Fig 3: High Line Pressure

G00075841

Courtesy of GENERAL MOTORS CORP.

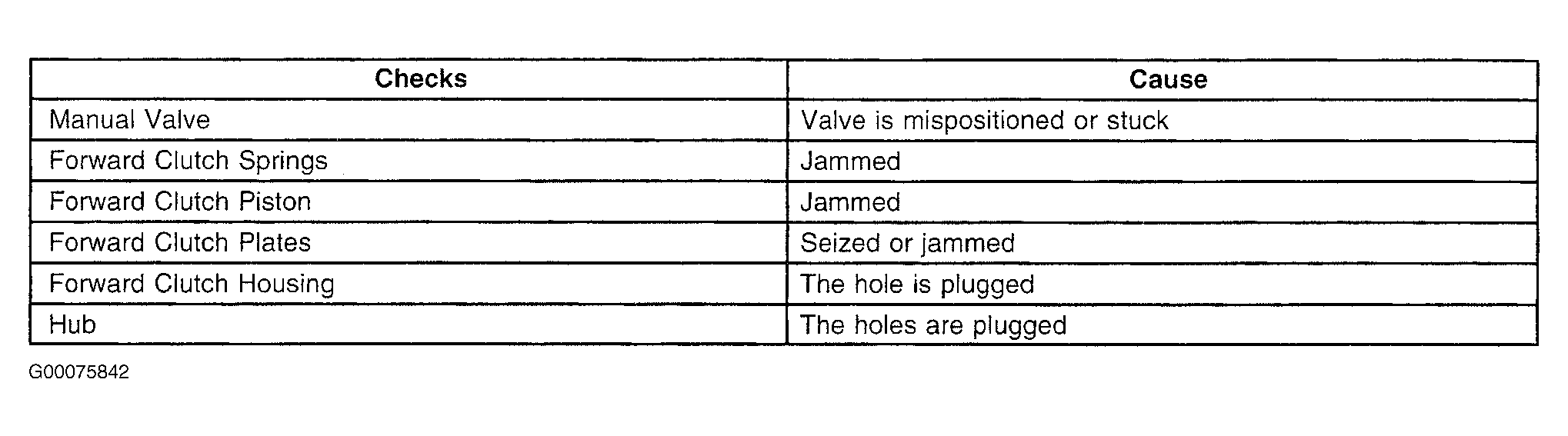

Fig 4: Forward Motion In Neutral

G00075842

Courtesy of GENERAL MOTORS CORP.

Fig 5: Inadequate Lubrication At Low Line Or Heavy Loads

G00075843

Courtesy of GENERAL MOTORS CORP.

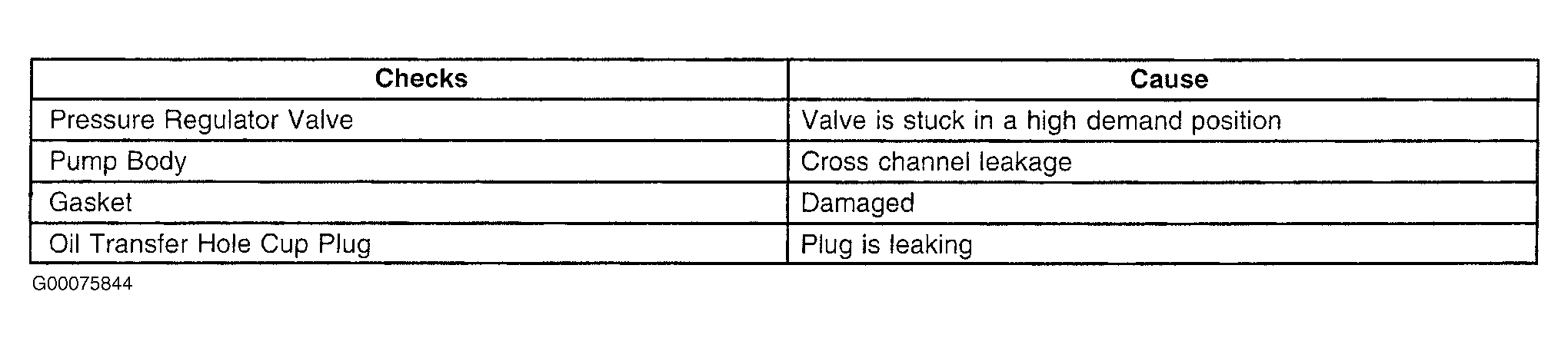

Fig 6: Inadequate Lubrication

G00075844

Courtesy of GENERAL MOTORS CORP.

Fig 7: Engine Stall In Neutral

G00075845

Courtesy of GENERAL MOTORS CORP.

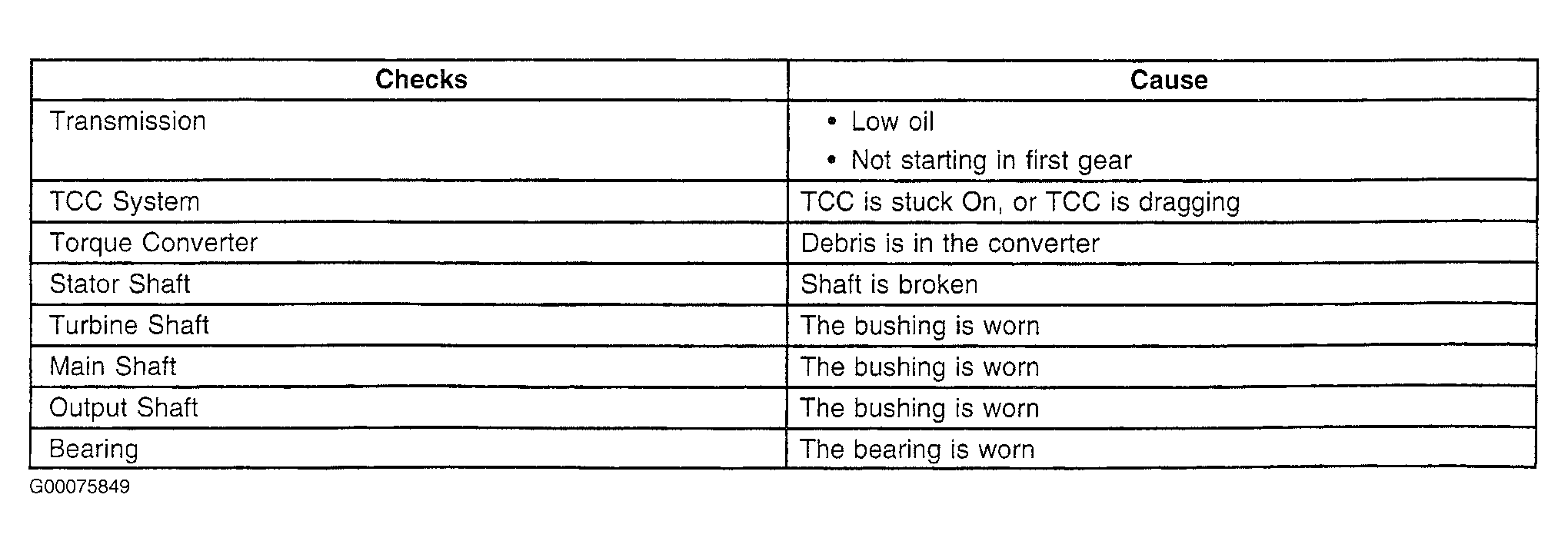

Fig 8: Loss Of Power

G00075849

Courtesy of GENERAL MOTORS CORP.

Fig 9: No Torque In Reverse & 3rd Gear

G00075848

Courtesy of GENERAL MOTORS CORP.

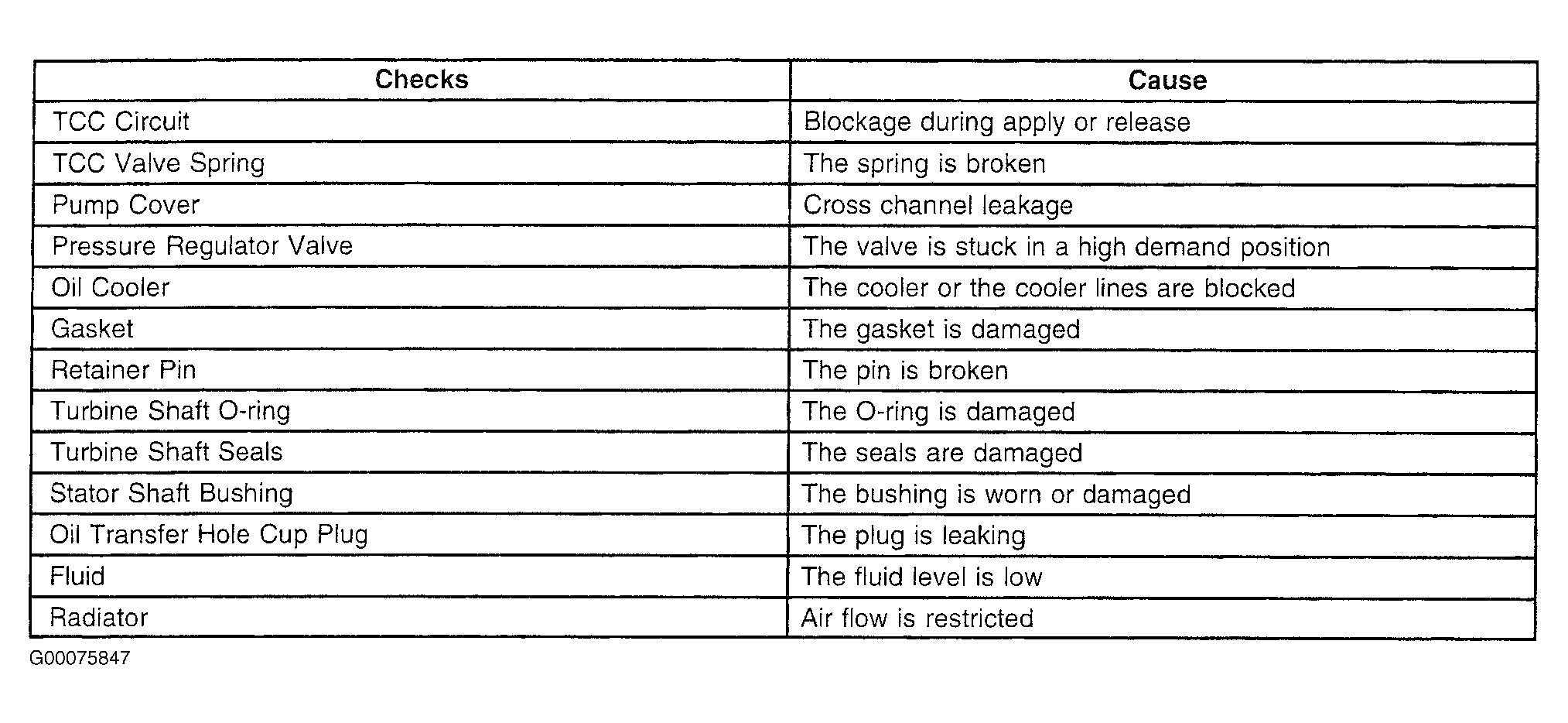

Fig 10: Transmission Overheats

G00075847

Courtesy of GENERAL MOTORS CORP.

Fig 11: Transmission Overheats At Wide Open Throttle

G00075846

Courtesy of GENERAL MOTORS CORP.

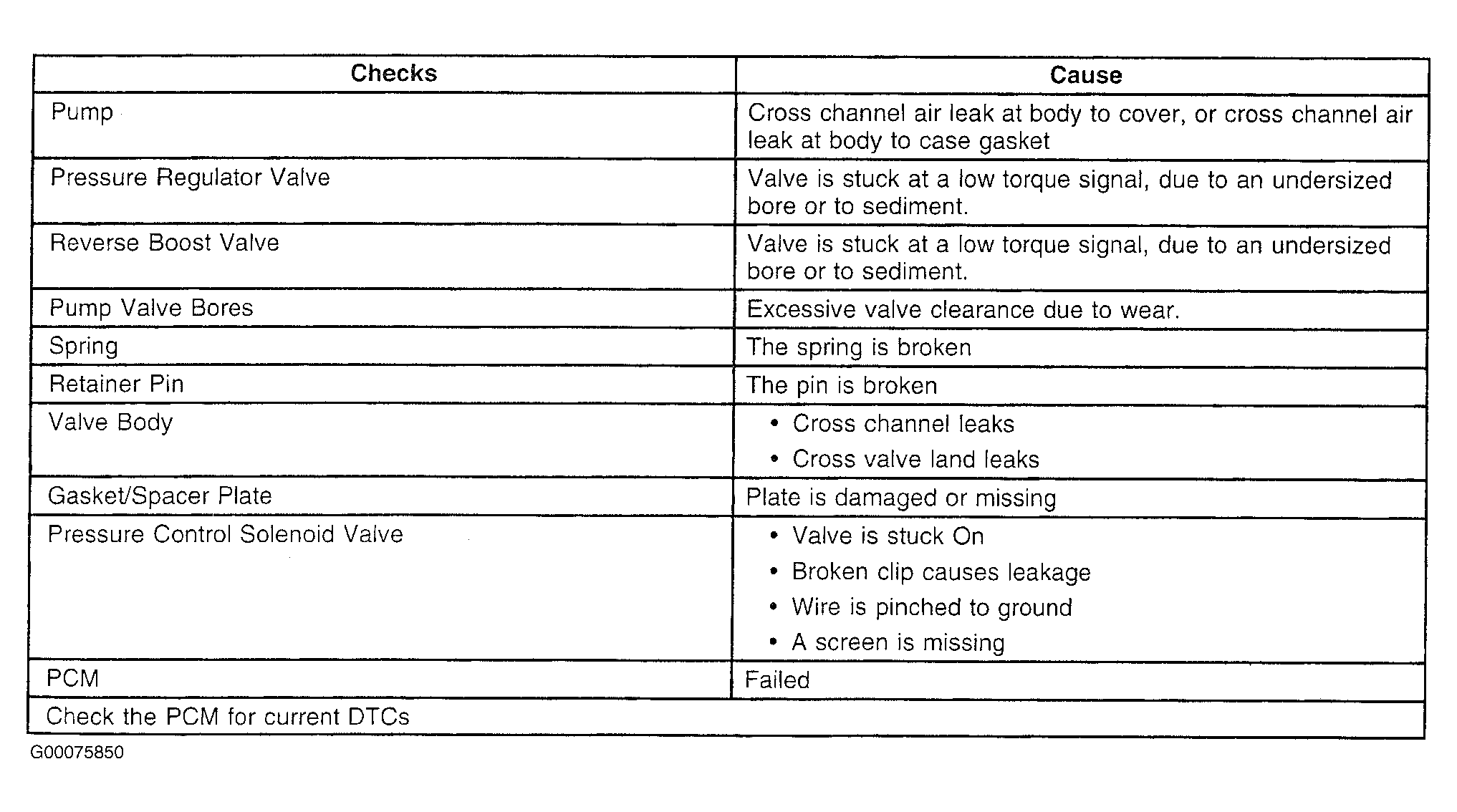

Fig 12: Low Line Pressure

G00075850

Courtesy of GENERAL MOTORS CORP.

Fig 13: Engine Starts In Gear

G00075851

Courtesy of GENERAL MOTORS CORP.

Fig 14: Shift Lever Indicates Wrong Gear

G00075852

Courtesy of GENERAL MOTORS CORP.

Fig 15: No Gear Selection

G00080089

Courtesy of GENERAL MOTORS CORP.

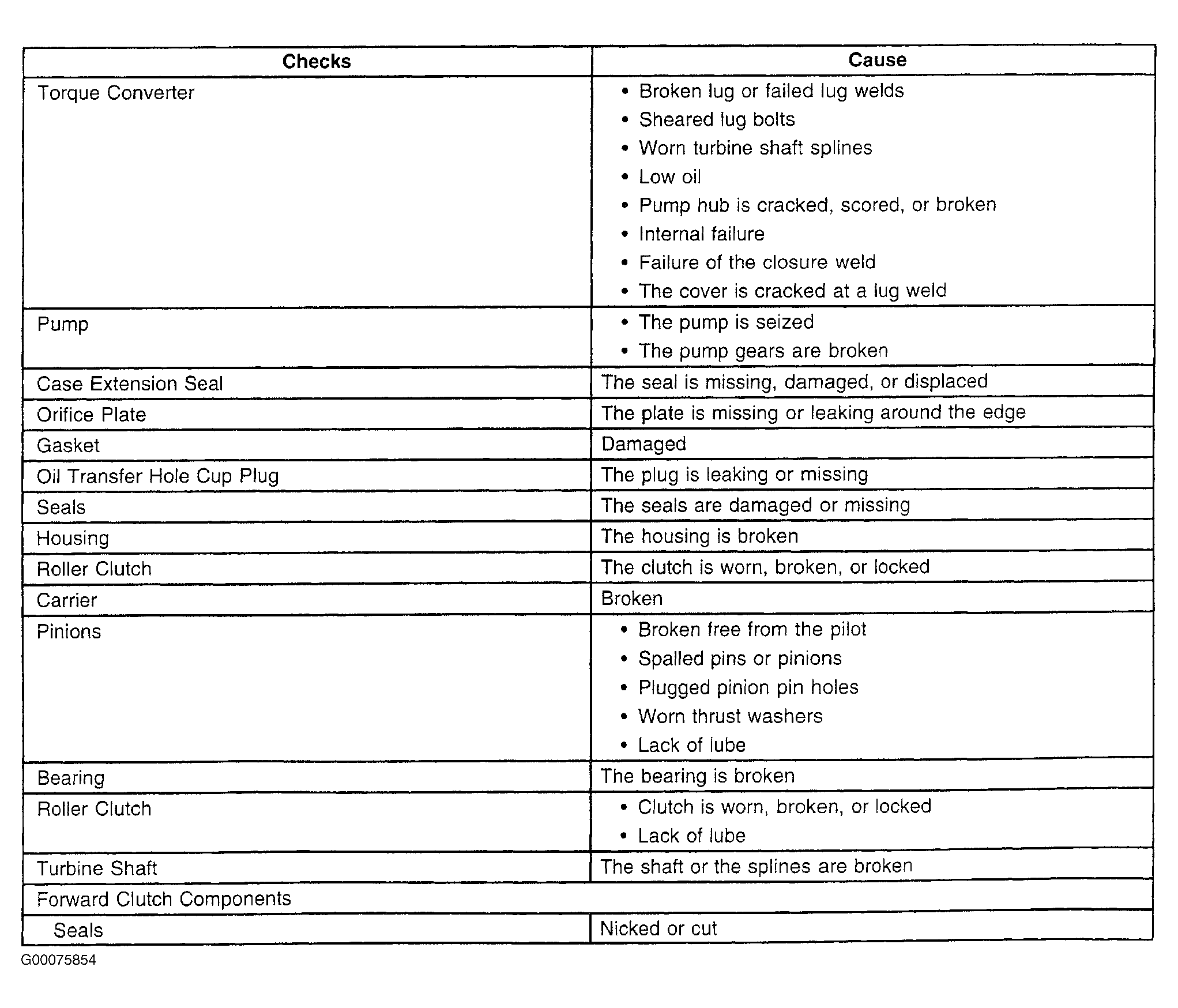

Fig 16: Loss Of Drive (1 Of 2)

G00075854

Courtesy of GENERAL MOTORS CORP.

Fig 17: Loss Of Drive (2 Of 2)

G00075855

Courtesy of GENERAL MOTORS CORP.

Fig 18: No Park

G00075856

Courtesy of GENERAL MOTORS CORP.

Fig 19: Remains In Park

G00075857

Courtesy of GENERAL MOTORS CORP.

Fig 20: Difficult To Shift Out Of Park

G00075858

Courtesy of GENERAL MOTORS CORP.

Fig 21: Does Not Stay In Park

G00075859

Courtesy of GENERAL MOTORS CORP.

Fig 22: No Reverse

G00075860

Courtesy of GENERAL MOTORS CORP.

Fig 23: No 1st Gear - "D1"

G00075861

Courtesy of GENERAL MOTORS CORP.

Fig 24: No 2nd Gear - "D1"

G00075862

Courtesy of GENERAL MOTORS CORP.

Fig 25: No Overrun Braking - "D1"

G00075863

Courtesy of GENERAL MOTORS CORP.

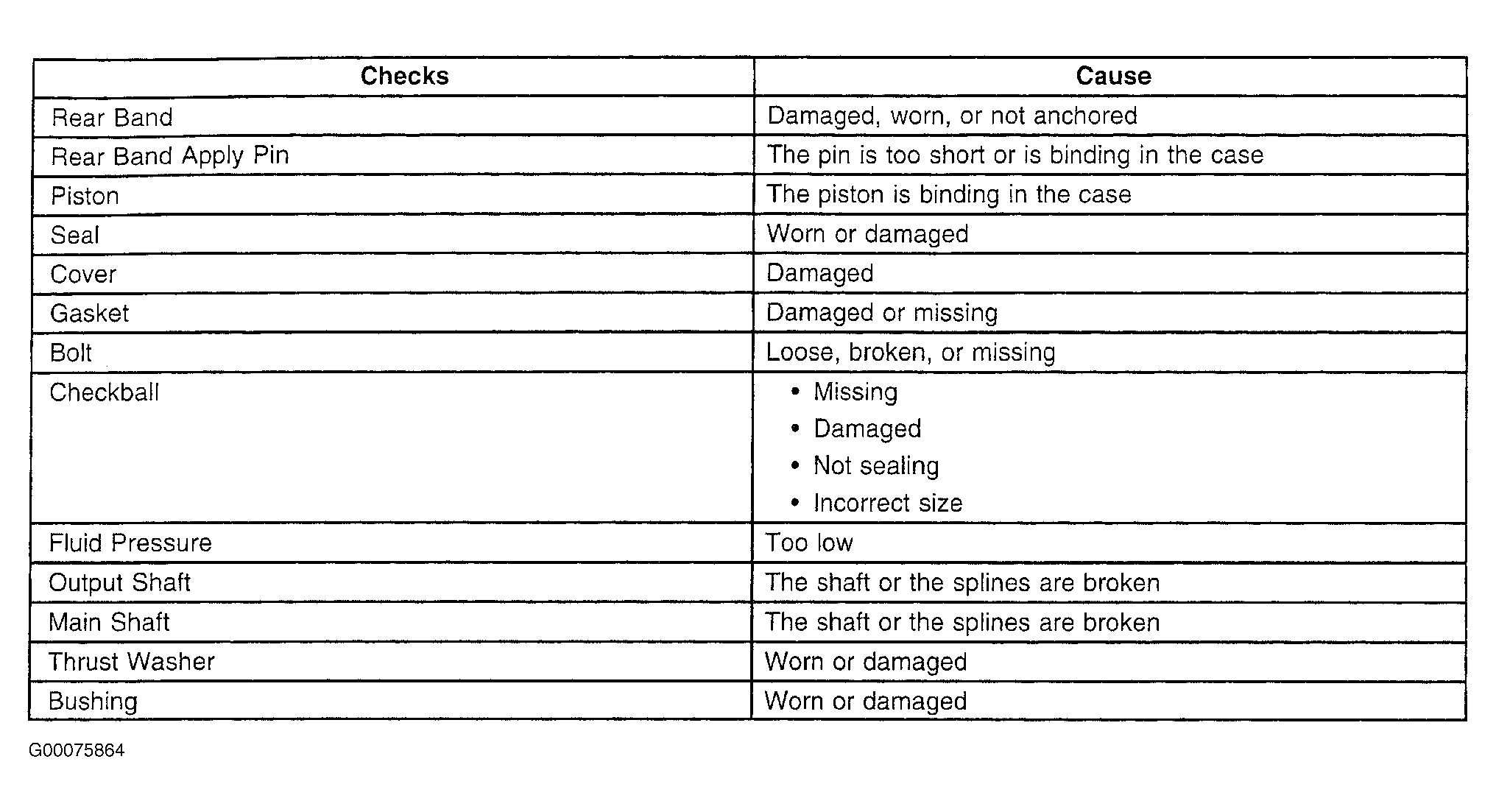

Fig 26: No Engine Braking - "D1"

G00075864

Courtesy of GENERAL MOTORS CORP.

Fig 27: No 1st Gear - "D2"

G00075865

Courtesy of GENERAL MOTORS CORP.

Fig 28: No 2nd Gear - "D2"

G00075866

Courtesy of GENERAL MOTORS CORP.

Fig 29: No Overrun Braking - "D2"

G00075867

Courtesy of GENERAL MOTORS CORP.

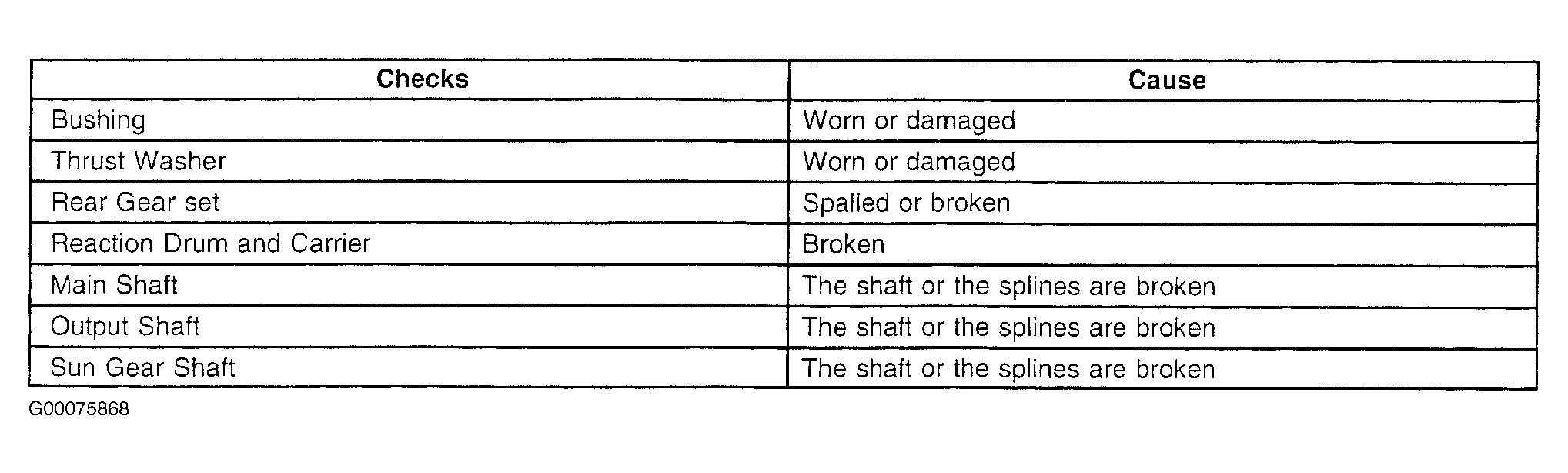

Fig 30: No Engine Braking - "D2"

G00075868

Courtesy of GENERAL MOTORS CORP.

Fig 31: No 2nd Gear Engine Braking - "D2"

G00075869

Courtesy of GENERAL MOTORS CORP.

Fig 32: No 1st Gear - "D3"

G00075870

Courtesy of GENERAL MOTORS CORP.

Fig 33: No 2nd Gear - "D3"

G00075871

Courtesy of GENERAL MOTORS CORP.

Fig 34: No 3rd Gear - "D3"

G00075872

Courtesy of GENERAL MOTORS CORP.

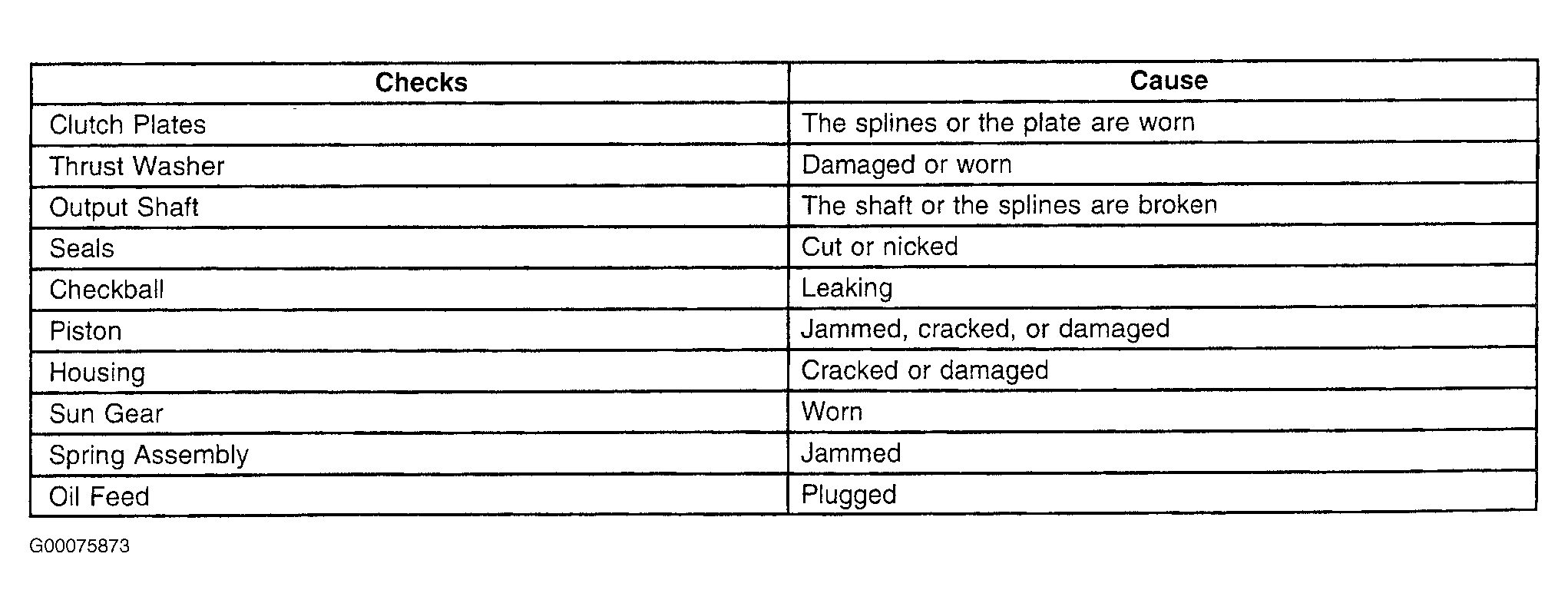

Fig 35: No Overrun Braking - "D3"

G00075873

Courtesy of GENERAL MOTORS CORP.

Fig 36: No Engine Braking - "D3"

G00080037

Courtesy of GENERAL MOTORS CORP.

Fig 37: No 1st Gear - "D4"

G00080038

Courtesy of GENERAL MOTORS CORP.

Fig 38: 1st Gear Only - "D4"

G00080039

Courtesy of GENERAL MOTORS CORP.

Fig 39: 1st & 2nd Gear Only - "D4"

G00080040

Courtesy of GENERAL MOTORS CORP.

Fig 40: 2nd Gear Only - "D4"

G00080041

Courtesy of GENERAL MOTORS CORP.

Fig 41: 2nd & 3rd Gear Only - "D4"

G00080042

Courtesy of GENERAL MOTORS CORP.

Fig 42: 1st & 4th Gear Only - "D4"

G00080043

Courtesy of GENERAL MOTORS CORP.

Fig 43: 3rd & 4th Gear Only - "D4"

G00080044

Courtesy of GENERAL MOTORS CORP.

Fig 44: No 2nd Gear - "D4"

G00080045

Courtesy of GENERAL MOTORS CORP.

Fig 45: No 3rd Gear - "D4"

G00080046

Courtesy of GENERAL MOTORS CORP.

Fig 46: No 4th Gear - "D4"

G00080047

Courtesy of GENERAL MOTORS CORP.

Fig 47: No Torque Converter Clutch Apply

G00080048

Courtesy of GENERAL MOTORS CORP.

Fig 48: Soft Torque Converter Clutch Apply

G00080049

Courtesy of GENERAL MOTORS CORP.

Fig 49: Torque Converter Clutch Slipping

G00080050

Courtesy of GENERAL MOTORS CORP.

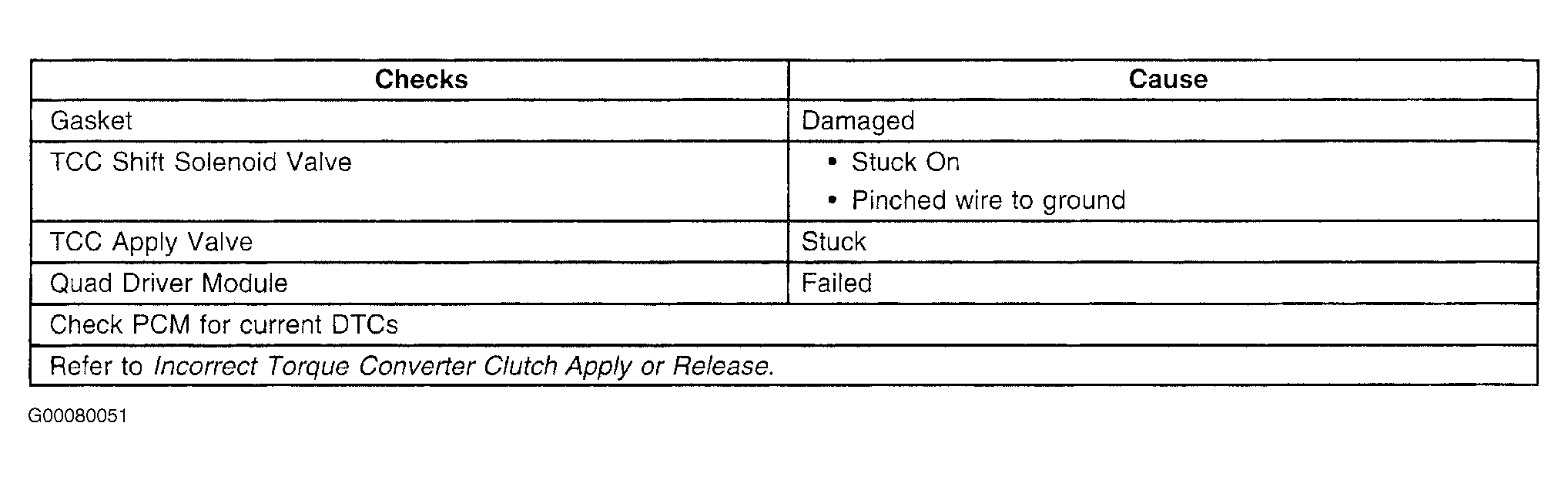

Fig 50: Torque Converter Clutch Stuck On

G00080051

Courtesy of GENERAL MOTORS CORP.

Fig 51: Incorrect Torque Converter Clutch Apply Or Release

G00080052

Courtesy of GENERAL MOTORS CORP.

Fig 52: Converter Ballooning

G00080053

Courtesy of GENERAL MOTORS CORP.

Fig 53: No Torque Multiplication

G00080054

Courtesy of GENERAL MOTORS CORP.

Fig 54: Fluid Foaming

G00080055

Courtesy of GENERAL MOTORS CORP.

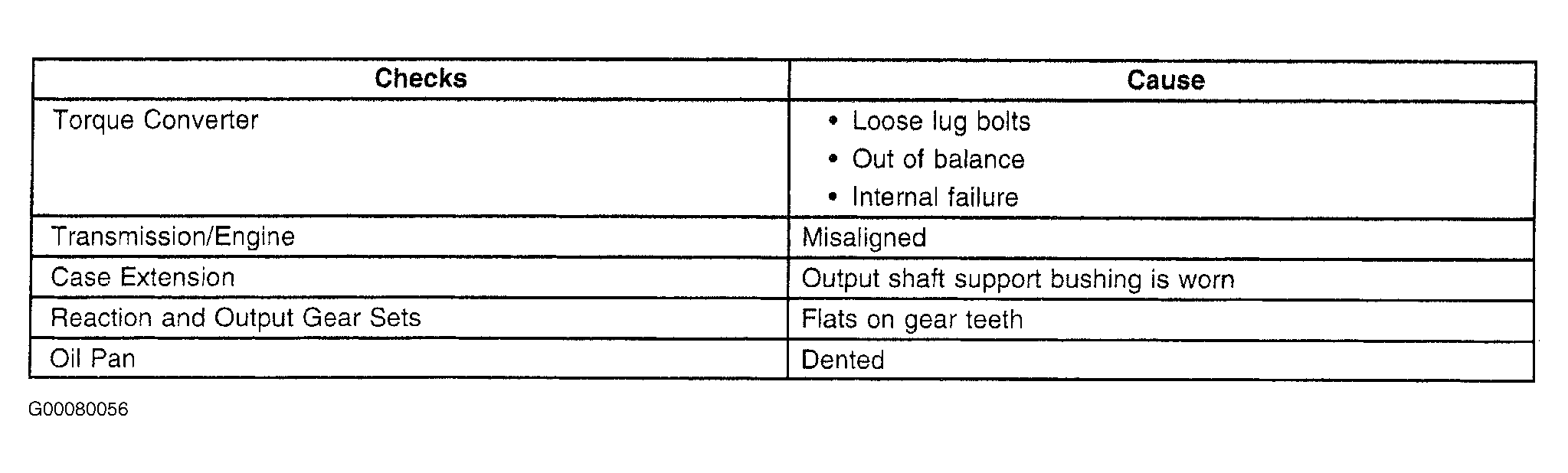

Fig 55: Noise

G00080056

Courtesy of GENERAL MOTORS CORP.

Fig 56: Engine Stall

G00080057

Courtesy of GENERAL MOTORS CORP.

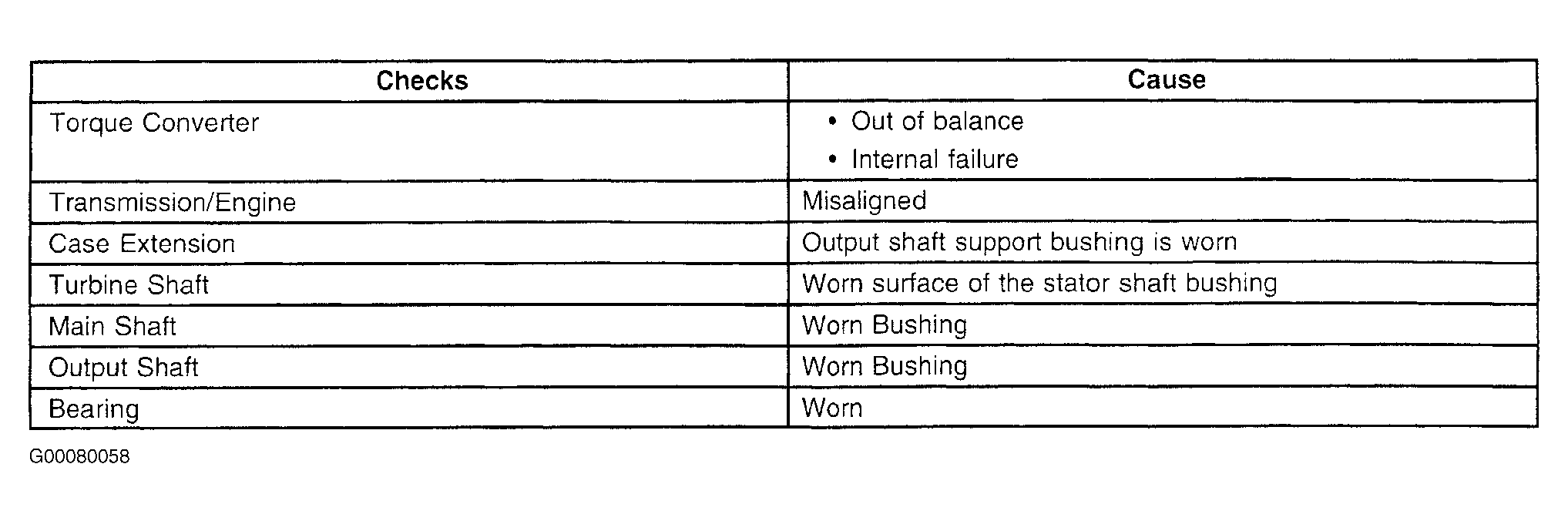

Fig 57: Vibration

G00080058

Courtesy of GENERAL MOTORS CORP.

Fig 58: Oil Out The Vent Tube

G00080059

Courtesy of GENERAL MOTORS CORP.

Fig 59: No Torque In 2nd Gear

G00080060

Courtesy of GENERAL MOTORS CORP.

Fig 60: 2nd Gear Starts

G00080061

Courtesy of GENERAL MOTORS CORP.

Fig 61: 3rd Gear Starts

G00080062

Courtesy of GENERAL MOTORS CORP.

Fig 62: 4th Gear Starts

G00080063

Courtesy of GENERAL MOTORS CORP.

Fig 63: Erratic Shift Quality

G00080064

Courtesy of GENERAL MOTORS CORP.

Fig 64: Transmission Slips

G00080065

Courtesy of GENERAL MOTORS CORP.

Fig 65: Case Extension Bearing/Seal Failed

G00080066

Courtesy of GENERAL MOTORS CORP.

Fig 66: Inaccurate Shift Points

G00080067

Courtesy of GENERAL MOTORS CORP.

Fig 67: Harsh Shifts

G00080068

Courtesy of GENERAL MOTORS CORP.

Fig 68: Harsh Shift "D" To "R"

G00080069

Courtesy of GENERAL MOTORS CORP.

Fig 69: Harsh Shift "3" To "4"

G00080070

Courtesy of GENERAL MOTORS CORP.

Fig 70: Harsh Shift "4" To "3"

G00080071

Courtesy of GENERAL MOTORS CORP.

Fig 71: Harsh Shift "D4" To "D3", "D2", Or "D1"

G00080072

Courtesy of GENERAL MOTORS CORP.

Fig 72: Soft Shifts

G00080073

Courtesy of GENERAL MOTORS CORP.

Fig 73: Soft Shifts Into "R"

G00080074

Courtesy of GENERAL MOTORS CORP.

Fig 74: Soft Shift "R" Into "D"

G00080075

Courtesy of GENERAL MOTORS CORP.

Fig 75: Soft Shift "2" To "1"

G00080076

Courtesy of GENERAL MOTORS CORP.

Fig 76: Soft Shift "2" To "3"

G00080077

Courtesy of GENERAL MOTORS CORP.

Fig 77: Soft Shift "3" To "2"

G00080078

Courtesy of GENERAL MOTORS CORP.

Fig 78: Soft Shift "D3" To "D2"

G00080079

Courtesy of GENERAL MOTORS CORP.

Fig 79: Delayed Shift "1" To "2"

G00080080

Courtesy of GENERAL MOTORS CORP.

Fig 80: No "D2" To "D1"

G00080081

Courtesy of GENERAL MOTORS CORP.

Fig 81: No "D3" To "D2"

G00080082

Courtesy of GENERAL MOTORS CORP.
