Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the lid latch assembly to the rear compartment lid.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the fasteners in order to retain the lid latch assembly to the rear compartment lid.

    Tighten

    Tighten the fasteners 10.5 N.m (93 lb in).

  3. Connect the electrical connectors to the lid latch assembly.
  4. Install the rear compartment lid trim. Refer to Compartment Lid Trim Replacement - Rear  .

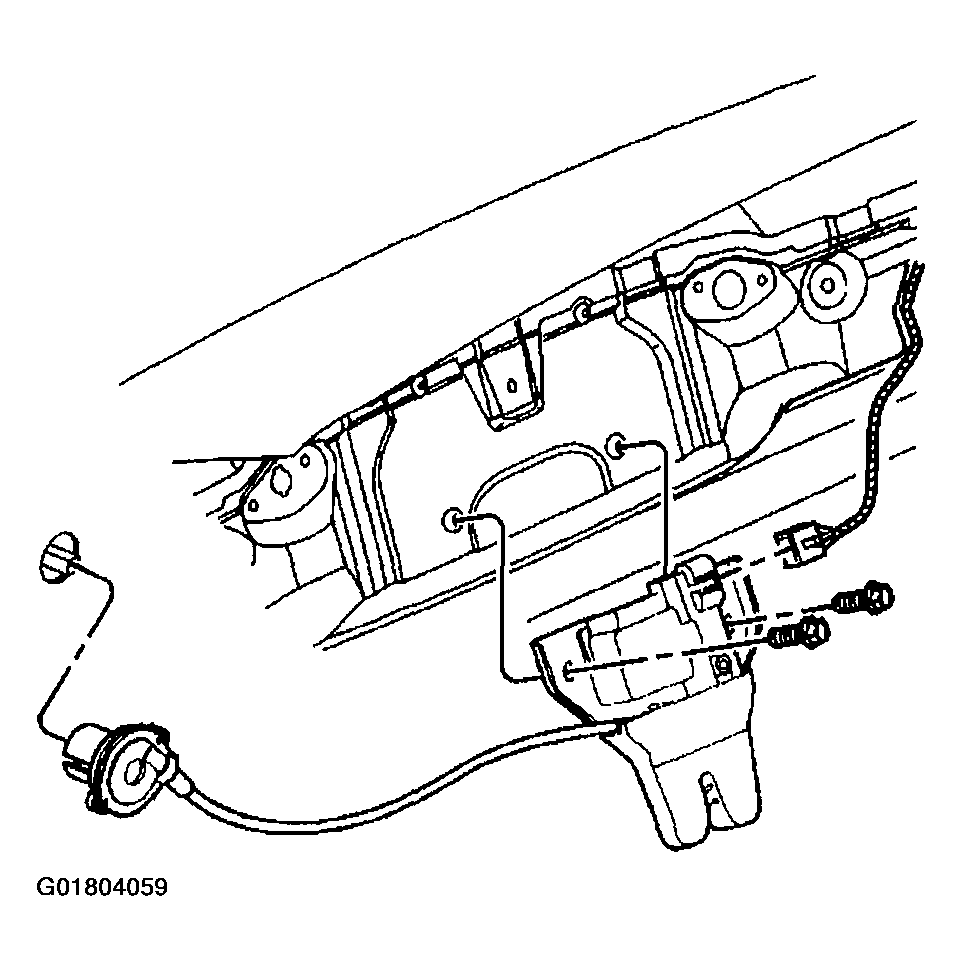

    Fig 1: Installing Lid Latch Assembly
    G01804059Courtesy of GENERAL MOTORS CORP.
