WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

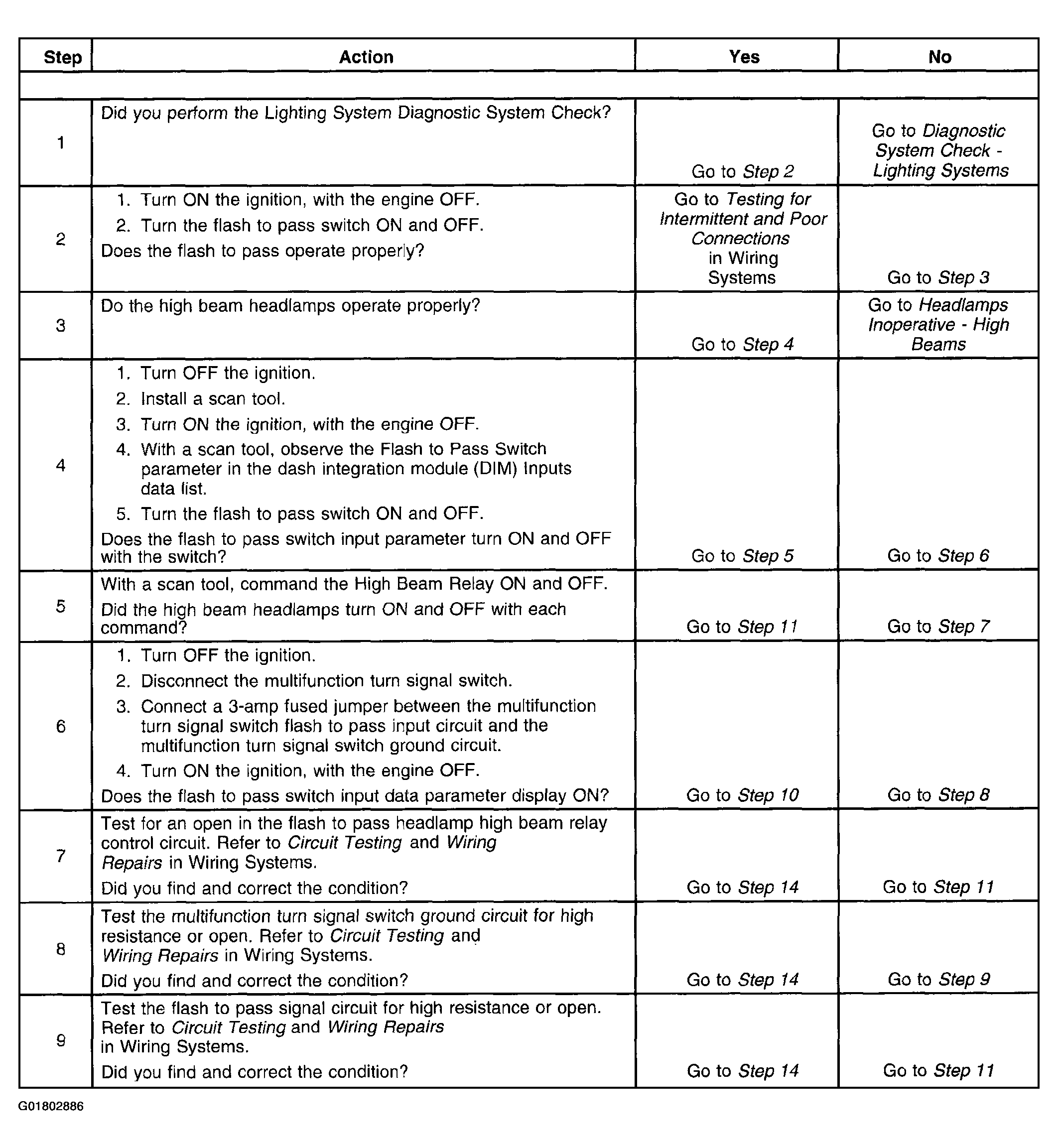

Fig 1: Headlamps Inoperative - Flash to Pass (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

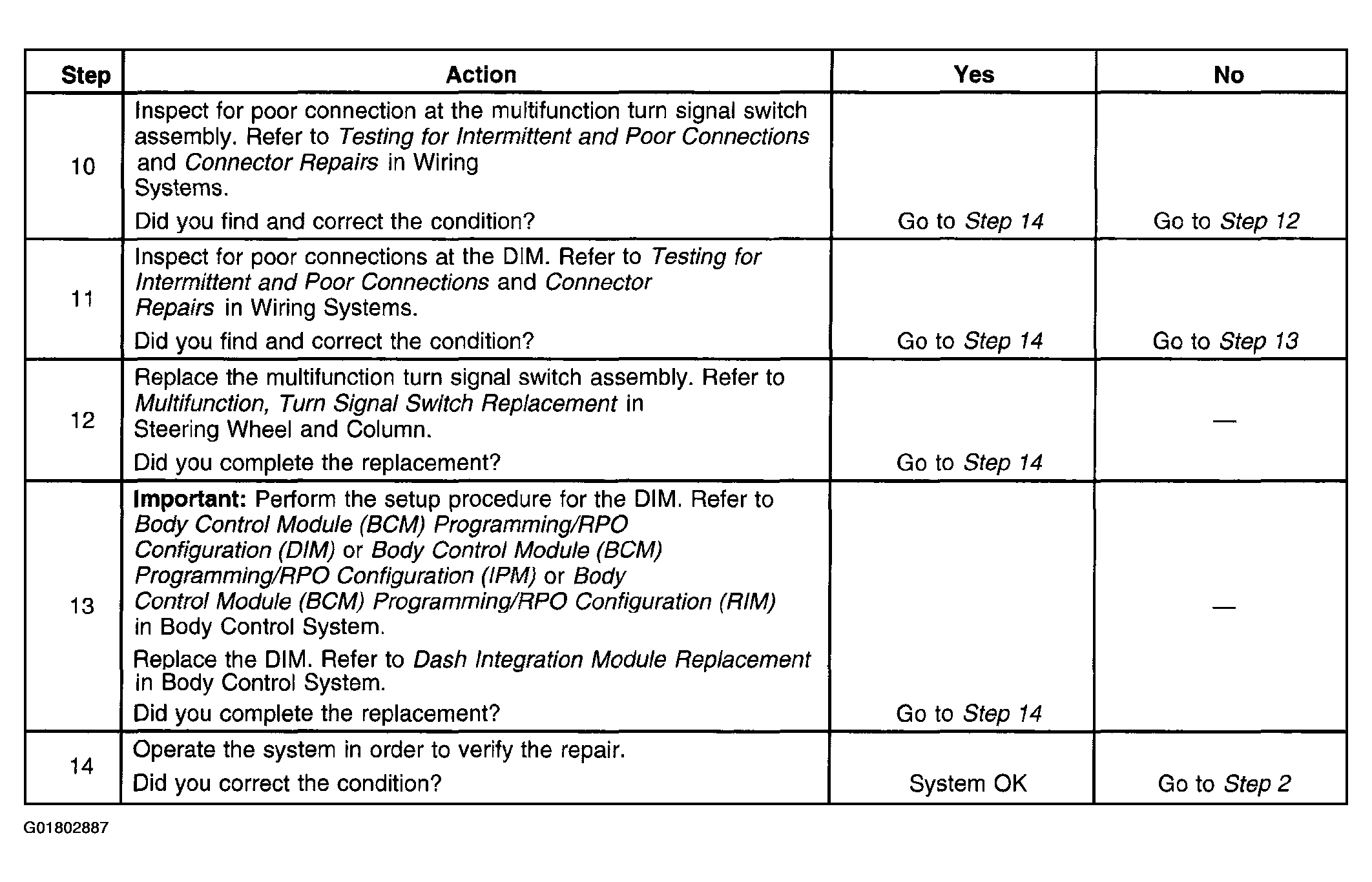

Fig 2: Headlamps Inoperative - Flash to Pass (2 Of 2)
