Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove left and right windshield garnish moldings. Refer to GARNISH MOLDING REPLACEMENT -- WINDSHIELD PILLAR In Interior Trim.
  2. Remove the defroster grille. Refer to Defroster Grille Replacement  .
  3. Remove the right IP trim panel. Refer to Trim Plate Replacement - IP Accessory Right  .
  4. Remove the IP cluster trim plate bezel. Refer to Trim Plate Bezel Replacement - IP Cluster  .
  5. Remove the fasteners that secure the IP upper trim pad (1) to the IP retainer.
  6. Lift the pad upward in order to remove from the IP.

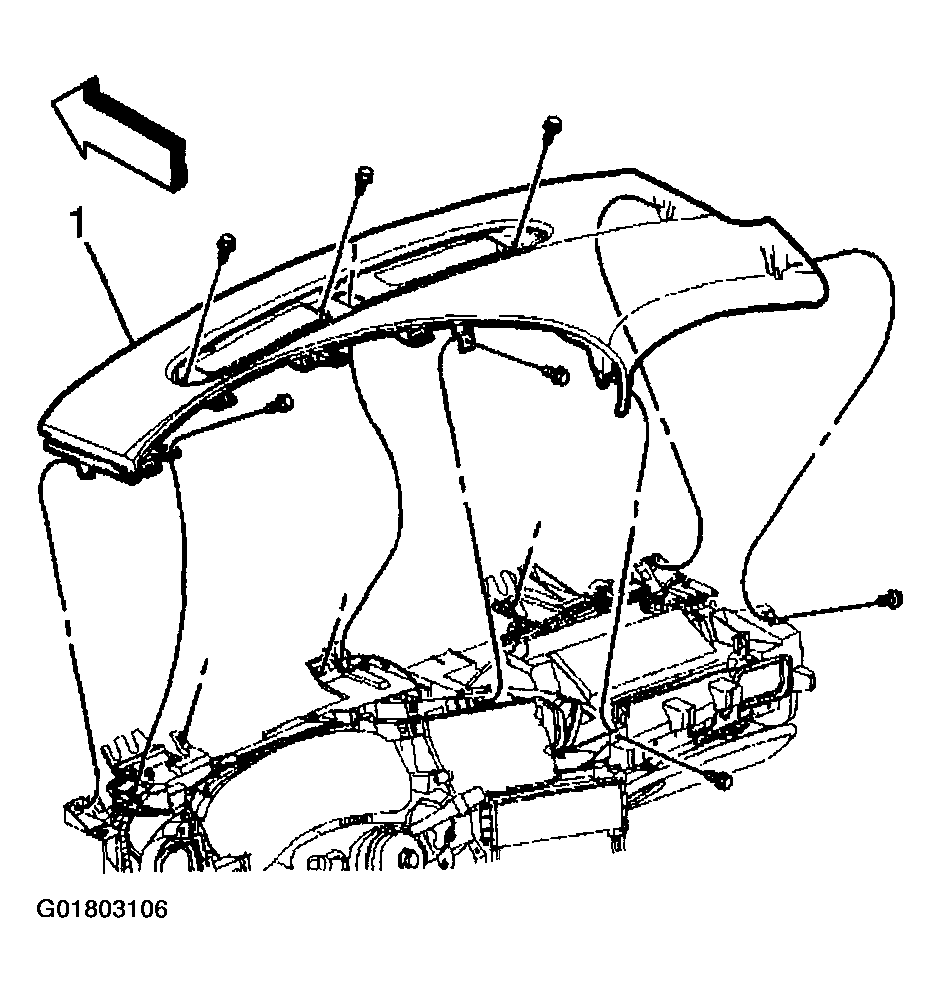

    Fig 1: Removing IP Upper Trim Pad
    G01803106Courtesy of GENERAL MOTORS CORP.
