Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left IP endcap. Refer to Instrument Panel (IP) Outer Trim Cover Replacement  .
  2. Remove the knee bolster compartment by pulling past the holding tab (1) and lifting up.

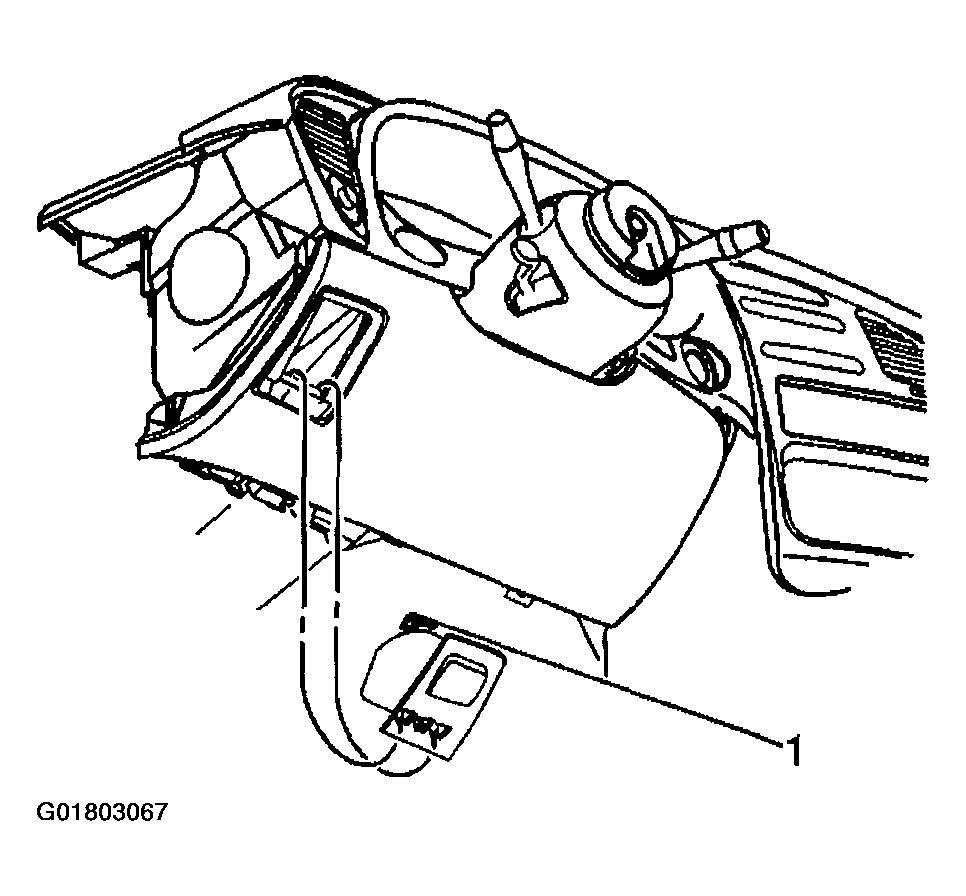

    Fig 1: Removing Knee Bolster Holding Tab
    G01803067Courtesy of GENERAL MOTORS CORP.
  3. Unsnap the knee bolster by pulling down and rearward to remove from the vehicle

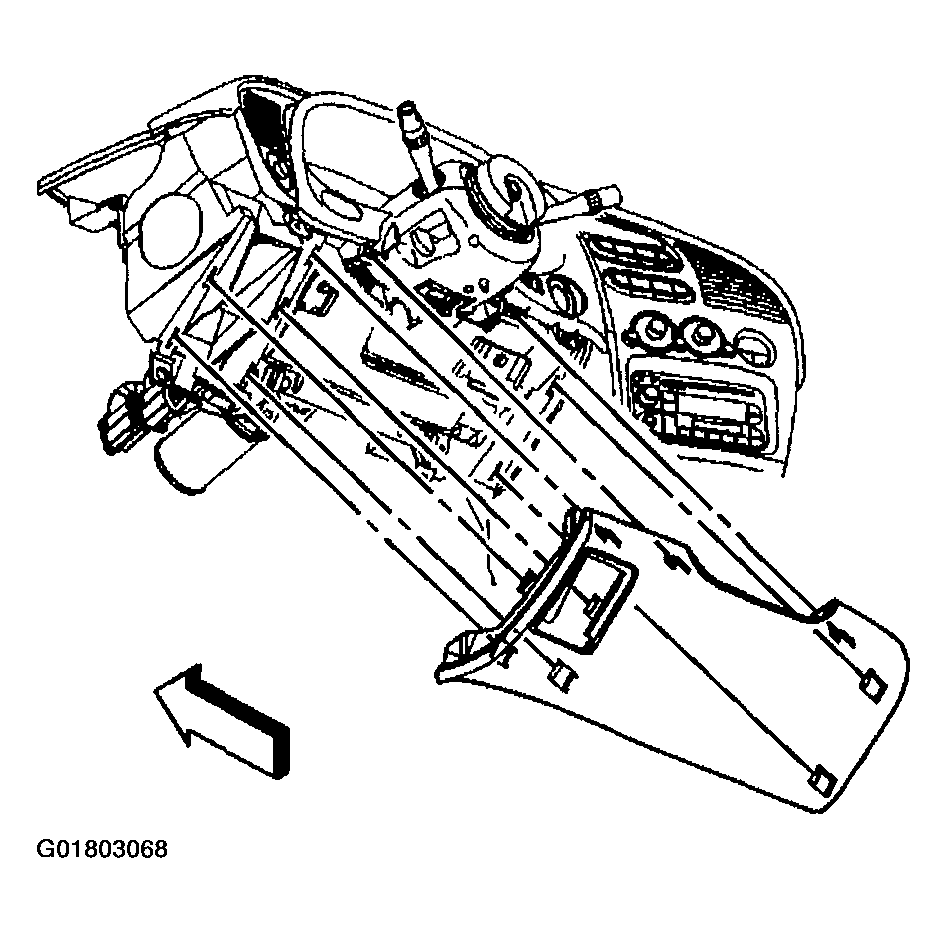

    Fig 2: Removing Knee Bolster
    G01803068Courtesy of GENERAL MOTORS CORP.
