Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the knee bolster to the IP.
  2. Push forward and up to make sure all clips snap into place.

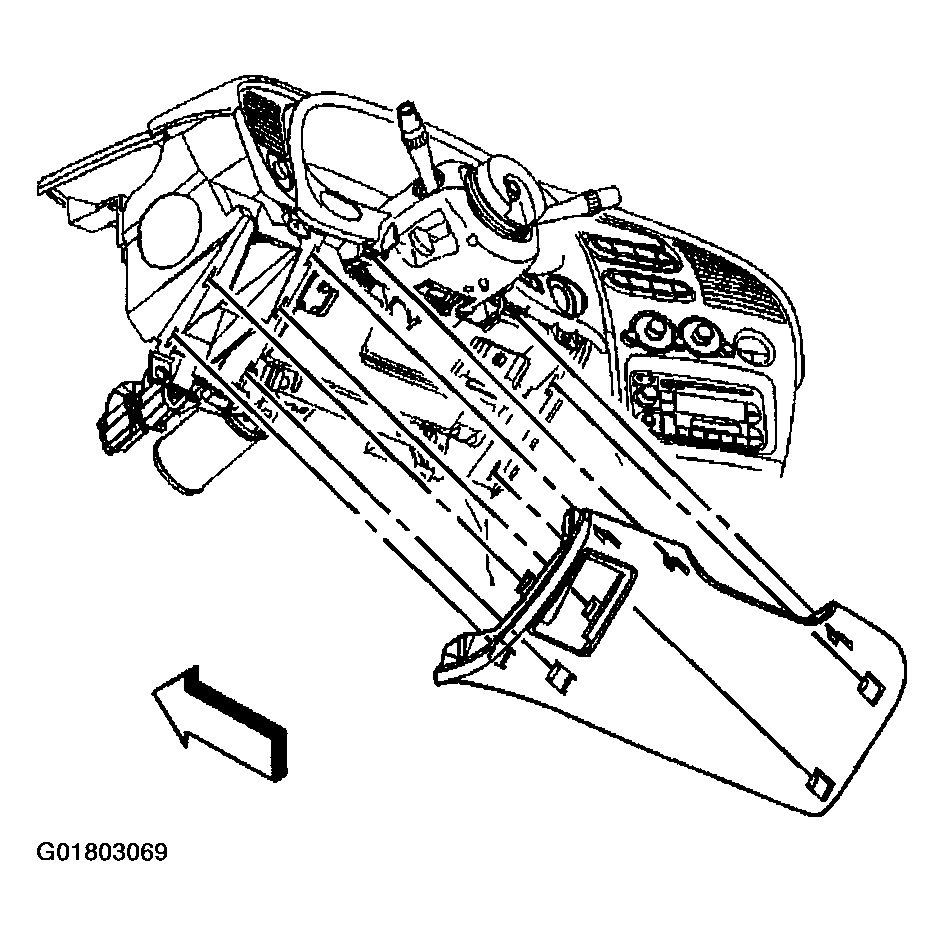

    Fig 1: Installing Knee Bolster
    G01803069Courtesy of GENERAL MOTORS CORP.
  3. Place the bottom edge of the knee bolster compartment into the opening in the knee bolster.
  4. Push inward on the knee bolster compartment until the retainer clip (1) fully engages securing the knee bolster compartment to the knee bolster.
  5. Install the left IP endcap. Refer to Instrument Panel (IP) Outer Trim Cover Replacement  .

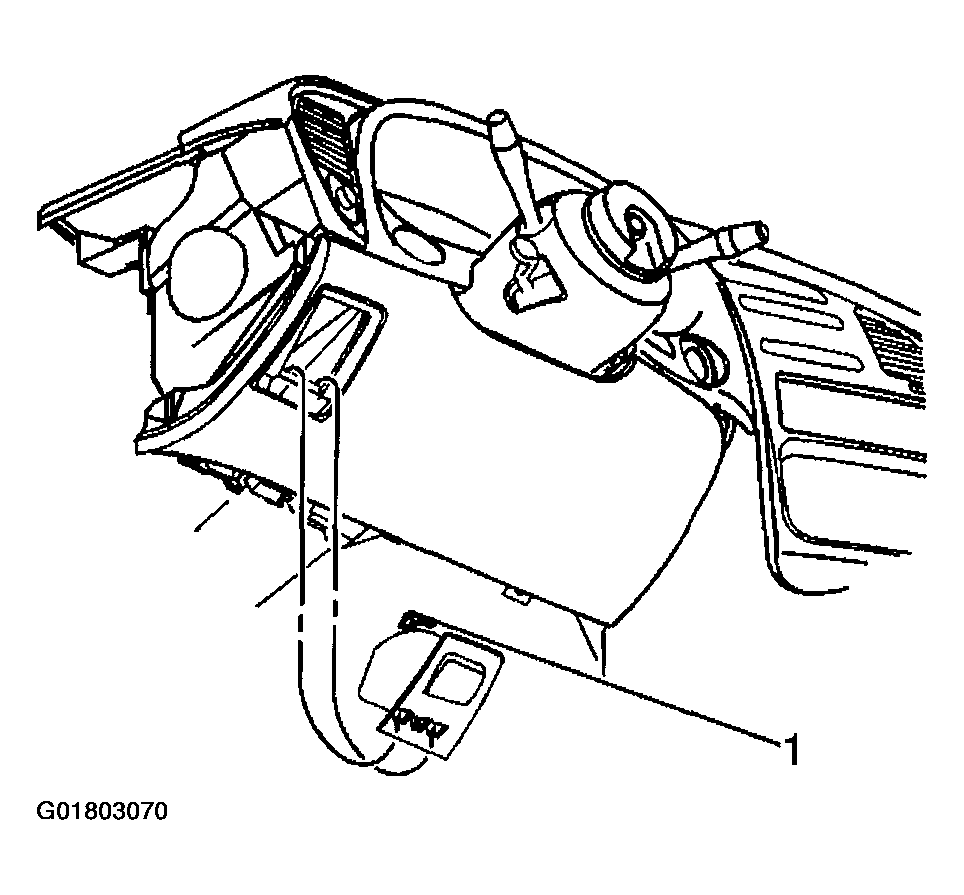

    Fig 2: Installing Knee Bolster Holding Tab
    G01803070Courtesy of GENERAL MOTORS CORP.
