Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the door and the pin (1) to the console.
  2. Install the two clips to the pin (1).
  3. Install the rear console trim plate. Refer to Trim Plate Replacement - Console Rear  .

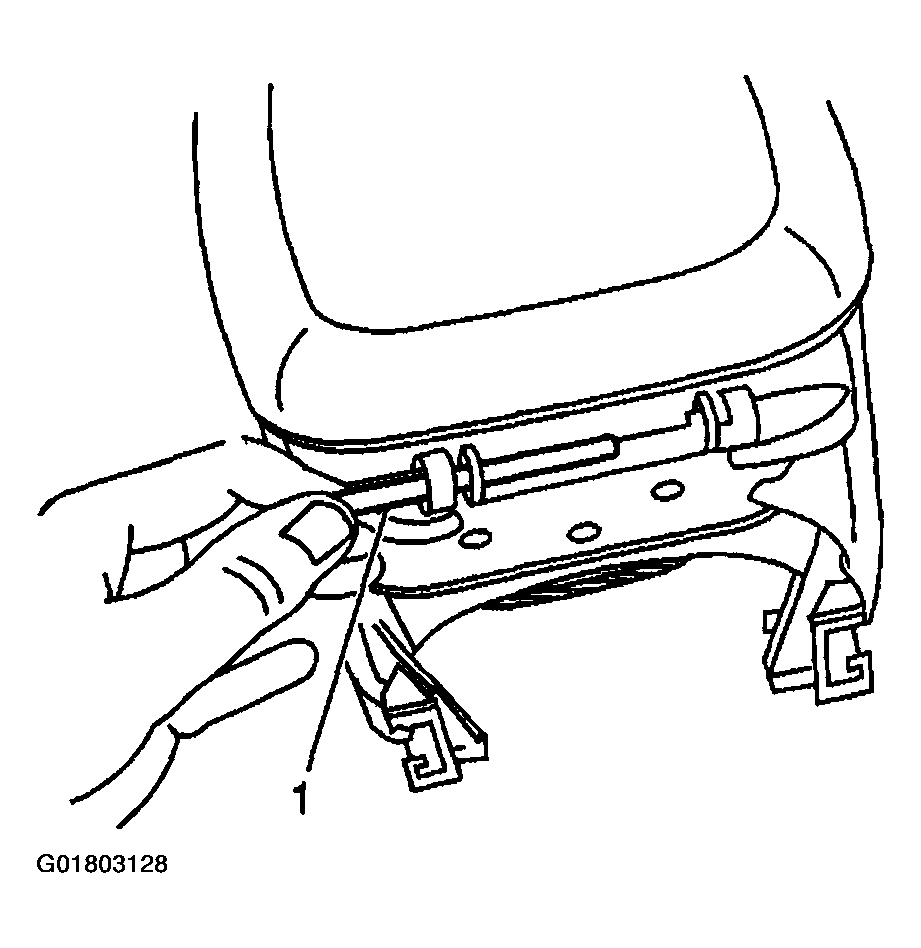

    Fig 1: Locating Door Assembly Pin
    G01803128Courtesy of GENERAL MOTORS CORP.
