Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the center air deflector to the opening in the IP.
  2. Push the air deflector into the IP until the retaining clips engage securing the air deflector to the IP.
  3. Install the IP center trim panel. Refer to Trim Panel Replacement - IP Center  .

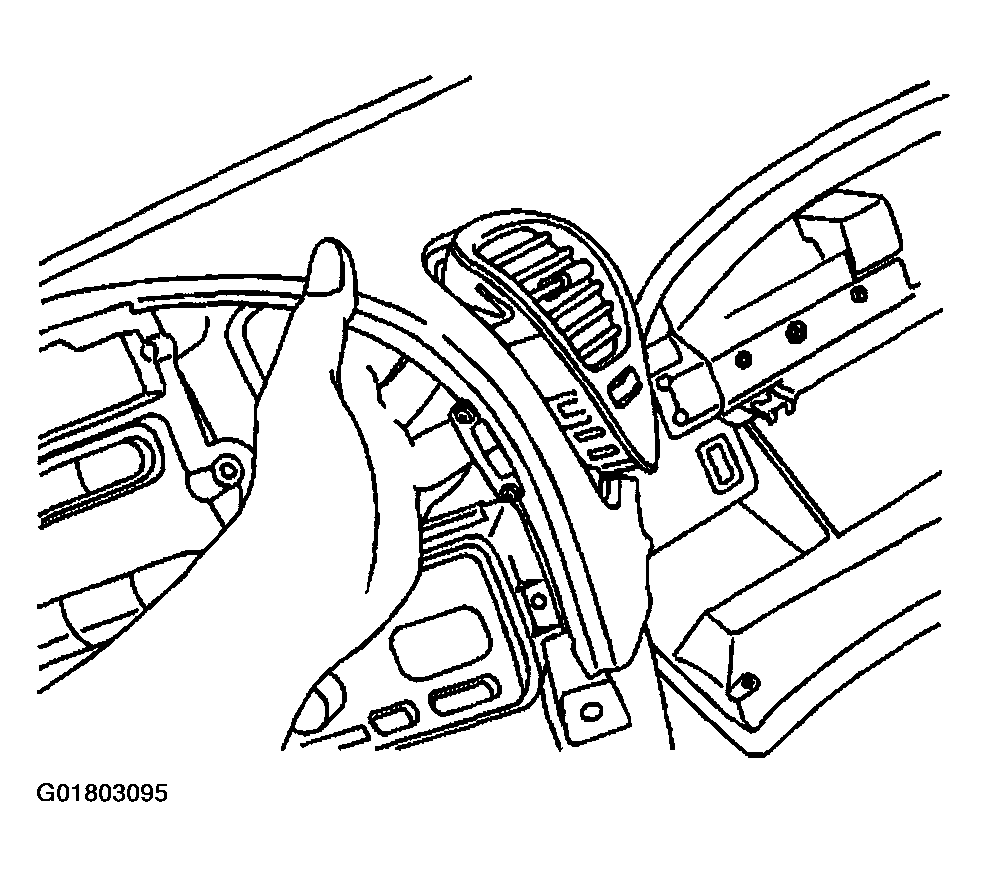

    Fig 1: Installing Center Air Deflector
    G01803095Courtesy of GENERAL MOTORS CORP.
