Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console trim plate. Refer to Trim Plate Replacement - Console  .
  2. Remove the fasteners (1) from the cup holder.
  3. Remove the cup holder.

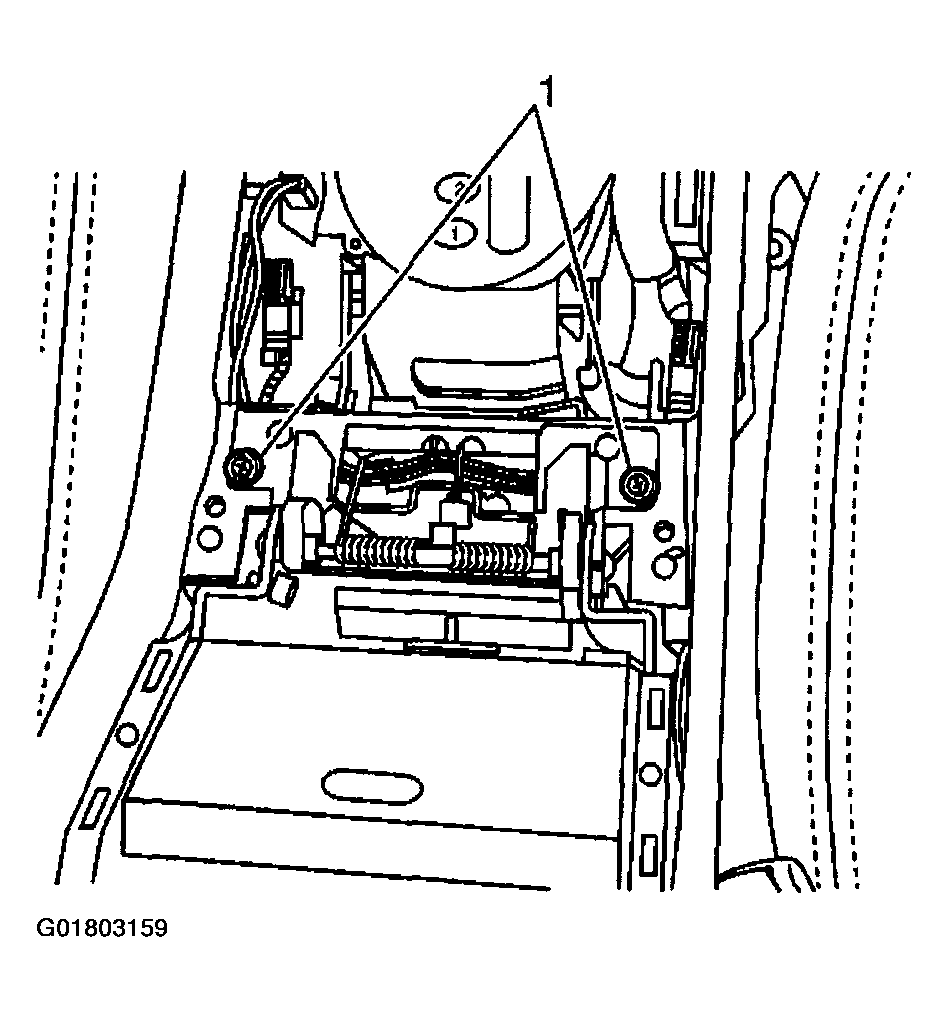

    Fig 1: Removing Cup Holder
    G01803159Courtesy of GENERAL MOTORS CORP.
