Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR HANDLING CAUTION .
  1. Disable the SIR system. Refer to DISABLING SYSTEM .
  2. Remove the front carpet retainer. Refer to Carpet Retainer Replacement - Front  .
  3. Remove the rear carpet retainer. Refer to Carpet Retainer Replacement  .
  4. Pull out on the center trim panel in order to disengage the clips.

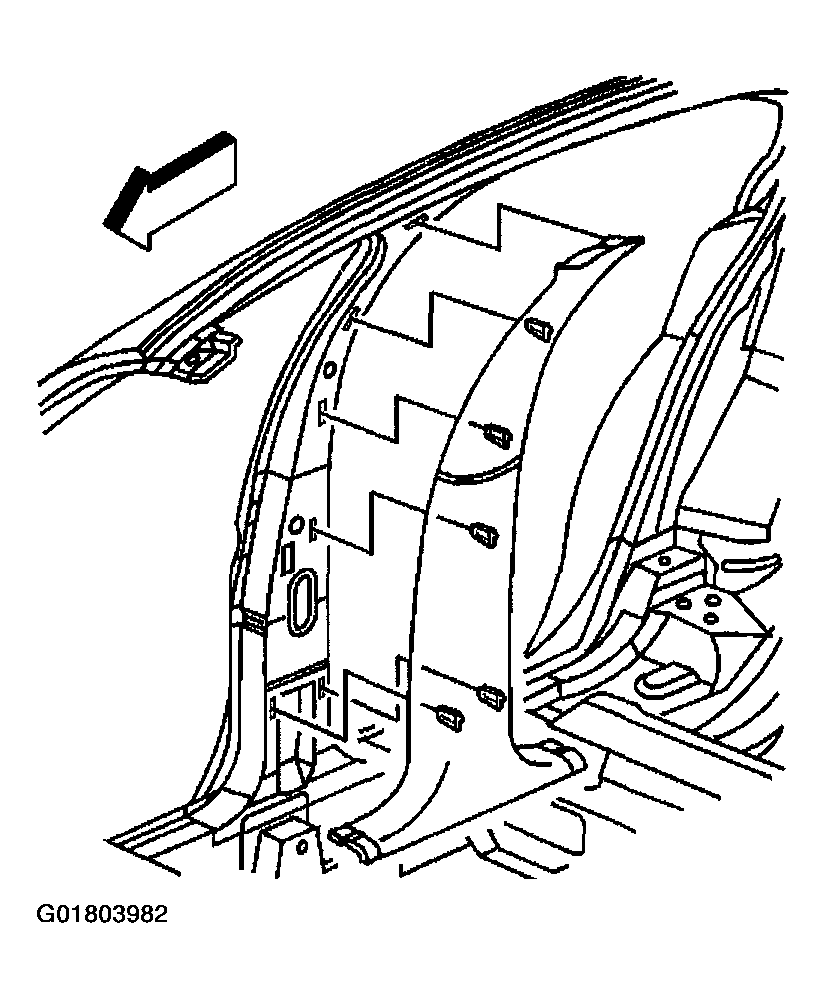

    Fig 1: Removing Center Trim Panel
    G01803982Courtesy of GENERAL MOTORS CORP.
