Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector (1) to the ambient light sensor on the underside of the trim panel.
    2. Fig 1: Installing Electrical Connector to Ambient Light Sensor
    G01697237Courtesy of GENERAL MOTORS CORP.
  2. Install the trim panel to the IP assembly.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the trim panel retaining screws. Tighten the trim panel retaining screws to 2 N.m (18 lbs in).
  4. Install the windshield pillar garnish moldings. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILLAR .

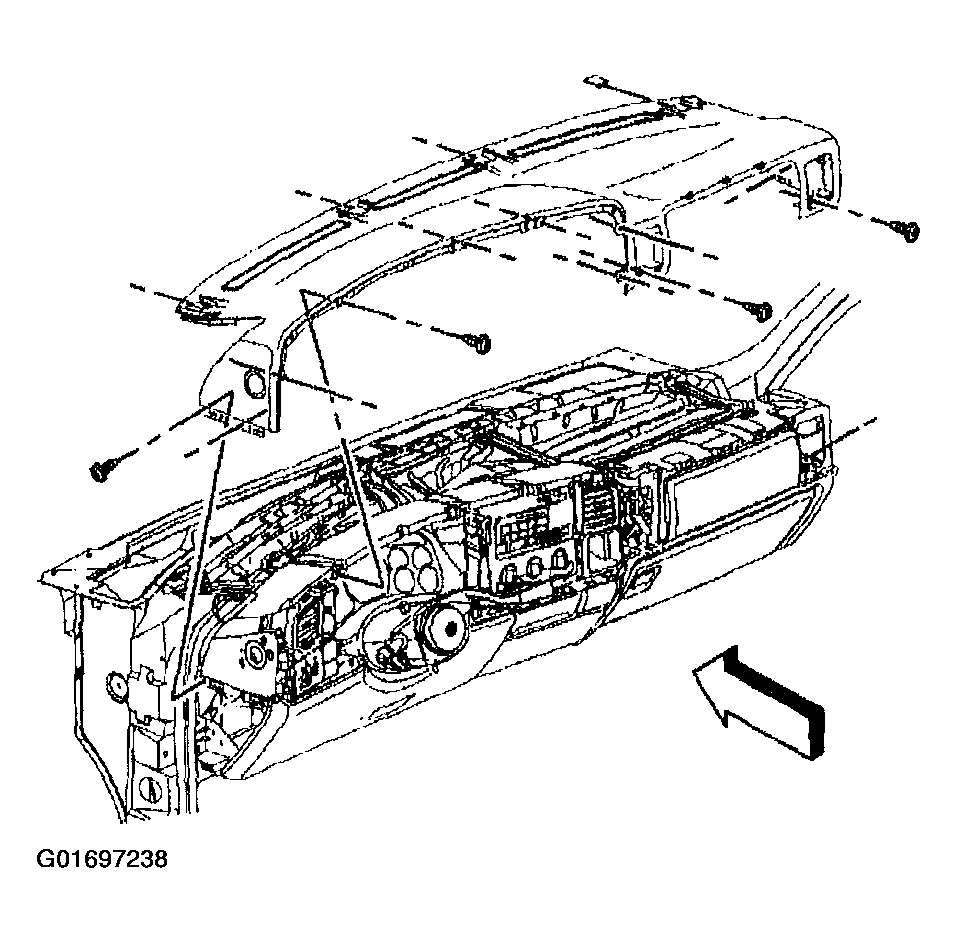

    5. Fig 2: Installing Trim Panel to IP Assembly
    G01697238Courtesy of GENERAL MOTORS CORP.
  5. Align the assist handle with the holes in the IP assembly. Push the handle in order to engage the retaining tabs.
  6. Install the right side air outlets.
    7. Fig 3: Installing Garnish Molding
    G01697239Courtesy of GENERAL MOTORS CORP.
  7. Install the end panels. The left panel is shown, and the right panel is similar.
  8. Install the IP cluster trim plate bezel. Refer to Bezel Replacement - IP Cluster .
  9. Tilt the steering wheel to the normal driving position.
  10. If the transmission is automatic, move the shift lever to the park position.
  11. Disengage the parking brake.
    12. Fig 4: Installation of Trim Plate Bezel
    G01697240Courtesy of GENERAL MOTORS CORP.
