Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new lock cylinder (2) by pressing inwards until it is seated.
  2. Install the retaining clip (1).

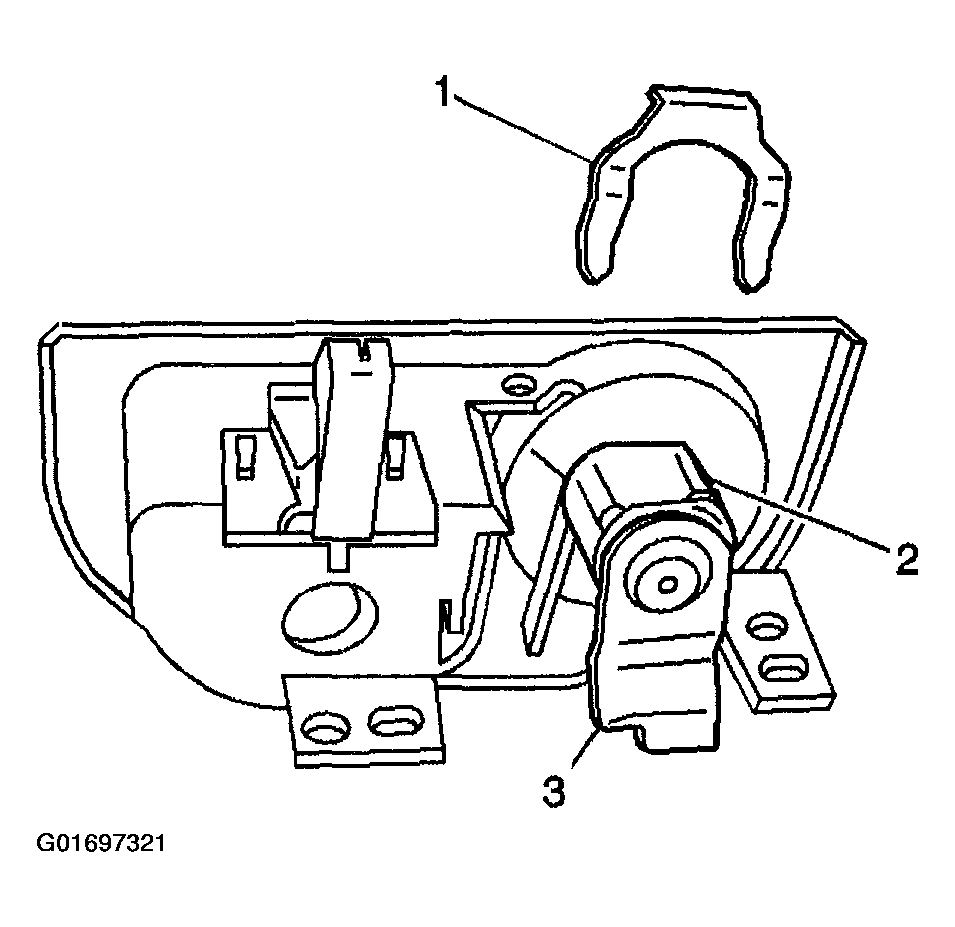

    3. Fig 1: Installing Lock Cylinder Retaining Clip & Latch Assembly
    G01697321Courtesy of GENERAL MOTORS CORP.
  3. Ensure the linkage for the top compartment door are all connected before installing the inside panel.
  4. Install the inside panel.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the 11 screws. Tighten the screws to 1.6 N.m (14 lbs in).

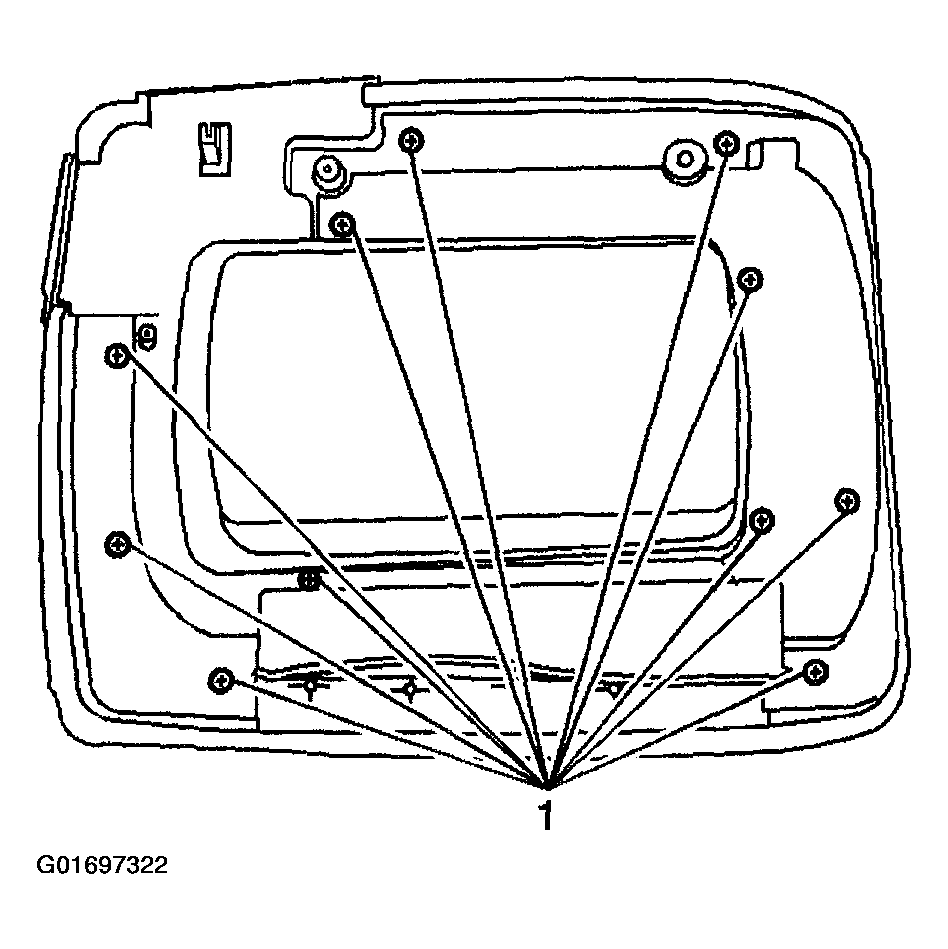

    6. Fig 2: Installing 11 Lock Cylinder Retaining Screws
    G01697322Courtesy of GENERAL MOTORS CORP.
  6. Inspect the operation of the top compartment door.
  7. Install the compartment door to the console. Refer to Door Replacement - Console Compartment
